Designed For Late Big Ford Housing End Truck Applications
• 1999-2006 Chevy Silverado 1500
• 1999-2006 GMC Sierra 1500
Optimized for Street & Track Use
Provides much greater bending strength while remaining flexible
Compatibility
Only fits Strange H1137T late big Ford truck housing ends

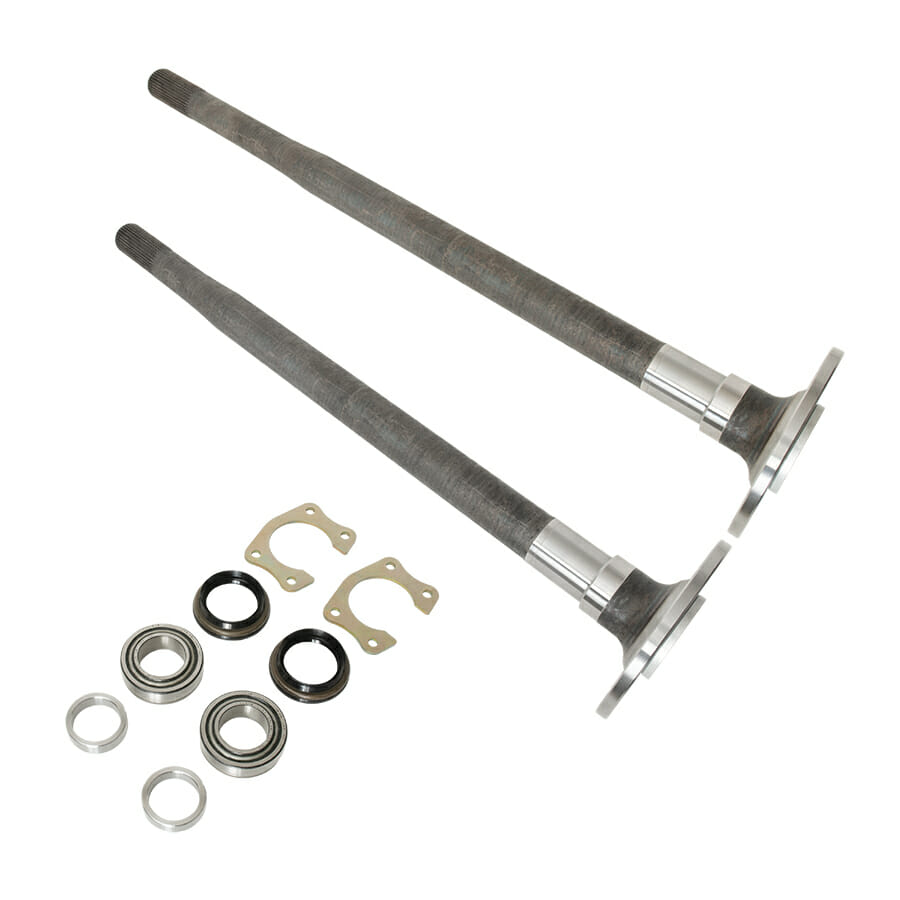

Alloy 35 Spline Truck Axles
• Forged from modified 1550 premium steel

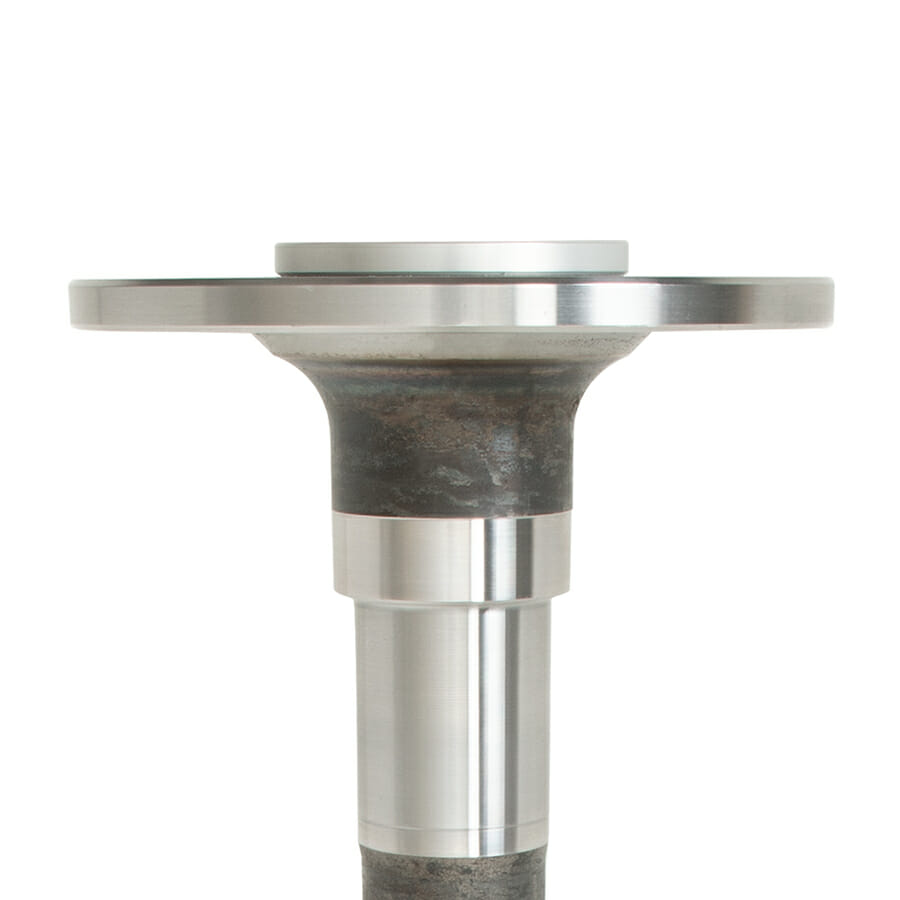

• Larger O.D. axle flange accepts 5 1/2″ bolt circle
• 1.7735″ bearing area increases load capacity

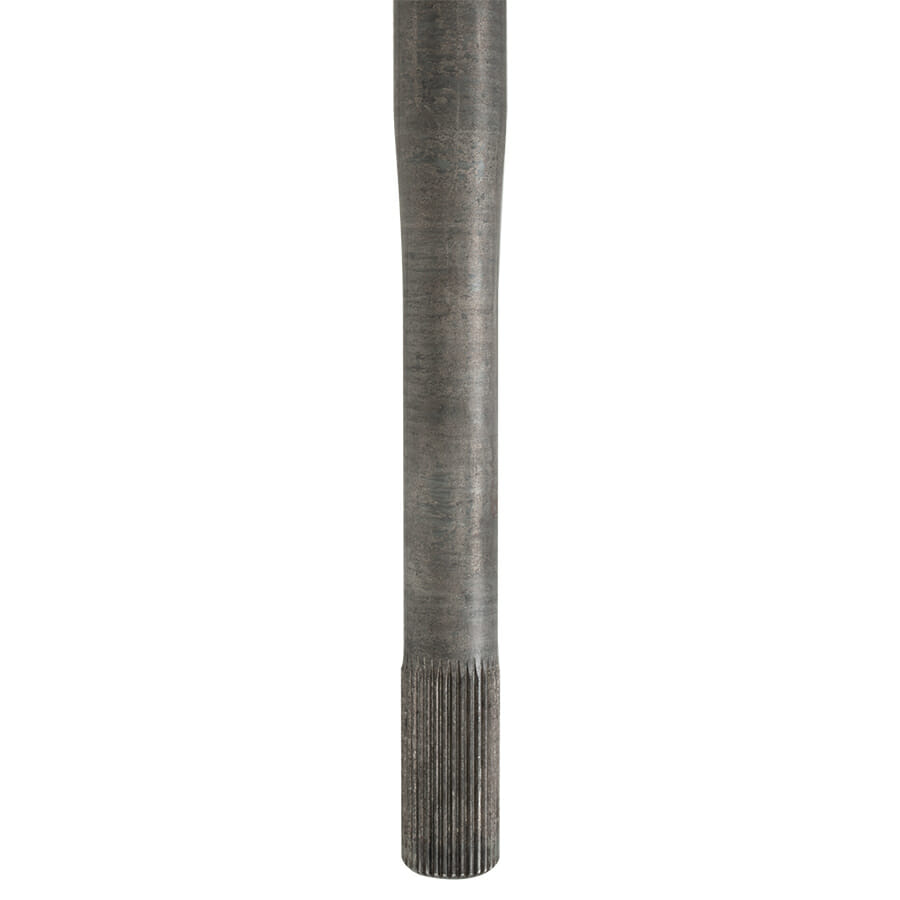

• Shaft design increases strength & reduces flex
• Majority of machining performed before heat treat
• Provides consistent material hardness
• Induction hardened to Rc 53-58
• Increases torsional strength while remaining ductile
• Finish machined after heat treat to ensure trueness
• Choice of bolt circle
• Designed and machined by Strange Engineering
5 on 4 3/4″ Bolt Circle
With choice of press-in 1/2″-20 studs – A3121 / A3151 / A3162
5 on 4 3/4″, 5″ or 5 1/2″ Bolt Circle
With screw-in 1/2″ studs – 2″ or 3″ long *
6 on 5 1/2″ Bolt Circle
With press-in 14mm studs – A3134
6 on 5 1/2″ Bolt Circle
With screw-in 1/2″ studs – 2″ or 3″ long *
* Length measured from underneath the hex of the stud
Unit Bearings / Locking Collars / Seals – A1100E / A2000C / A1100I
• For Strange Late Big Ford Truck housing ends – H1137T
• Provides extended use and high mileage capabilities
• Includes locking collars & outer seals
Axle Bearing Retainer Plates* – A1018
• Heavy Duty C shape design
• Can be installed / removed without disturbing axle bearing
* Not required for most aftermarket disc brake kits – See P3502T
Labor Options
Install axle bearings – A1008R
Access hole or extra bolt circle – A1004
Install new in-stock brake kit – B1600I
Optional 5 Lug Brake Kits
11″ drum brakes – B1606
11″ disc brakes – B2709WC
12.19″ disc brakes – B2708WC
Optional 6 Lug Brake Kits
11″ disc brakes – B2709WC6
12.19″ disc brakes – B2708WC6
