Strut Adjustable Cup Kit
Includes Height Adjustment Tools

$895.00

Part Number: S3403-RJ


Designed Specifically For Drag Racing

For Strange Ultra and Aluminum Struts
Designed & manufactured by Quarter-Max®
Quarter-Max YouTube Video

Provides quick adjustments to ride height without adjusting coil springs
Allows easy starting line changes while leaving extension strut stroke unaffected

Beneficial for drag and drive applications to provide more ground clearance for street driving

Weight transfer tuning aid adjusts extension stroke without changing ride height
Lowering spring seat and lowering strut cup increases extension stroke while maintaining ride height

1.5″ range of ride height adjustment

Spherical bearing allows resistance free movement throughout suspension travel

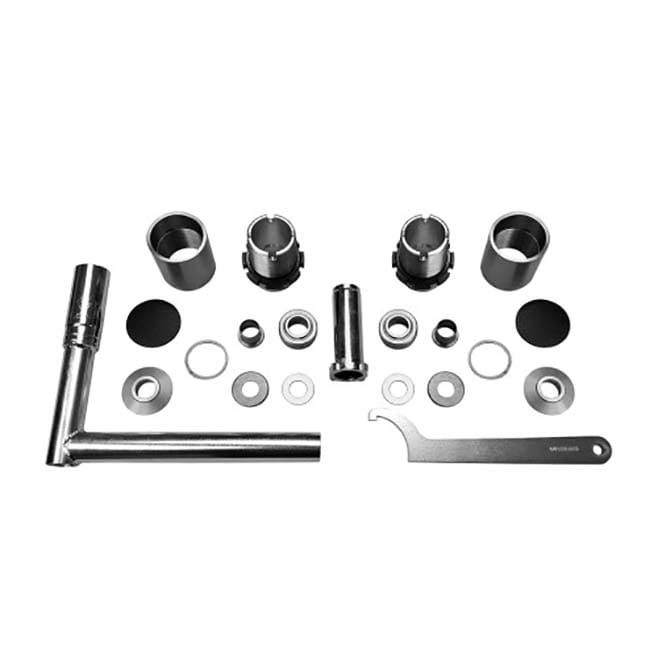

Includes
• Billet 4130 steel 2.375″ tall outer cup weld bungs
• Billet 4130 steel threaded inner cup mounts – Standard length
• Spanner lock nuts
• Spherical bearings & retainer rings
• 5/8″ safety washers & AN washers
• Thrust bearing spacers
• Bearing reducer sleeves
• Inner cup adjustment tool
• Spanner wrench
• 15/16″ strut cup socket tool
• Top dust caps


Description

Strut adjustable cup kit
