Design
Provides front wheel speed information to data acquisition systems
Allows comparisons between front and rear wheel speed
To be mounted on right hand side of vehicle
For B4146WC / B4146WC2 / B4146WCE &
B4152WC / B4152WC2 / B4152WCE
brake kits – See B4200K-3
Requires
Caliper mount with 3/8″-24 hole for sensor

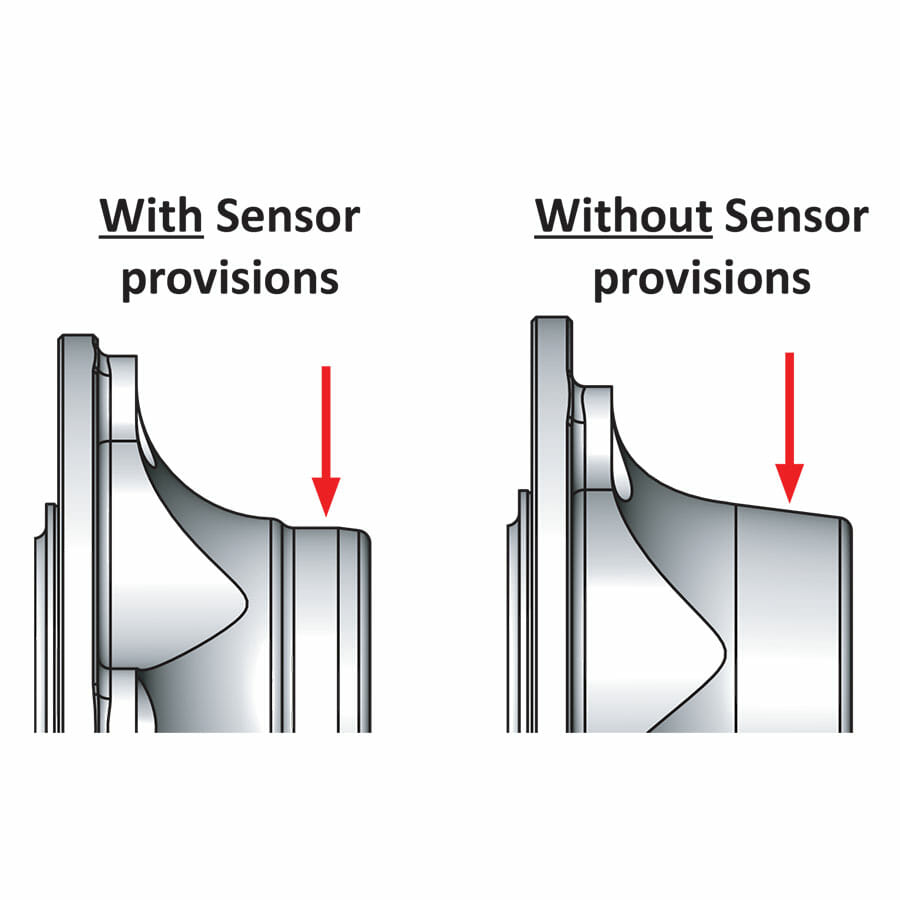

Newer style hub designed to accept Trigger wheel – See diagram

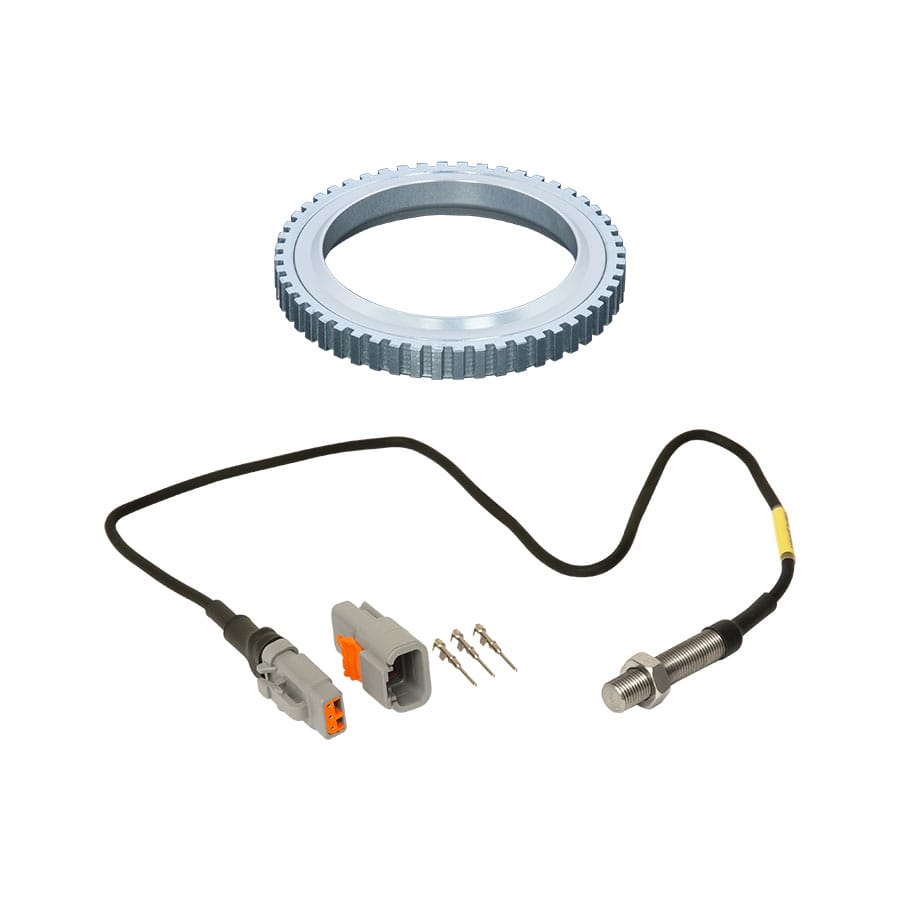

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle & pins
Trigger Wheel
• High resolution 52 tooth trigger wheel
• Plated for corrosion resistance
• Hub adapter ring – Preinstalled
• Press fits onto newer Strange front hubs
See Instruction Sheet For More Detailed Information
