Designed Specifically For Drag Racing
For These Spindle Mount Brake Kits
B4500WC / B4500WC2
B4595WC
B4596WC / B4596WC2
B4597WC / B4597WC2
B4598WC
B4600WC / B4600WC2
C4502WC
C4690WC
C4694WC
C4698WC
Design
Provides front wheel speed information to data acquisition systems
Allows comparisons between front and rear wheel speed
To be mounted on right hand side of vehicle
Ensure Caliper Mount Has 3/8″-24 Hole
Sensor kit with new RH caliper mount – B4200-K2

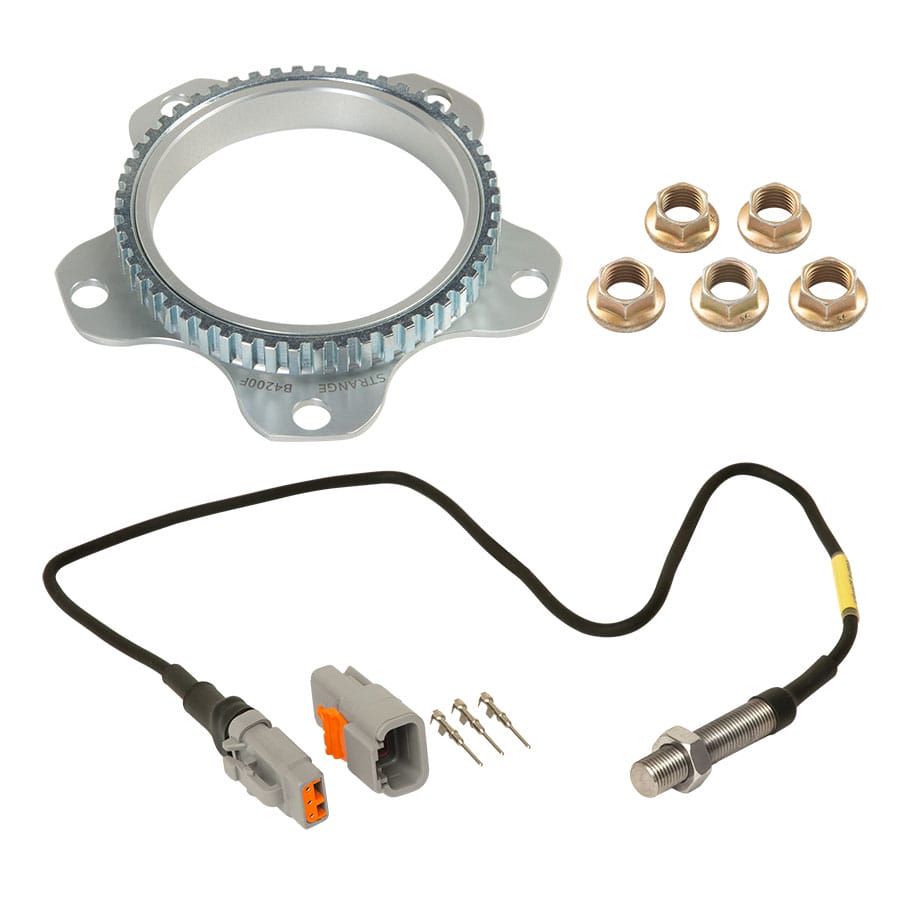

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle & pins
Trigger Wheel & Adapter Plate Assembly
• High resolution 52 tooth trigger wheel
• Plated for corrosion resistance
• Billet aluminum adapter plate
• 3/8″ holes on 4 3/4″ B.C.
See Instruction Sheet For More Detailed Information
Not Familiar With Deutch Connectors ?
Watch This Video
Using Holley® EFI ?
Watch This Video Provided By Devin Vanderhoof
