Designed Specifically For Drag Racing
For These Heavy Duty 4 Piston Front Brake Kits
B4146WC / B4146WC2 / B4146WCE
B4152WC / B4152WC2 / B4152WCE
For These Evolution Spindle Mount Brake Kits
B4500WCE / B4597WCE / B4600WCE
Design
Provides front wheel speed information to data acquisition systems
Allows comparisons between front and rear wheel speed
To be mounted on right hand side of vehicle
B4146 & B4152 Series Brake Kits
Requires caliper mount with 3/8″-24 hole for sensor
Newer style hub designed to accept trigger wheel – See diagram
Evolution Spindle Mount Brake Kits
Direct Drive Mount has provision for trigger wheel

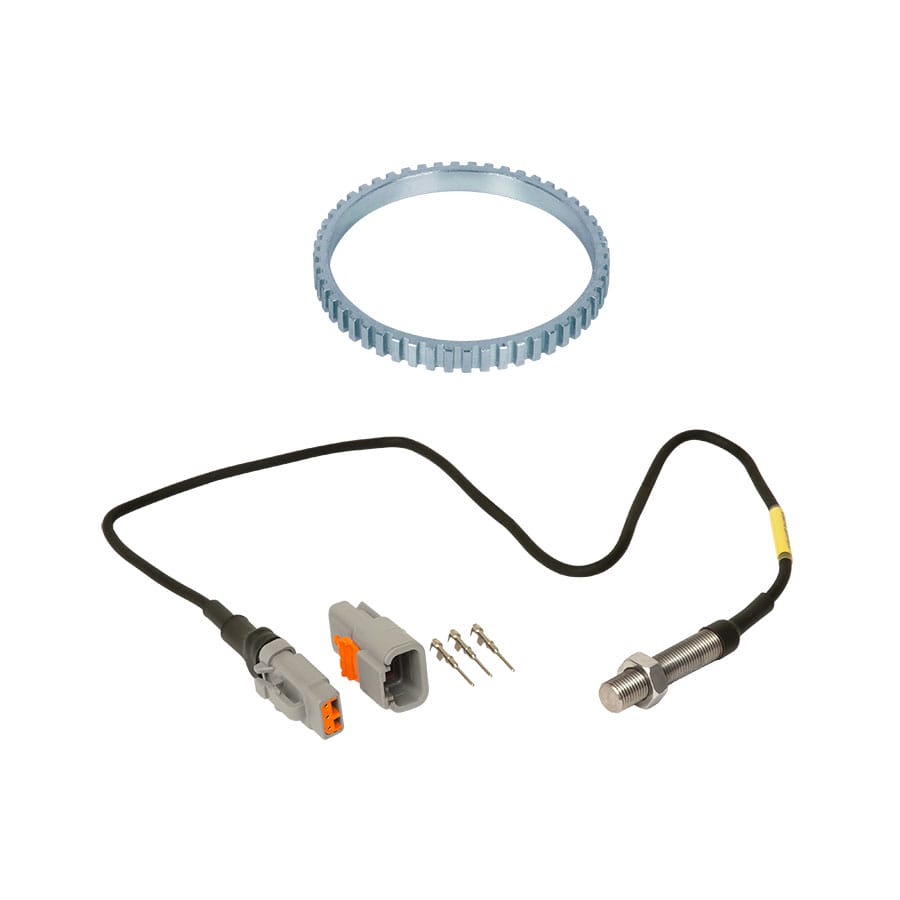

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle & pins
Trigger Wheel
• High resolution 52 tooth trigger wheel
• Plated for corrosion resistance
• Press fit installation
See Instruction Sheet For More Detailed Information
Not Familiar With Deutch Connectors ?
Watch This Video
Using Holley® EFI ?
Watch This Video Provided By Devin Vanderhoof
