Designed Specifically For Drag Racing
Application
Pro Stock / Pro Mod
Fits Specific Wheels
Weld® 15″ x 3.5″ 4 1/2″ B.C. wheels with 2.25″ backspace
Features
Compact design suits low profile body styles
Integral body & spindle allows piston to travel below spindle center-line
Provides additional stroke in a confined space and greater shaft stability
Ability to tune each direction of travel in the front suspension
Two external adjusters offer individual control for rate of extension & compression

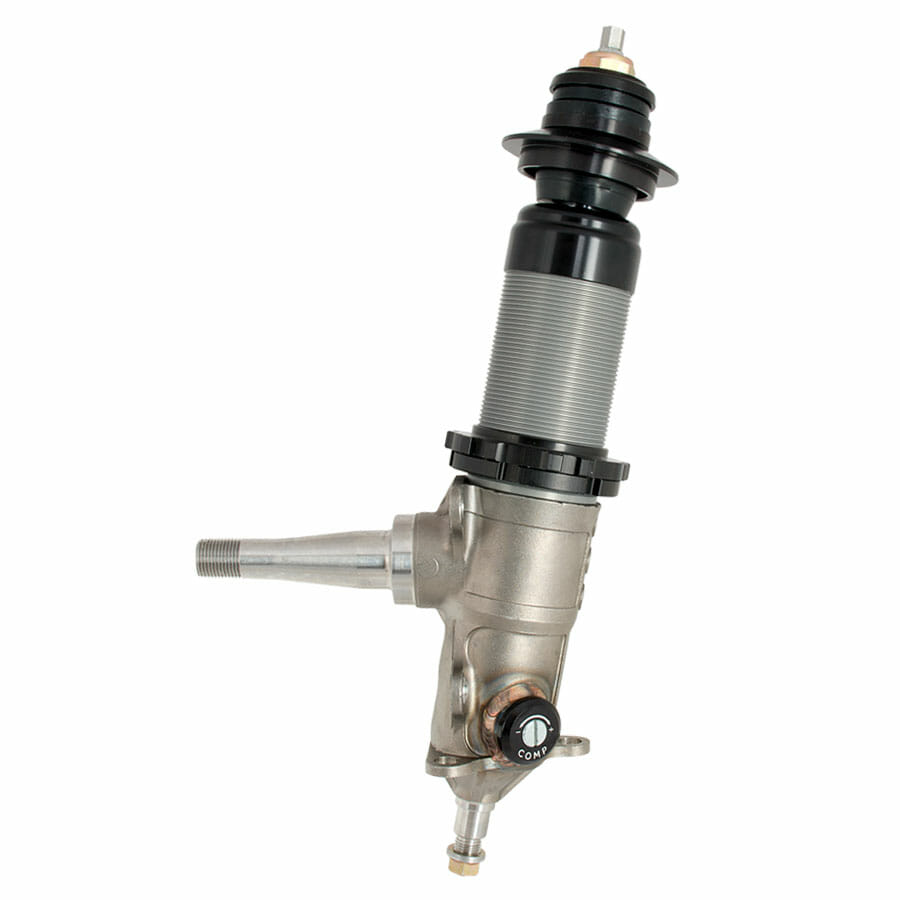

Stud Mount Ultra Struts
• Stainless steel heat treated bodies – Made in USA
• Separate adjustments for extension & compression rate
• Valved specifically for high horsepower vehicles
• Custom valving available
• Choice of 2.50″ or 3.50″ stroke
• 1″ internal travel limiter available on request
• Designed, machined, & assembled by Strange Engineering
Top Spring Seats
• Encased Torrington® bearings
• Reduces steering friction
• Allows height adjustments without springs binding
Billet Aluminum Steering Arms
• Provides stiffness while remaining lightweight
• Includes chrome moly rod ends for outer tie-rods
Timken® Bearings & Races
• Supplied to adapt Anglia style wheels
• Includes oil seals, washers, cotter pins, and spindle nuts
Lower Control Arm Fabrication Kit – S3418 / S3419
• Semi-finished TIG Welded 4130 lower control arms
• Inner tubing adapters
• Teflon® lined spherical ball LCA bearings
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• NAS bolts, Flanged locking nuts, & 3AN washers
Hyperco Springs (Blue) / Eibach Springs (Red or Silver)
• Chrome silicone steel
• Powder coated for corrosion resistance
• Choice of spring rate
Spring Manufacturer Dependent on Availability
If manufacturer or color is important, please specify
Not all rates are available in all three colors

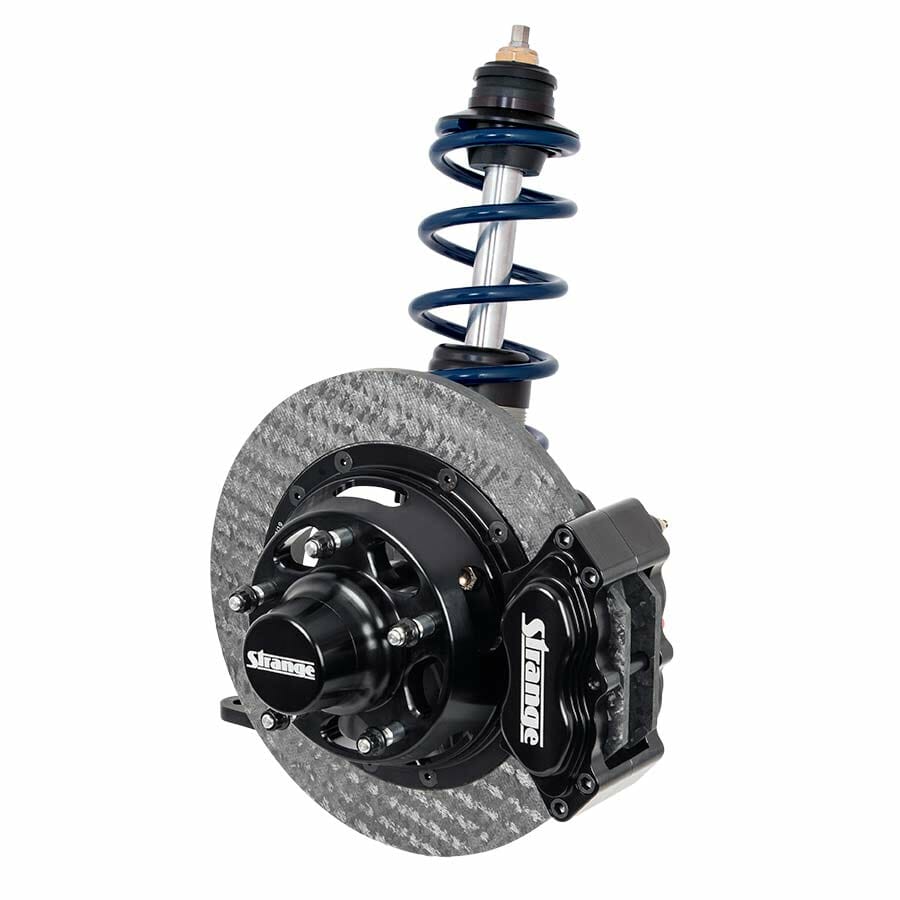

Four Piston Low Drag Carbon Brake Kit – C4700WC *
• 11″ carbon rotors
• Billet aluminum hubs with integral rotor mounts
• Four piston billet aluminum calipers with retracting insulated pistons
• Carbon brake pads
• Billet aluminum caliper mounts
• Provides increased starting line holding power while reducing friction
* See Brake Kit For More Information
Brake Hoses And Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Selecting Stroke
3.50″
Provides the most weight transfer
2.50″
3.50″ with 1″ internal travel limiter
When the taller body is preferred, but with less stroke
2.50″
The most compact version of this strut
Recommended Spring Rates
Front Wt – Spring Rate
1,100 lbs – 200 lbs
1,200 lbs – 200 to 225 lbs
1,300 lbs – 225 to 250 lbs
1,400 lbs – 250 to 275 lbs
Consult Your Chassis Builder For Stroke & Spring Rate
Related
Strut adjustable cup kit – S3403-RJ
For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle
