Applications
1973 to 1987 C10 / K10 Truck
1973 to 1991 Blazer / Suburban
OEM mount locations
Factory 1/2″ pinion offset to the passenger side
Will Not Fit OEM Brakes
Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded and assembled
Crated to protect your investment
Assembly Includes

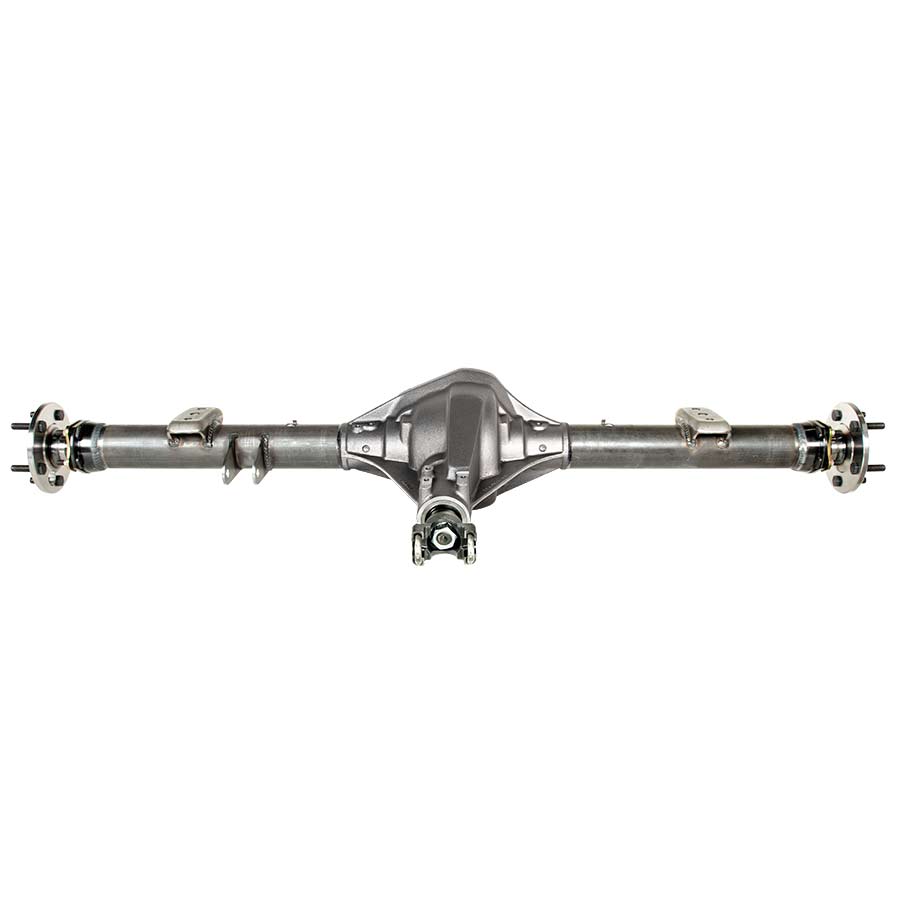

S60 housing with mounts installed – H60T73C10ME
35 spline Pro Race Axle Package – P1007 / P1008
4 1/2″, 4 3/4″, or 5″ bolt circle
Choice of wheel stud kit – A1025 / A1026
35 spline L/W spool – D1547 / D1548
Standard gear set
Choice of gear ratio
S-Series pinion yoke – U1600
Pinion yoke u-bolt kit – U1610
Dana / Spicer steel cover – D3505
Fully crated – No extra charge
Standard Gear Ratios
3.54 / 3.73 / 4.10 / 4.30 / 4.56 / 4.88 / 5.13 / 5.38
Optional Pro Gear Ratios
4.10 / 4.56 / 4.88 / 5.38 / 6.17
Upgrades
5/8″ stud kit – OPRS14
Chrome moly yoke – OPRS18
Pro Gear – OPRS22
LPW aluminum cover – OPRS06
Strange aluminum cover – OPRS08
Black powder coat housing – H1199P-BLK
Option
Supply 2 qts Lucas gear oil – OPGL2Q
