Applications
1988 to 1998 Chevy C1500 & K1500
1992 to 1994 Full Size Blazer
1995 to 1999 Tahoe & Suburban
OEM mount locations
Factory 1/2″ pinion offset to the passenger side
NOTES:
Will not fit OEM brakes

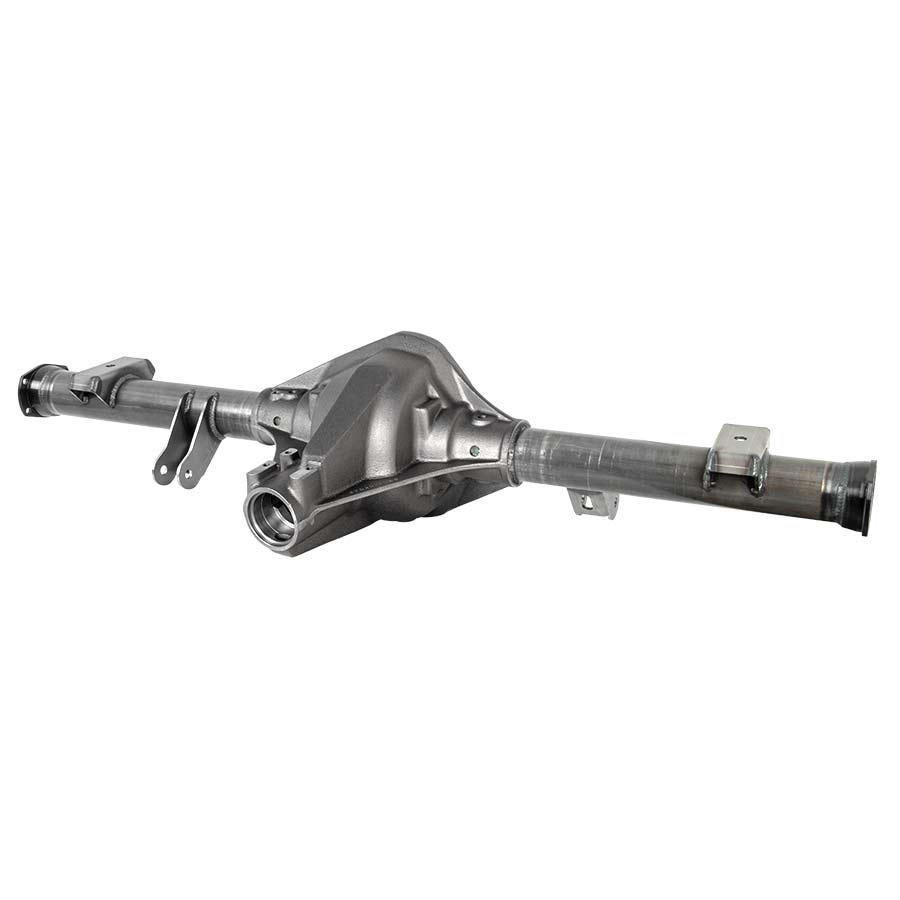

Description
S60 housing
Includes tubes, mounts, & choice of housing ends
Information Required
Housing ends
Housing width with ends installed
Features
Nodular Iron Center – H1109A
• Premium nodular iron casting
• Nodular iron main caps
• Adjuster nuts eliminate side bearing shims
• Greatly simplifies gear changes
• Drain plug
• Accepts Dana 60 internal components *
* Uses different side bearing races
Tubing – H1139
• Seamless DOM mild steel
• 3″ OD x .250″wall
• Brake line tabs
Truck Mounts
• HD mild steel construction
Housing Ends
• Forged steel
• Choice of Strange ends
Housing Width
• Custom widths – No additional charge
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes plug & 360° welded to casting
• Eliminates tube rotation issues
Related Components
Adjuster nut wrench…………….. H1109D
Powder coat housing…………. H1199P-BLK
Steel cover…………………………….. D3505
Strange aluminum cover……….. D3517
LPW HD aluminum cover………. D3509
Cover gasket…………………… D3508 / D3508F
Gear install kit……………………….. D3512
Alloy Axle Packages
35 spline………………………….. P3504 / P350458
35 spline with spool……….. P3504S / P350458S
Pro Race Packages
35 spline with spool…………. P2005 / P200558
40 spline with spool…………. P2017 / P2015
