Applications
AMC
1956-1978 Ambassador / Matador
1968-1974 AMX / Javelin
1956-1978 Rambler / Rebel
Ford / Mercury
1971-1982 Custom / Custom 500
1971-1982 Galaxy 500
1971-1982 LTD / LTD II
1971-1982 Marquis
1971-1974 Monterey
1965-1971 Thunderbird
GM
Buick
1964-1969 Skylark Sport Wagon
1964-1969 Special Estate Wagon
Chevy
1955-1957 Chevy Car
1950-1955 Chevy Truck – Advanced Design
1950-1954 GMC Truck – New Design
Oldsmobile
1964-1972 F85 / Cutlass / 442
Description

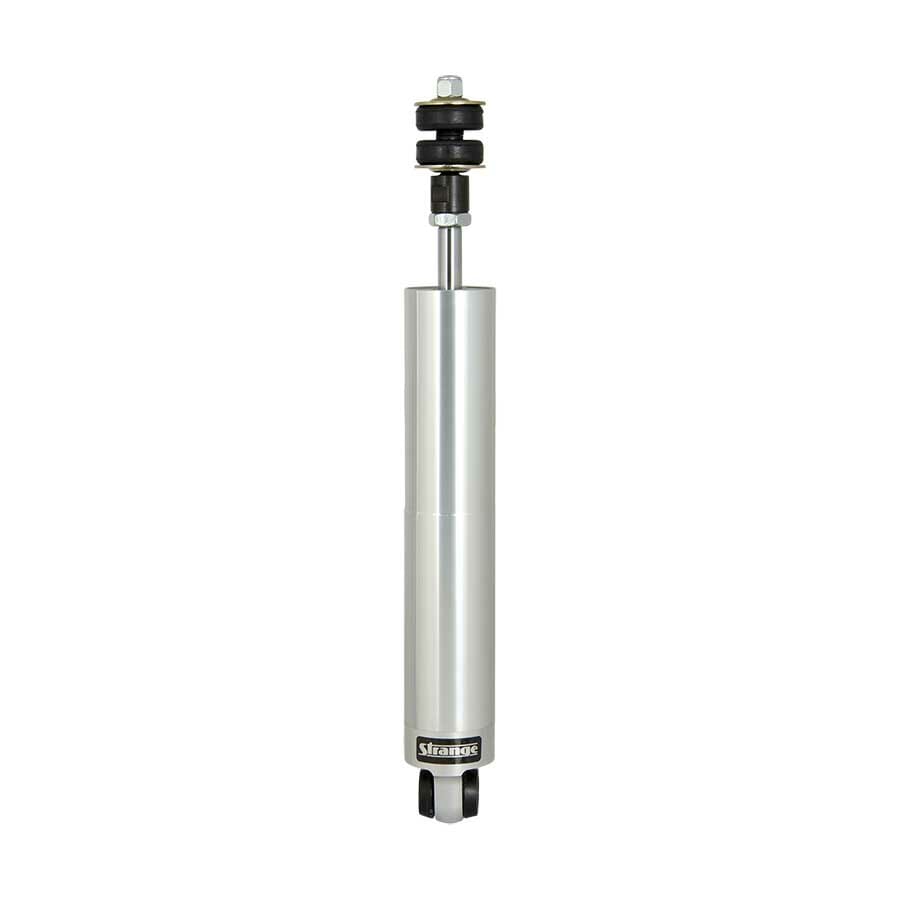

Single Adjustable Aluminum Shock
Rear – Sold as each
Soft Settings
For Drag Racing
Allows more downward force applied to the rear tires
Medium Settings
For Performance Street
Enhances handling & cornering characteristics
Stiff Settings
For Road Racing
Provides very aggressive control over body roll
Rotating Knob Clockwise Stiffens Valving
Dimension A
Extended 20.09″ / Compressed 12.88″
Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower polyurethane bushing
– Steel inner sleeve
Related Components
Double adjustable……………… S5072
Front Shock
Single adjustable……………… S5267
