Application
1967 Camaro / Firebird / Trans Am
With Non-Staggered Shocks
Description

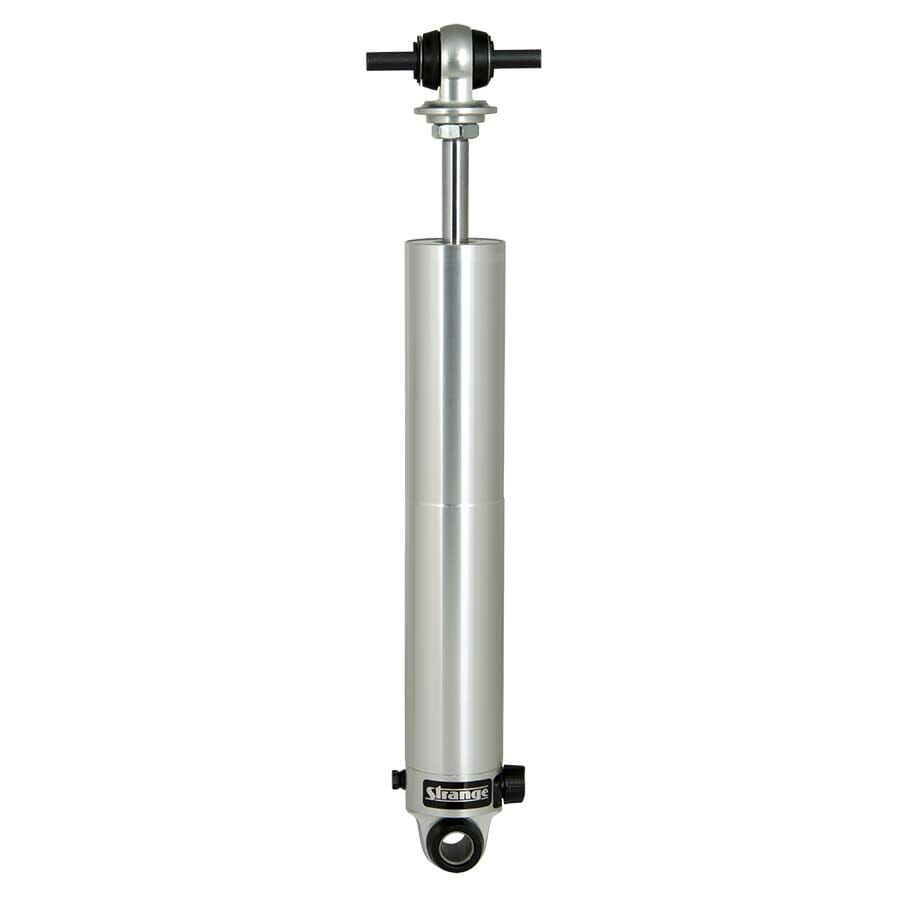

Double Adjustable Aluminum Shock
Rear – Sold as each
Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height
Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Rotating Knob Clockwise Stiffens Valving
Dimension A
Extended 22.24″ / Compressed 14.2″
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper & lower polyurethane bushings
– Upper heavy duty t-bar
– Lower steel sleeve
Related Components
With Staggered Shocks
Single adjustable…………….. S5270
Double adjustable…………….. S5070
Front Shock
Single adjustable…………….. S5263
Double adjustable…………….. S5063
