Application
Pro Touring & Street / Track vehicles
Requirements
Housing with 3″ or 3 1/4″ OD tubing

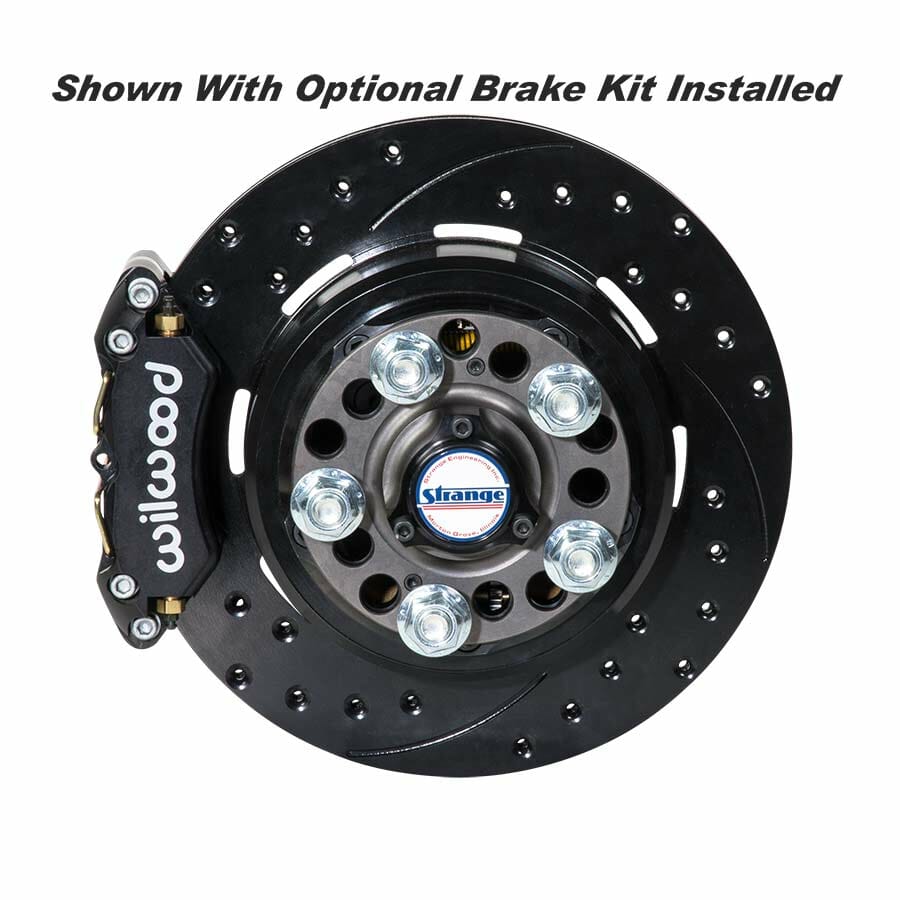

Strange / Wilwood custom Pro Touring brake kit
Custom floater axles with crowned outer 24 splines
Benefits
Simplifies Housing Construction
• Allows weld-ends to be directly aligned with carrier center-line
• Independent spindles available in 0.5°, 1.0°, 1.5° & 2.0° negative camber
• Individual toe plates in 0″, 1/16″, or 1/8″ per side (0, 1/8″, or 1/4″ total)
Versatility
• Easily alter configuration
• Replace bolt-on spindles or plates to change camber or toe
Safety
• Vehicle weight and side loads are supported by the housing
• Axle shafts only requirement is to transfer torque
• Prevents the possibility of axle flange breakage
Performance
• Each hub is supported by two large tapered bearings
• Drastically increasing load capacity & wheel bearing life
• Solid spacer ensures proper bearing preload
• Eliminates excessive end play
• Prevents piston knock-back
• Pedal travel remains consistent during hard cornering
Includes

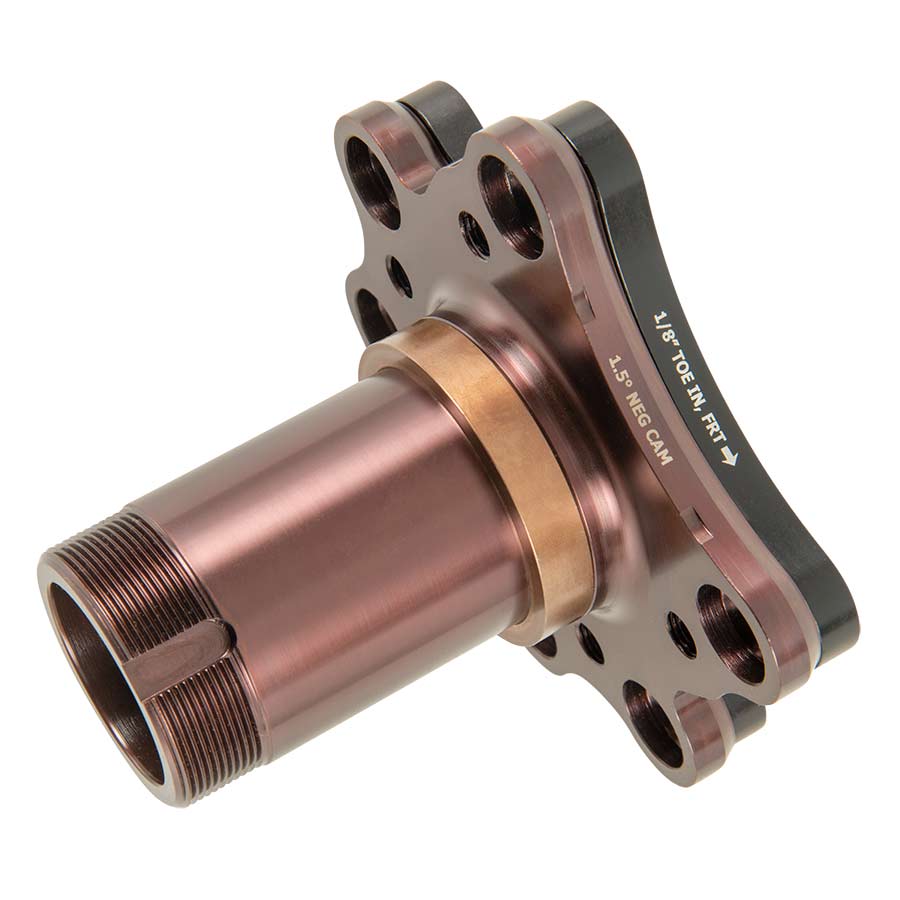

2″ OD Floater Spindles
– 4130 steel
– Provides rigid support for hubs & bearings
– Designed for 3″ or 3 1/4″ OD housing tubing
– 2.800″ OD tube end *
* Requires finish turning to suit axle tube ID
Steel Hubs
– Machined for 4 1/2″, 4 3/4″, & 5″ bolt circles
– Accepts Pro Touring 1/2″ or 5/8″ wheel studs
Notes
Kit comes standard with 1/2″ wheel studs
5/8″ studs can be substituted for an additional charge
Steel Drive plates
– Designed for crowned 24 spline 300M axles
– Inner axle splines can be made to suit other differentials
Timken® Tapered Bearings & Races
– Premium components from a trusted name
– Ensures proper fit & long bearing life
Solid Preload Spacer
– Prevents excessive preload
– Maintains consistency during hard cornering
Spindle Nut Wrench
– Properly mates to spindle nut
– Allows use of torque wrench
– Prevents spindle nut damage
ABS Option
Can be ordered to utilize 05-10 or 11-14 Mustang ABS systems
Option supplies custom reluctor rings & mounting parts
Please specify year of system
Options
Upgrade to 5/8″ wheel studs……… OPRS13
Supply with custom ABS rings……. OPAX10
Labor
Install spindles in housing…………. H1130SF
Related Components
300M Axles – Sold as each
20″ or less ……………………………….. A5200M20
20 1/8″ to 24″……………………………. A5200M24
24 1/8″ to 28″……………………………. A5200M28
28 1/8″ to 32″……………………………. A5200M32
32 1/8″ to 36″……………………………. A5200M36

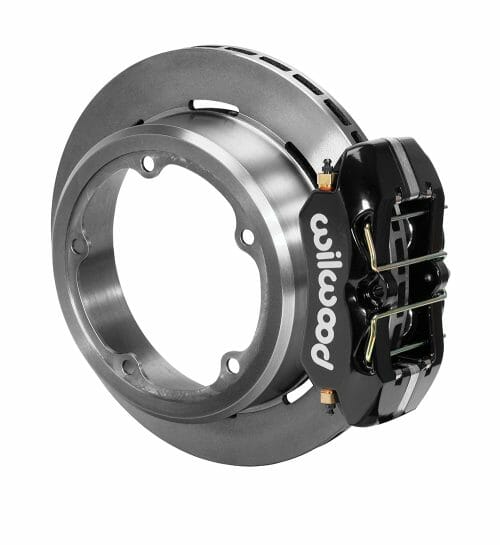

Strange / Wilwood Brake Kits
Note: All Kits Require Backing Plate Modification – See Floater kit instructions
11″ rotors & black calipers …………….. B2712WC *
12.19″ rotors & black calipers …………. B2711WC
12.19″ rotors & red calipers ……………. B2711WCR
14″ rotors & black calipers …………….. B2714WC
14″ rotors & red calipers ……………….. B2714WCR
* Provides clearance necessary for 15″ bead-lock wheels
