Applications
Mopar – Front
1964-1974 Barracuda
1962-1972 Belvedere / Satellite
1970-1974 Challenger
1965-1972 Charger / Coronet
1962-1976 Dart / Demon / Swinger
1960-1976 Duster / Valiant / Scamp
1961-1962 Lancer
1968-1972 Road Runner
Description

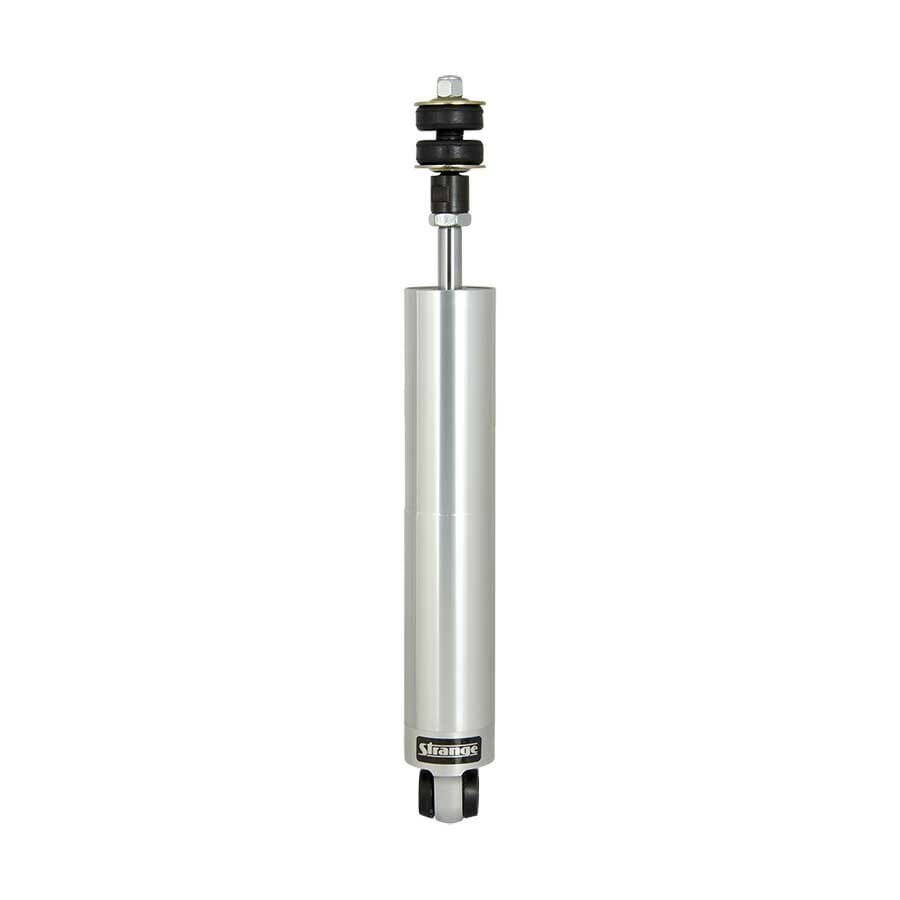

High Performance Bolt-In Shock
Front – Sold as each
Soft Settings
For Drag Racing
Allows weight transfer to increase traction
Medium Settings
For Performance Street
Enhances handling & cornering characteristics
Stiff Settings
For Road Racing
Provides very aggressive control over body roll
Rotating Knob Clockwise Stiffens Valving
Dimension A
Extended 14.97″ / Compressed 10.34″
Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper stud with rubber cushions
– Concave washers & lock nut
– Lower polyurethane bushing
– Steel inner sleeve
Related Components
Front Shock
Double adjustable……….. S5081
Rear Shock
Single adjustable……….. S5282
Double adjustable……….. S5082
