Designed Specifically For Drag Racing

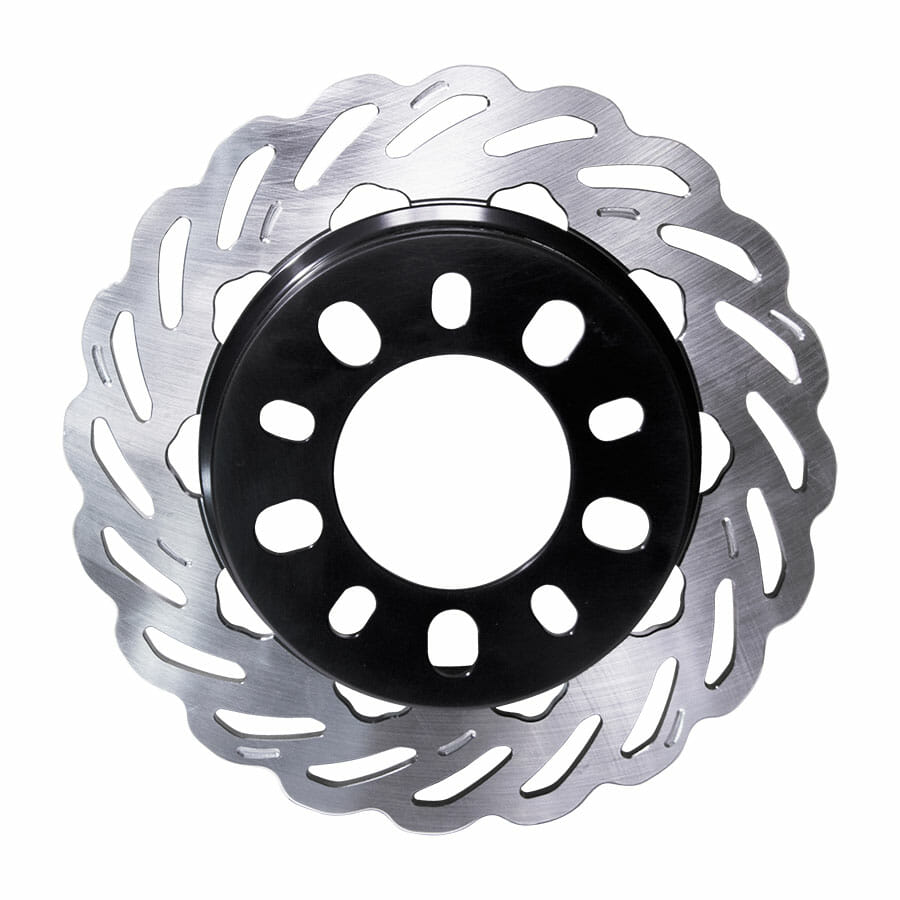

Evolution S DDM 11 1/4″ Stainless Steel Rotor – Left Hand Side
Replacement for Strange Evolution Dynamic Drive front & rear brake kits
Also as an upgrade for other Strange four piston steel brake kits
Evolution S Dynamic Drive Mount Stainless Steel Rotor
• Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retension designs
• DDM system design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250″ O.D. x .355″ thick (Discard at .312″)
DDM Hat Dimensions
6.670″ O.D. x 6.302″ I.D.
.250″ thick face
4 1/2″, 4 3/4″, & 5″ Uni-Lug BC
For 1/2″ & 5/8″ wheel studs
Offset
2.225″ From inside face of hat to inner pad surface
Assembly Weight
5.7 Lbs
Related
Right hand rotor – B2798R
Rear brake pads – B5010 / B5020 / B5022
