For Strange Ultra Case Pinion Support
N1950A / N1950AD / N1953A
With 3/8″-24 sensor holes – N1950A & N1953A manufactured 6/23 and later
With 3/8″-24 sensor holes – N1950AD manufactured 12/23 and later
Fits Strange 35 spline yoke
For 28 spline yoke – See U1613-TUC
Design
Provides driveshaft speed information to data acquisition systems
Offers high resolution due to 40 tooth trigger wheel
Produces smooth and easy to read graphs when comparing to other data

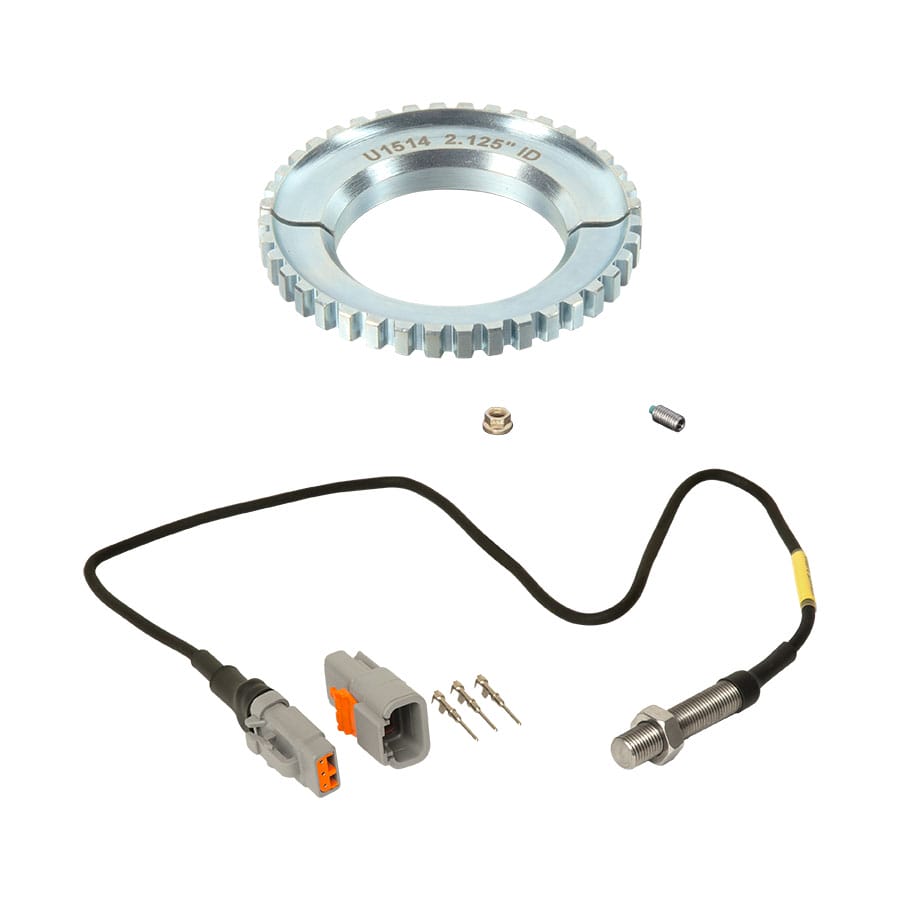

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle with pins
• One jam nut provided with sensor
Trigger Wheel
• High resolution 40 tooth trigger wheel
• Plated for corrosion resistance
• Split design with SHCS bolts
Additional Components
• Nylon tipped stainless steel set screw
• Flanged locking nut
See Instruction Sheet For More Detailed Information
