For Rear Ends Listed Below
• Chevy 12 bolt
• Dana 60 / S60
• Ford 8.8
Fits Strange Chrome Moly Yoke
• Dated 04/15 or later *
• Will not for Strange nodular yoke
• Will not fit OEM or other manufacturer’s yoke

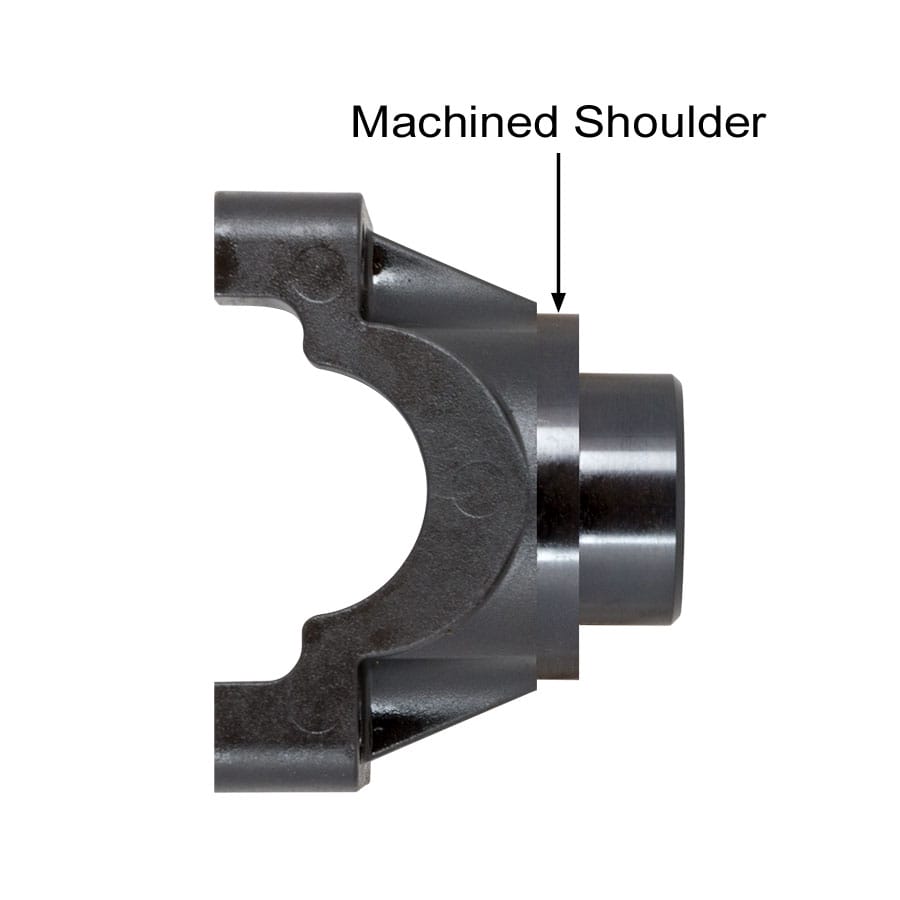

* See diagram for visual reference
Design
Provides driveshaft speed information to data acquisition systems
Offers high resolution due to 40 tooth trigger wheel
Produces smooth and easy to read graphs when comparing to other data

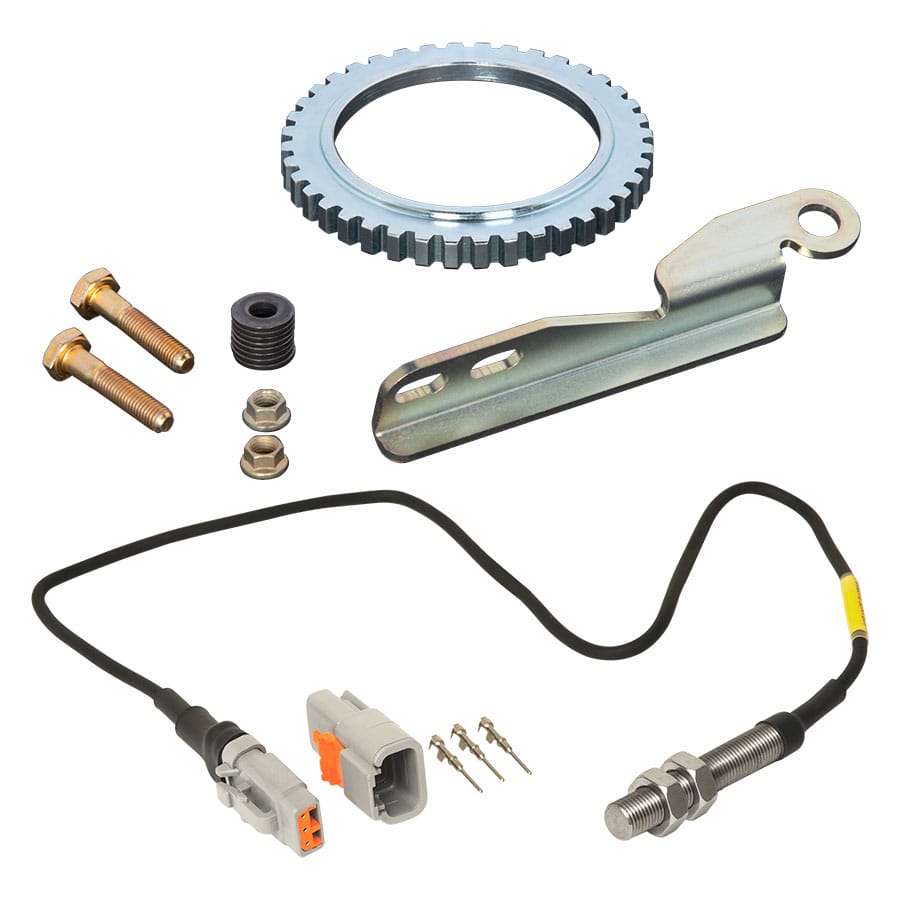

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle with pins
• One jam nut provided with sensor
Trigger Wheel
• High resolution 40 tooth trigger wheel
• Plated for corrosion resistance
• Press fits onto machined shoulder
Sensor Mounting Bracket
• Zinc plated steel resists corrosion
• Mounting bolts, height adjustment washers & flanged lock nuts
• Includes additional sensor jam nut
• Requires drilling holes in casting web
See Instruction Sheet For More Detailed Information
