Application – Dragsters & Altereds
Description

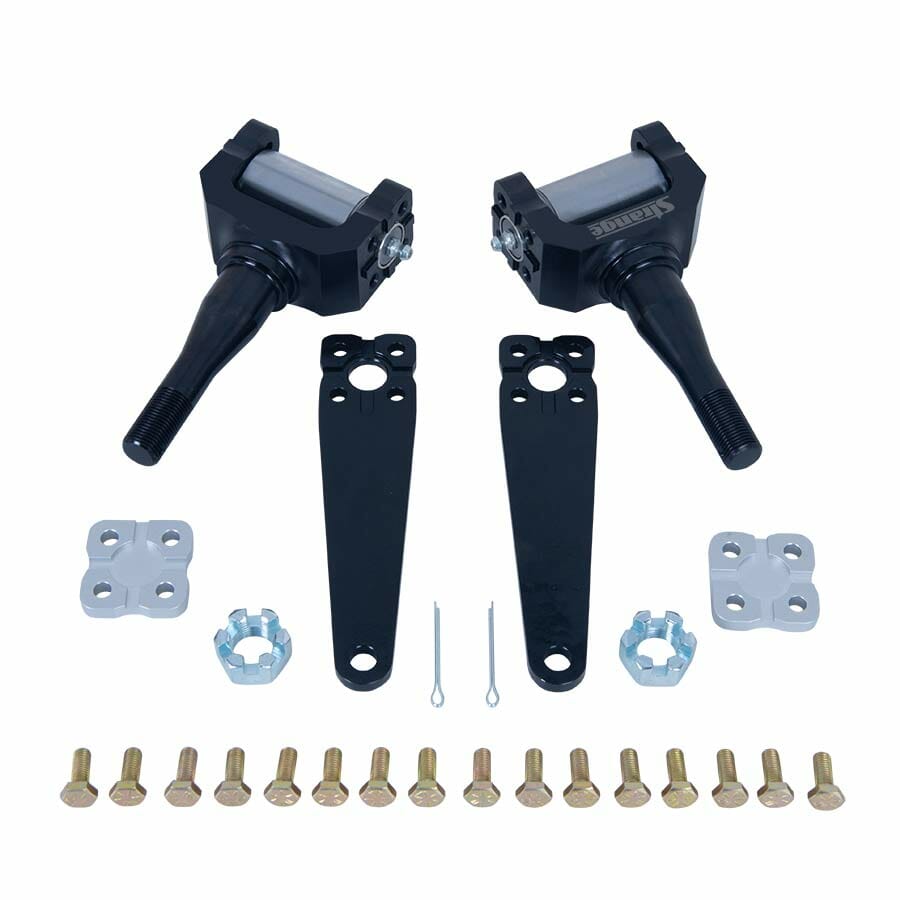

Forged Steel Spindle Kit
Designed for Anglia spindle mount wheels
Features
Spindles
• 4130 forged chrome moly
• 7.5 degree king pin inclination
• 0.624″ OD – Outer bearing surface
• 0.982″ OD – Inner bearing surface
• 1.250″ OD – Seal surface
• Mating lug design for cap & arm
• DU® self-lubricating bushings
• Black oxide finish
• Designed & machined by Strange
• Forged in the USA
King Pins
• 1045 carbon steel
• .687 OD x 3.094″ long
• Bored & ported for lubricant delivery
• Tapped 1/4″-28 for grease fitting
• Machined locking groove
Weld Ends
• 1018 steel
• 2.00″ long
• 1.250″ OD
• 0.688″ bore
• 5/16″-24 set screw
Steering Arms
• ASTM A36 steel
• .375″ bolt hole
• 5″ centers
• Mating lug design
• Black oxide finish
End Caps
• 6061-T6511 aluminum
• Bored for grease fitting access
• Mating lug design
• Clear anodized
Related Components
Spindle kit with tow loops……………… S3453TL
Tow loop……………………………… S3453K
Spindle mount brake kit………………… B4595WC
Adjustable height spindles……………… S3423
