Designed Specifically For Drag Racing
For Hub Mount Wheels
Choice of 4 1/2″ or 4 3/4″ bolt circle
Features
Compact lightweight design sheds front end weight
Allows for maximum control of the front suspension
External independent adjustments for both directions of movement
Double Adjustable Eye Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)

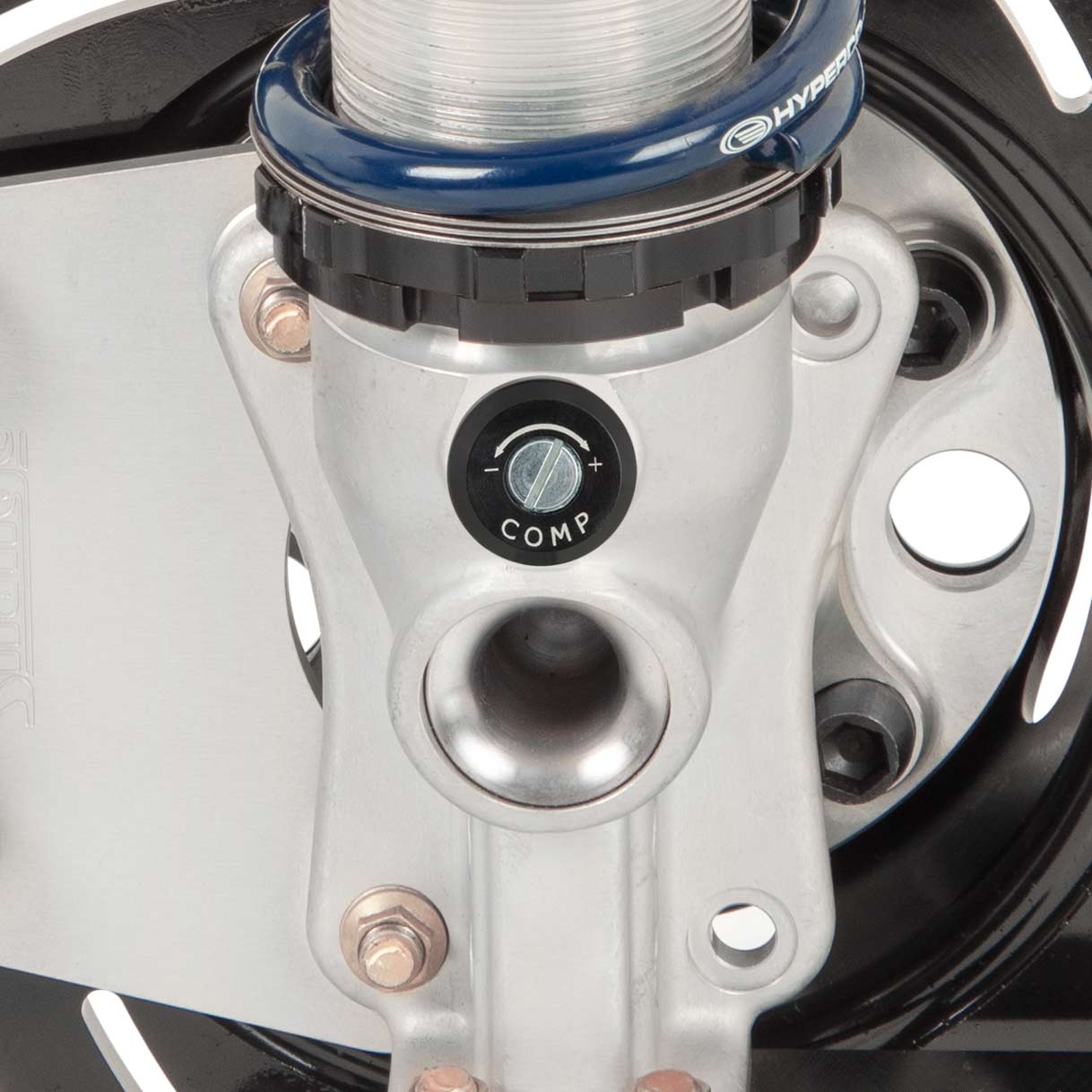

• Separate adjustments for extension & compression rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering
Lower Control Arm Ends – S3750
• 4130 chrome moly
• LH & RH with 45° integral weld bung
• 4130 chrome moly male clevises
• Teflon® lined spherical LCA bearings
• Spirolox® retaining rings
• Grade 8 bolts, flanged locking Jet nuts, & 3AN washers
Lower Control Arm Tube Kit – S3420 / S3421
• 4130 seamless chrome moly tubing
• Teflon® lined chrome moly rod ends with jam nuts
• Choice of ball size to suit 7/16″ or 1/2″ bolts
Hyperco Springs (Blue) / Eibach Springs (Red or Silver)
• Chrome silicone steel
• Powder coated for corrosion resistance
• Choice of spring rate
Spring Manufacturer Dependent on Availability
If manufacturer or color is important, please specify
Not all rates are available in all three colors
Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns
Strange 2 Piston Caliper Brake Kit – B4453WC / B4454WC
• One piece forged slotted steel rotors
• Two piston billet aluminum calipers
• Soft metallic brake pads
• Billet aluminum caliper mounts
• Forged aluminum hubs with lightening holes
• Choice of 4 1/2″ or 4 3/4″ bolt pattern
• Timken bearings and races
• Oil seals
• 1/2″ -20 screw-in wheel studs
• All necessary mounting hardware
Brake Hoses And Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Recommended Spring Rates
Front Wt – Spring Rate
1,100 lbs – 200 lbs
1,200 lbs – 200 to 225 lbs
1,300 lbs – 225 to 250 lbs
1,400 lbs – 250 to 275 lbs
1,500 lbs – 275 to 300 lbs
1,600 lbs – 300 to 325 lbs
Consult Your Chassis Builder For Their Suggestion
For any questions regarding this package
Please contact a Strange Sales Associate to discuss your vehicle
