Application
1965-1970 GM B-Body Vehicles
Impala & Caprice
Description

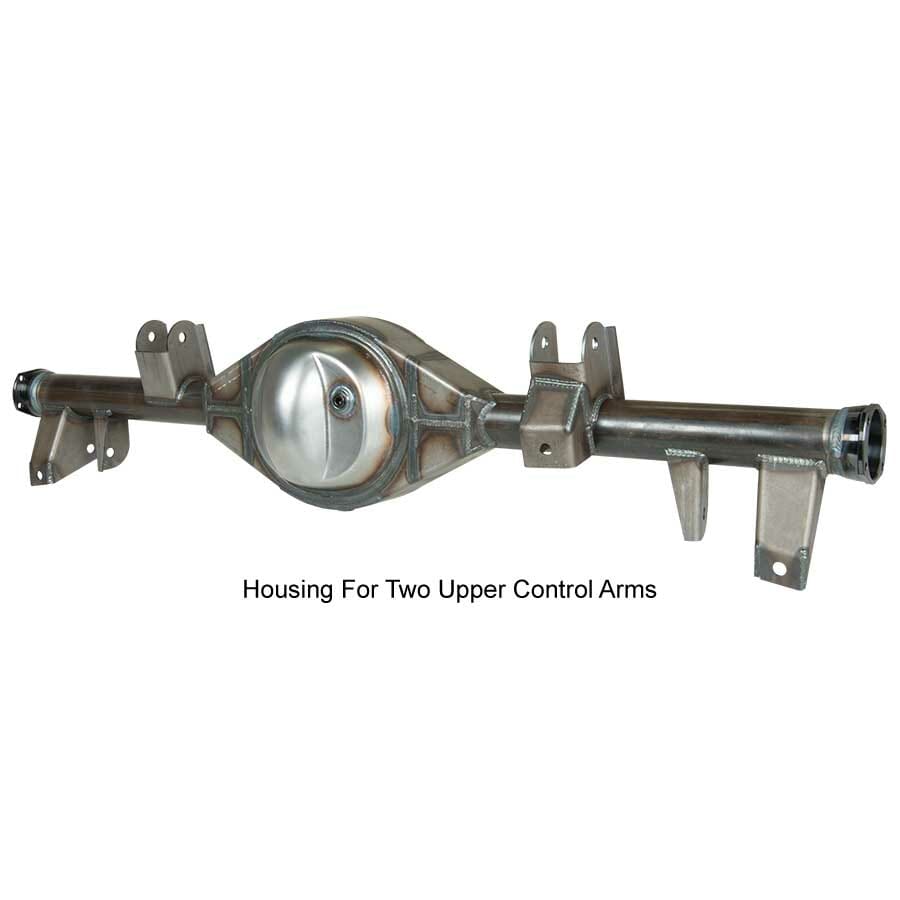

Strange HD Ford 9″ Bolt-in Housing
No additional charge for custom width
Note
Will Not Accept OEM Brakes
Information Required
One or two upper control arm mounts
Housing ends
Housing width
Featuress
Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
Fill & Drain plugs (2) H1117D
• Facilitate fluid changes
Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs
Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity
GM B-Body Mounts
• Heavy duty upper & lower control arm mounts
Housing Ends
• Forged steel
• Choice of Strange end
Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality
Related Components
Gasket………………… H1111S
Axle Packages
Alloy………………. P3102 / P3104
Pro Race………… P1007 / P1008
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
