Application
1959-1964 GM B-Body Vehicles
Impala & Caprice
Description

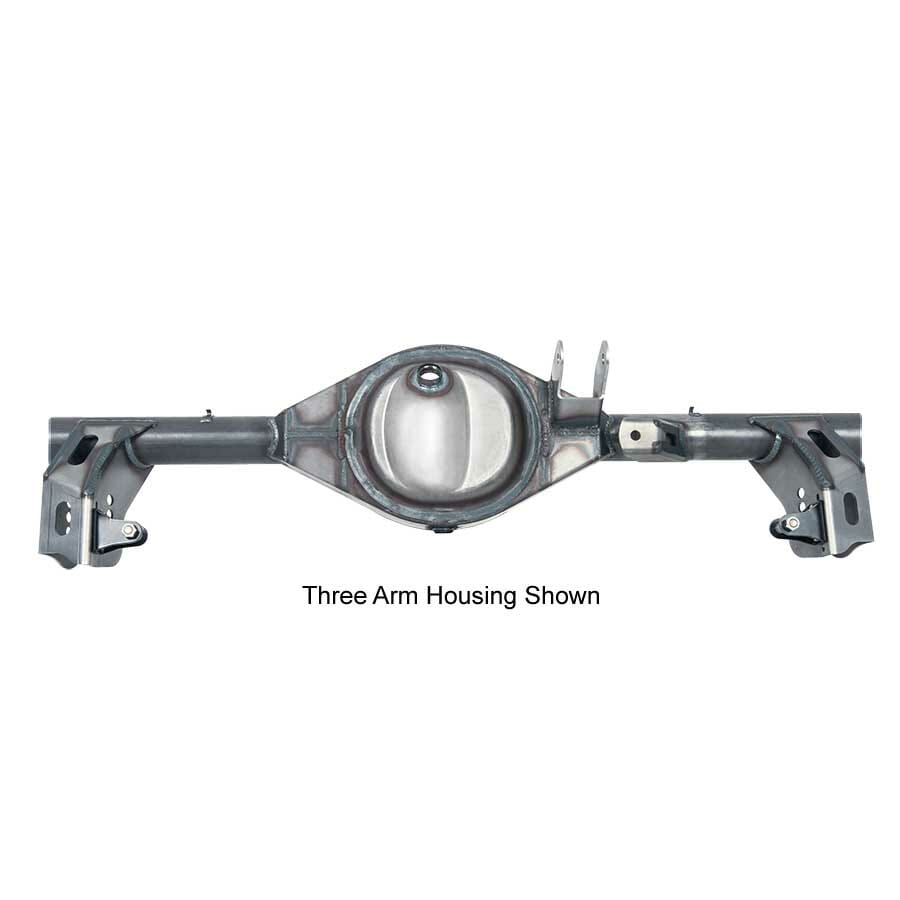

Strange HD Ford 9″ Bolt-in Housing – Less Ends
Perfect base for creation of Pro Touring or Drag Race Floater rear end
Information Required
One or two upper control arms
Housing tube to tube width
Features
Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
Fill & Drain plugs
• Facilitates fluid changes
Tubing – H1139
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs

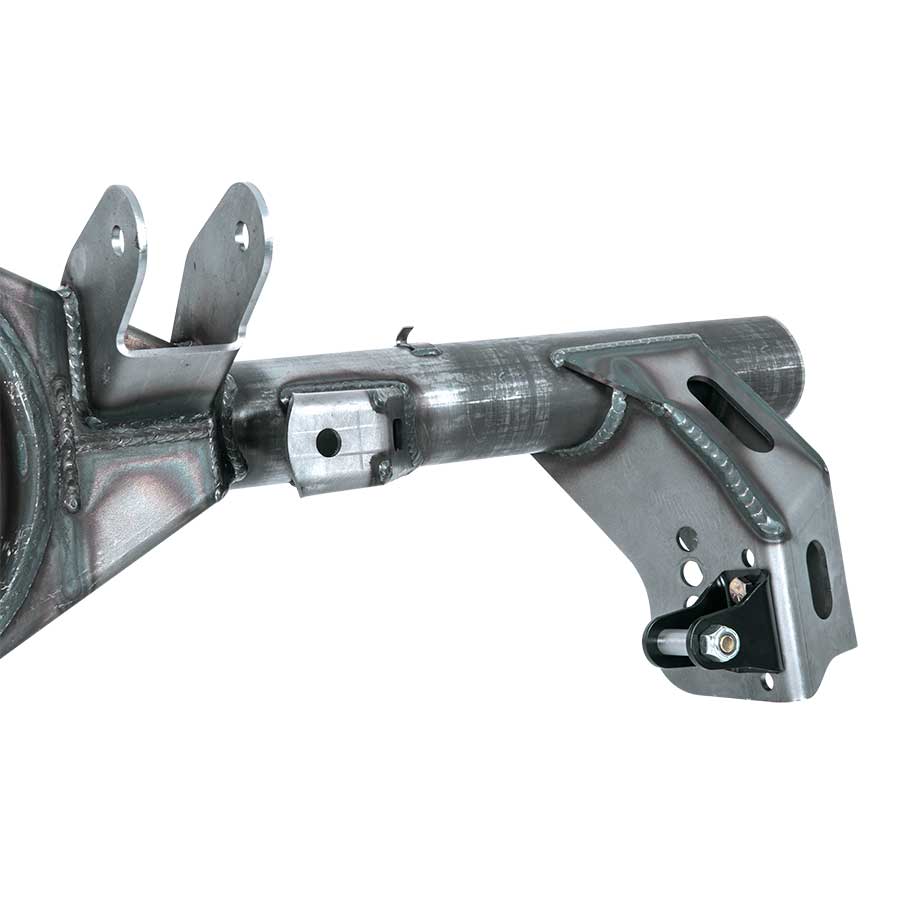

GM B-Body Mounts
• Heavy duty upper control arm mounts
• Multiple lower control arm mounting holes
• Provides instant center adjustments
• Adjustable shock mounts provide up to 1.875″ of lowering capabilities *
• Enables stroke to remain the same as ride height is reduced
* Not Compatible with Factory Shock Bolts
Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality
Related Components
Gasket………………… H1111S
Floater Kit
Pro Touring………………………. F5010
Pro Touring (cambered)….. F5012
Drag Race…………………………. F22064WC / F22065WC / F2206WC
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
