Designed Specifically For Drag Racing
Replacement For 10″ Front Steel Brake Kits
Using Spindle Mount Wheels
B4500WC / B4595WC / B4596WC
B4597WC / B4598WC / B4600WC

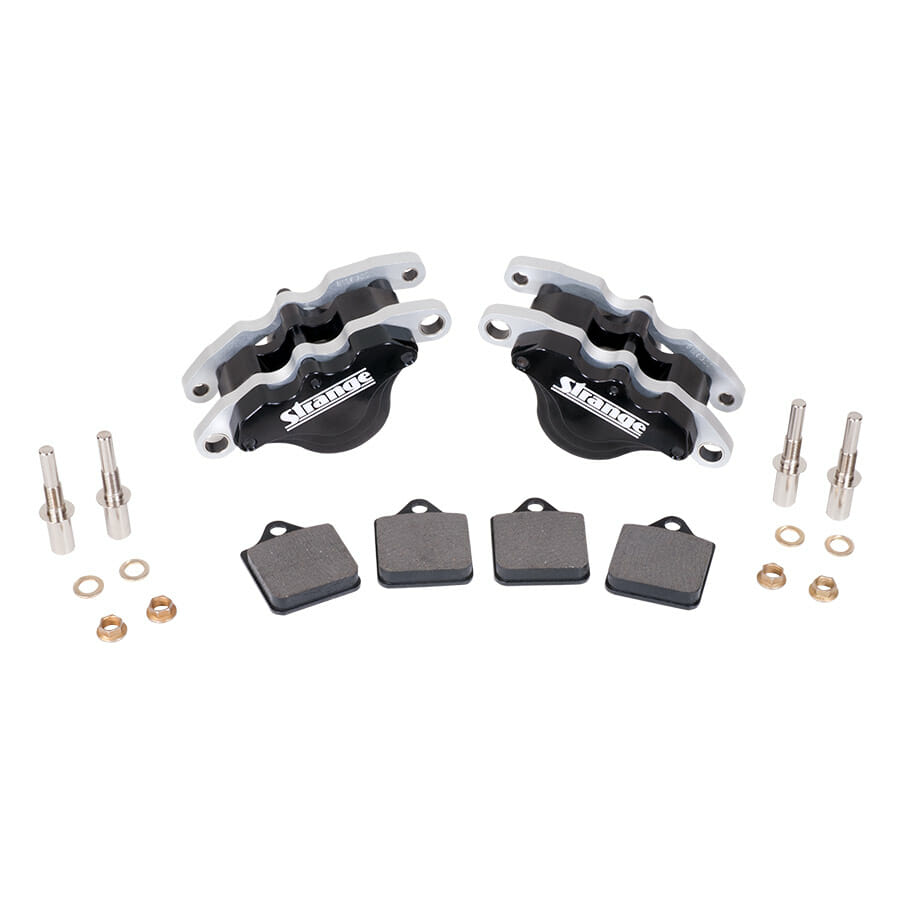

Single Piston Billet Caliper – B1260
• Billet aluminum body is extremely ridged reducing spread and flex
• 1 3/4″ stainless steel piston is abrasion & corrosion resistant
Slide Brackets
• Billet aluminum brackets provide strength and rigidity
• DU® self-lubricating bushings for smooth and consistent operation
Guide Pins
• Burnished to close tolerances ensures exact fit
• Bright electroless nickel finish resists corrosion
• Includes AN washers & self-locking ESNA nuts
Semi Metallic Brake Pads – B2510
• Provides the best starting-line cold holding power
• Only material suitable for use in front steel applications
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs
