Applications
Chevy Truck – Rear
1969-1972 Full Size Blazer (2 Wheel Drive)
1967-1972 C10 Pick-up (2 Wheel Drive)
GMC Truck – Rear
1967-1972 Sierra (2WD Coil Spring Rear)
1969-1972 Full Size Jimmy (2 Wheel Drive)
Description
Single Adjustable Aluminum Shock
Rear – Sold as each
Drag Racing
Softening extension allows more downward force on the rear tires
Performance Street / Road Racing
Stiffening extension reduces body roll
Enhances handling & cornering characteristics
Rotating Knob Clockwise Stiffens Valving

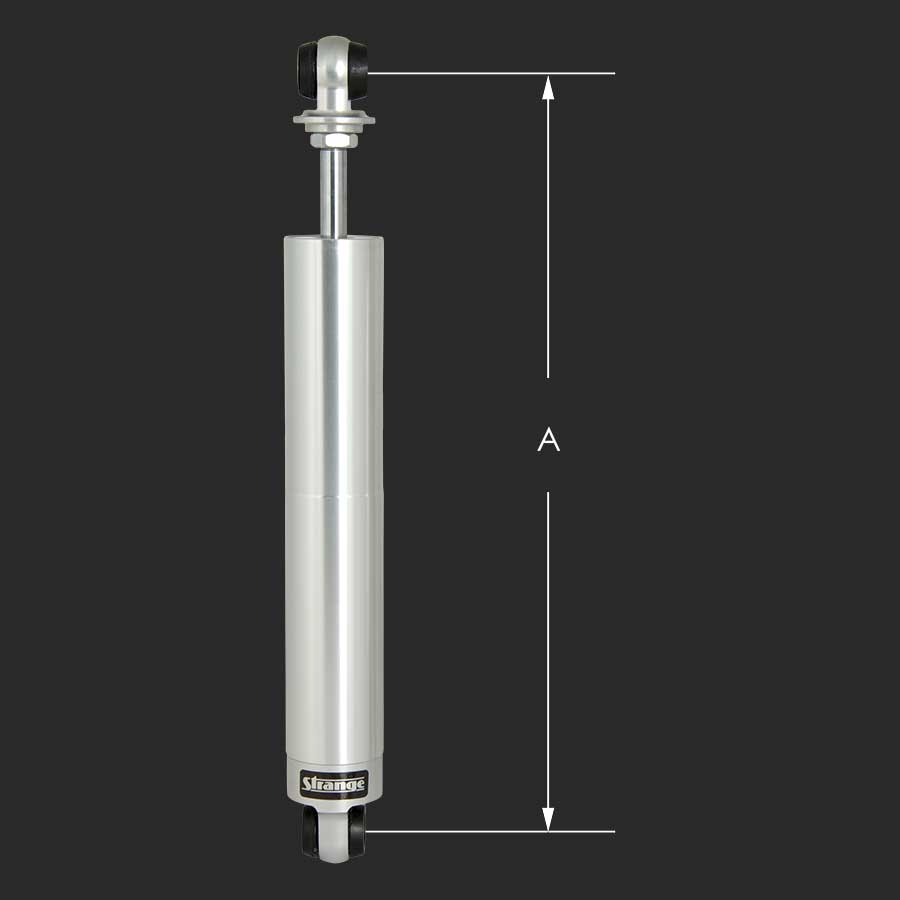

Dimension A
Extended 17.15″ / Compressed 11.64″
Features
• Lightweight aluminum body
• 10 extension settings
• Provides a wide range of control

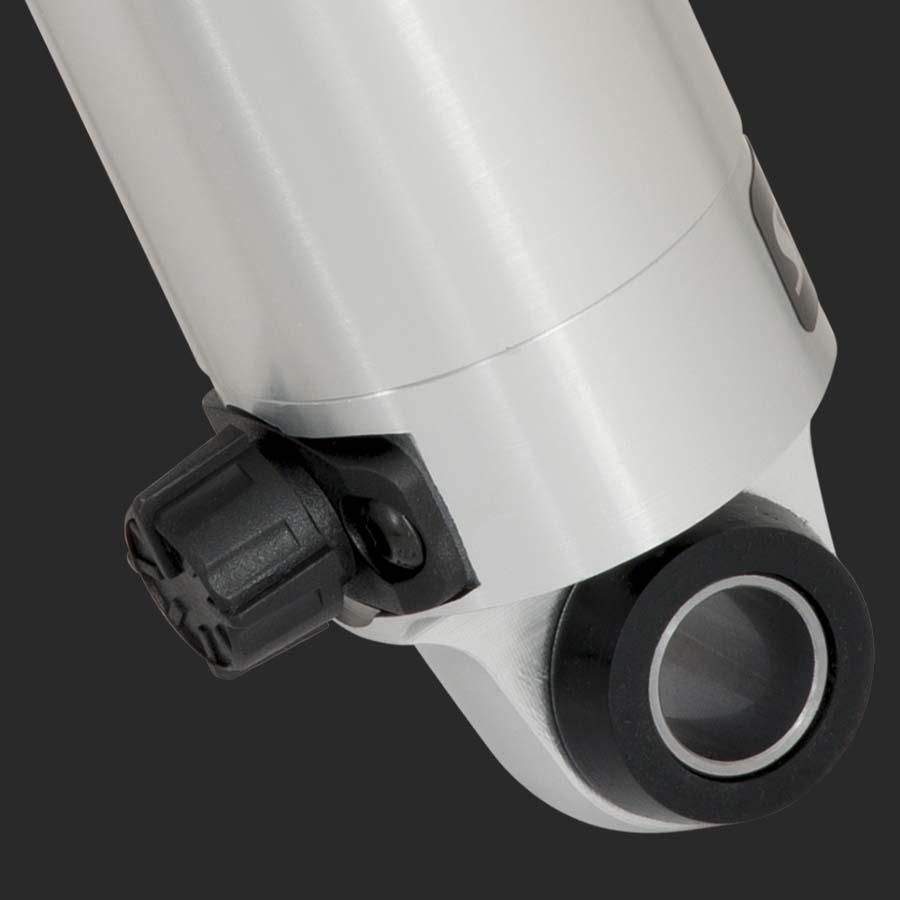

• Easily accessible independent external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Includes
– Upper & Lower polyurethane bushings
– 3/4″ 5/8″ ID x 1.200″ steel sleeves
