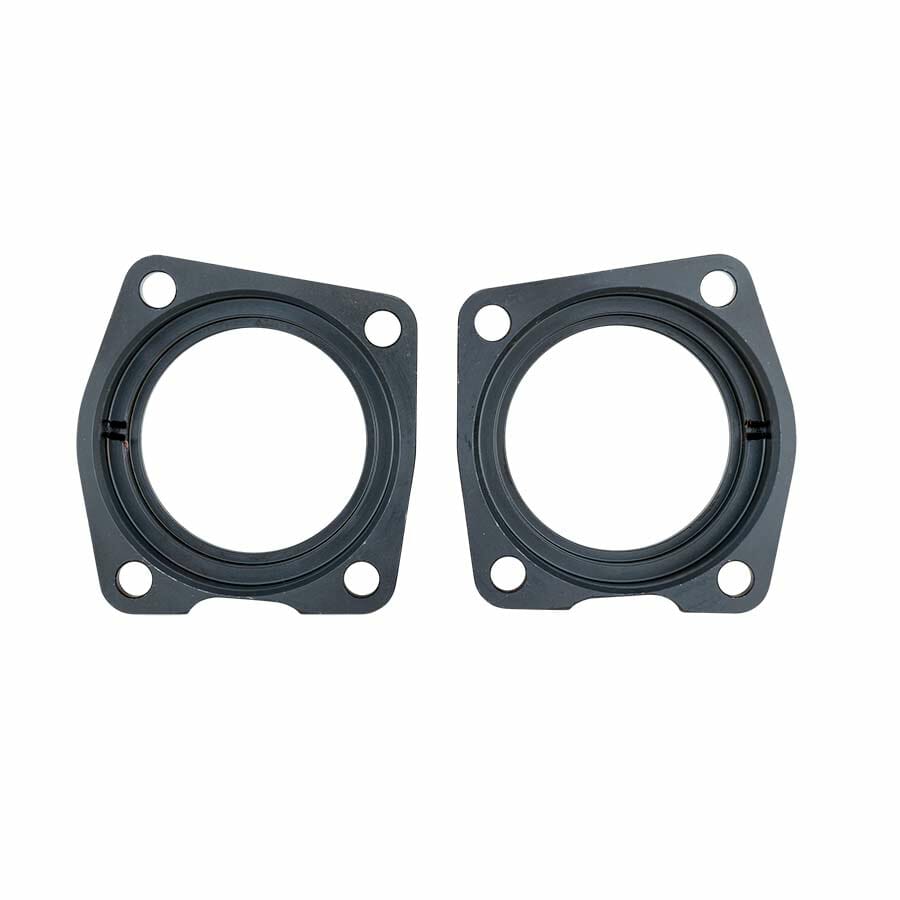

Housing Ends Small GM - For 3.150" Bearing Clearance For 4 Channel ABS Sensor

$150.00

Part Number: H1144

Application
Housing Using 98-02 F-Body Brakes
Clearance for 4 channel sensor

Description
Strange Housing Ends
Sold as pair

Requires
O-ring style ball bearings
or
Outer seal unit bearings

Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

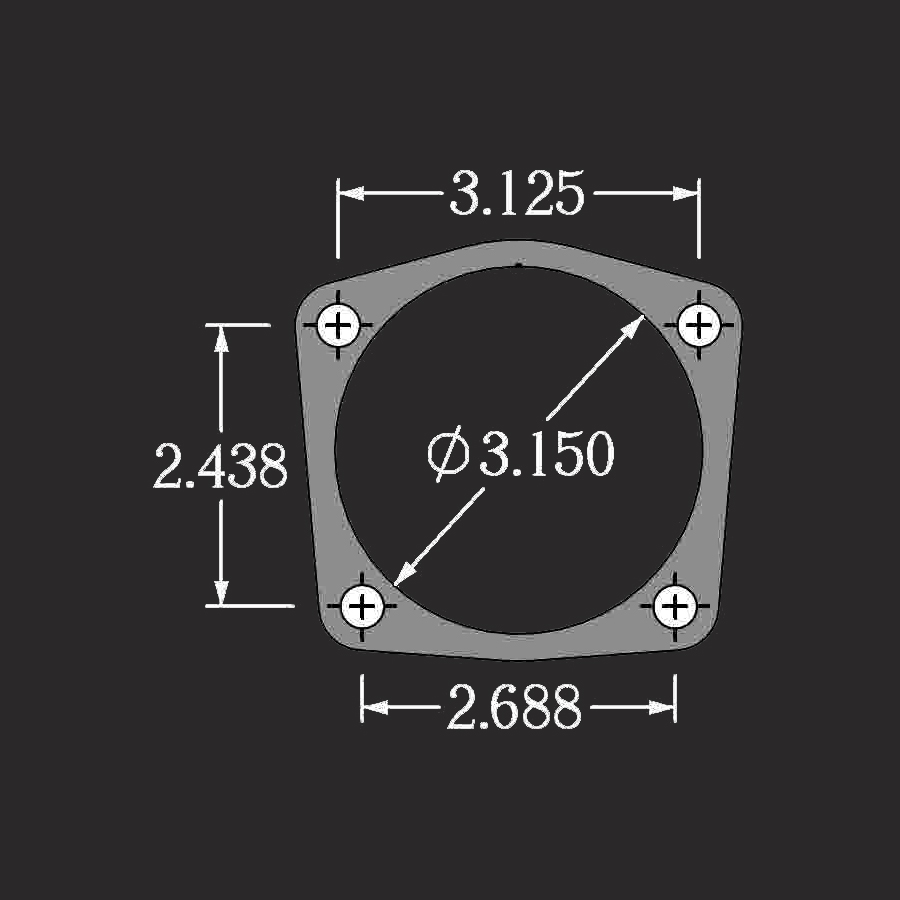

Dimensions
– 1.300″ total width
– 0.281″ wide flange
– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.500″ ID at tube end

Typical Axle Offset
2.740″ – GM 1998-2002 F-Body disc

Related Components
Hsg end stud kit….. B1300HSTKIT

Axle Bearings
1.562″ ID ball……………. A1021
1.562″ ID tapered…….. A1013

Axle Packages
Alloy………………………… P3502
With spool………………. P3502S

Pro Race………………….. P1007
With spool……………….. P2007

Description

Small GM weld-on housing ends for 3.150 bearing / Machined to clear 4 channel sensor- pr
