Custom made to your specifications
Factory or custom widths available at no additional charge
Choice of housing ends
Professionally welded and assembled
Crated to protect your investment
Assembly Includes
S60 housing with ends / No mounts – H60E
Solid 40 spline Pro Race Axle & Spool Package – P2017
4 1/2″, 4 3/4″, or 5″ bolt circle
Choice of 5/8″ stud kit
Standard gear set
Choice of gear ratio
S-Series pinion yoke – U1600
Pinion yoke u-bolt kit – U1610
Steel cover – D3505
Fully crated – No extra charge
Standard Gear Ratios
3.54 / 3.73 / 4.10 / 4.30 / 4.56 / 4.88 / 5.13 / 5.38
Optional Pro Gear Ratios
4.10 / 4.56 / 4.88 / 5.38 / 6.17
Upgrades
Pro gear – OPRS22
Ultra Lite axle flange – A1006
Gun drilled axles – OPRS16
Chrome moly yoke – OPRS18
LPW aluminum cover – OPRS06

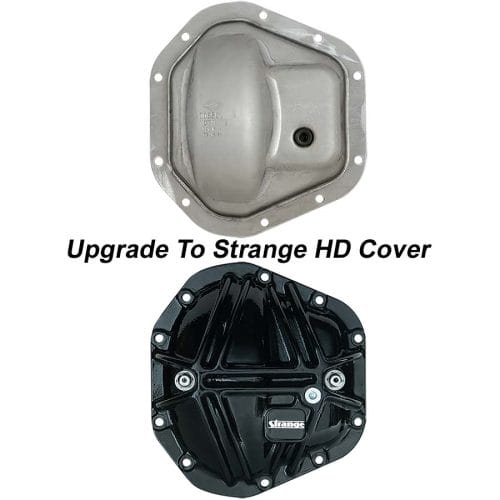

Strange aluminum cover – OPRS08
Black powder coat housing – H1199P-BLK
Option
Supply 3 qts Lucas gear oil – OPGL3Q
Related Components
Fixed pinion snubber – D3520
