Application
1965-1966 / 1967-1972 F100 Pick-Up Truck
OEM mount locations
Factory 2″ pinion offset to the passenger side
NOTES:
Will not fit OEM brakes

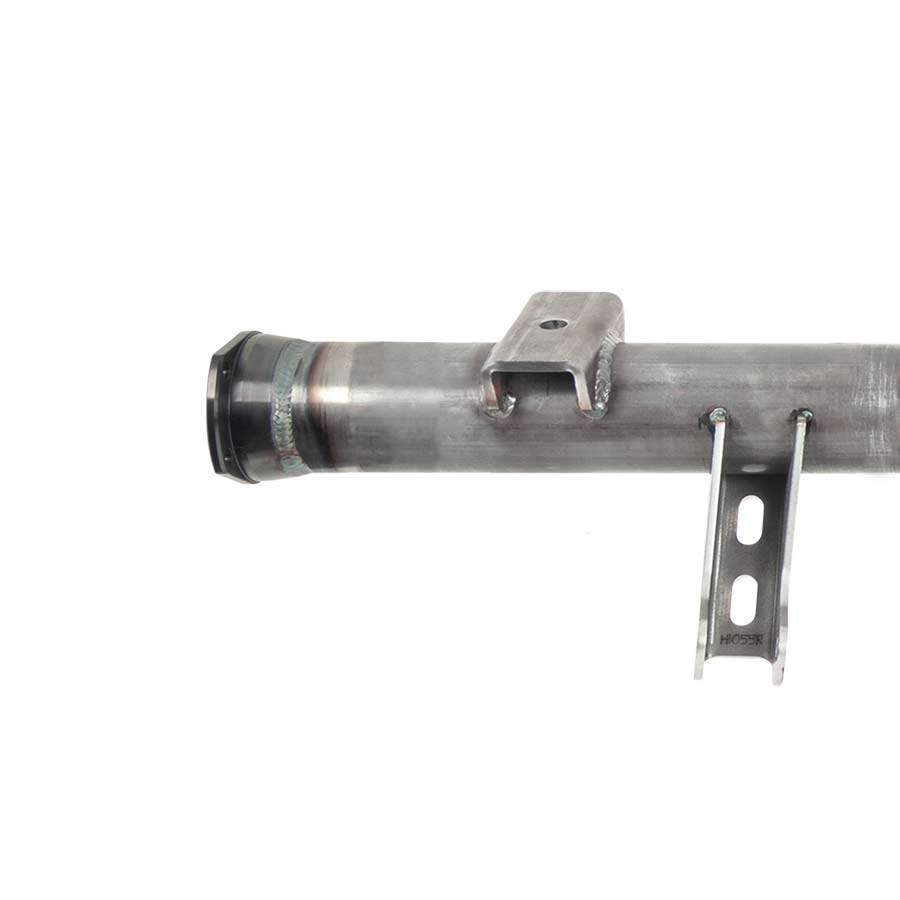

Shock mounts moved down 1.250″ and forward 2.75″ from factory locations
• Improves geometry for lowered vehicles
• Due to less ground clearance, may create issues in 4×4 applications
Description

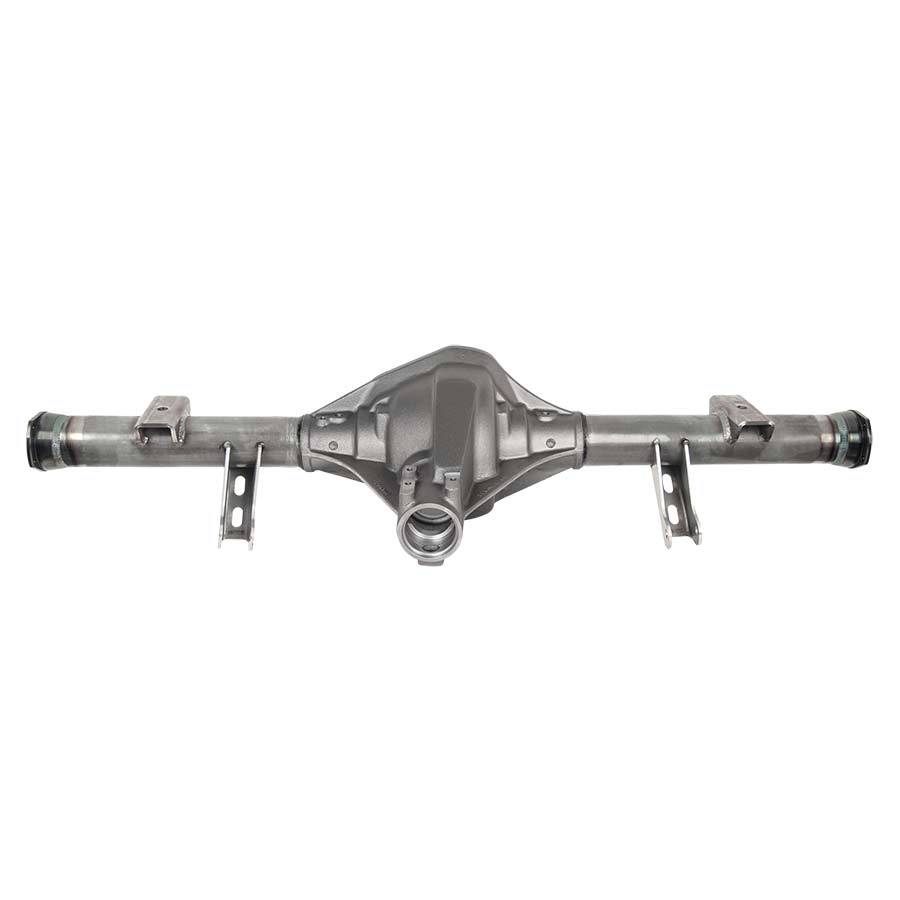

S60 housing
Includes tubes, 1965-1972 F100 mounts & housing ends
Information Required
Housing ends
Housing width
Features
Nodular Iron Center – H1109A
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
1965-1972 Mounts
– Strange heavy duty
Choice Of Housing Ends
– Ford…… H1137 / H1135
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or made-to-order width
– No additional charges
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Related Components
Adjuster nut wrench………………… H1109D
Powder coat housing…………….. H1199P-BLK
Steel cover……………………………. D3505
Strange aluminum cover……………. D3517
LPW HD aluminum cover……….. D3508 / D3508F
Gear install kit……………………….. D3512
Alloy Axle Packages
35 spline……………………… P3504 / P350458
35 spline with spool……….. P3504S / P350458S
Pro Race Packages
35 spline with spool…………. P2005 / P200558
40 spline with spool…………. P2017 / P2015
