Application
Construction of Housing for 1965-1972 Ford F100 Pick-Up
OEM mount locations
Factory 2″ pinion offset to the passenger side
NOTES:
Shock mounts moved down 1.250″ and forward 2.75″ from factory locations
• Improves geometry for lowered vehicles
• Due to less ground clearance, may create issues in 4×4 applications
Description

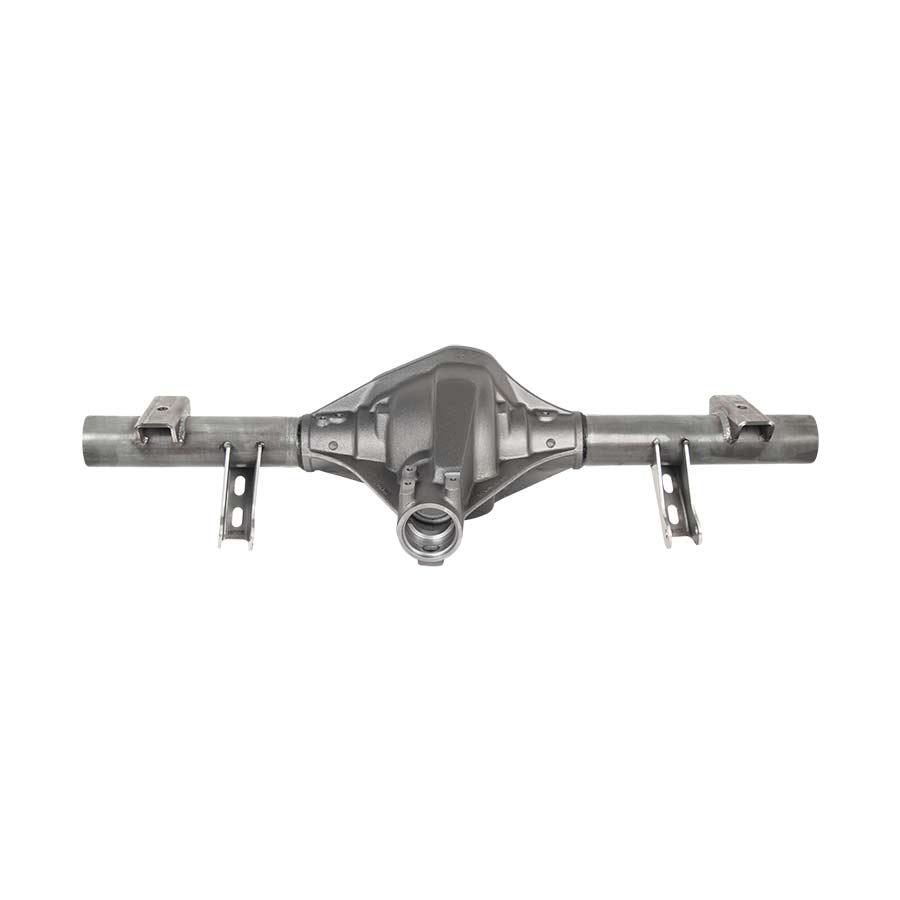

S60 housing
Includes tubes & 1965-1972 F100 mounts
Perfect base for creating Pro Touring floater housing
Information Required
Housing tube to tube width
Features
Nodular Iron Center – H1109A
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

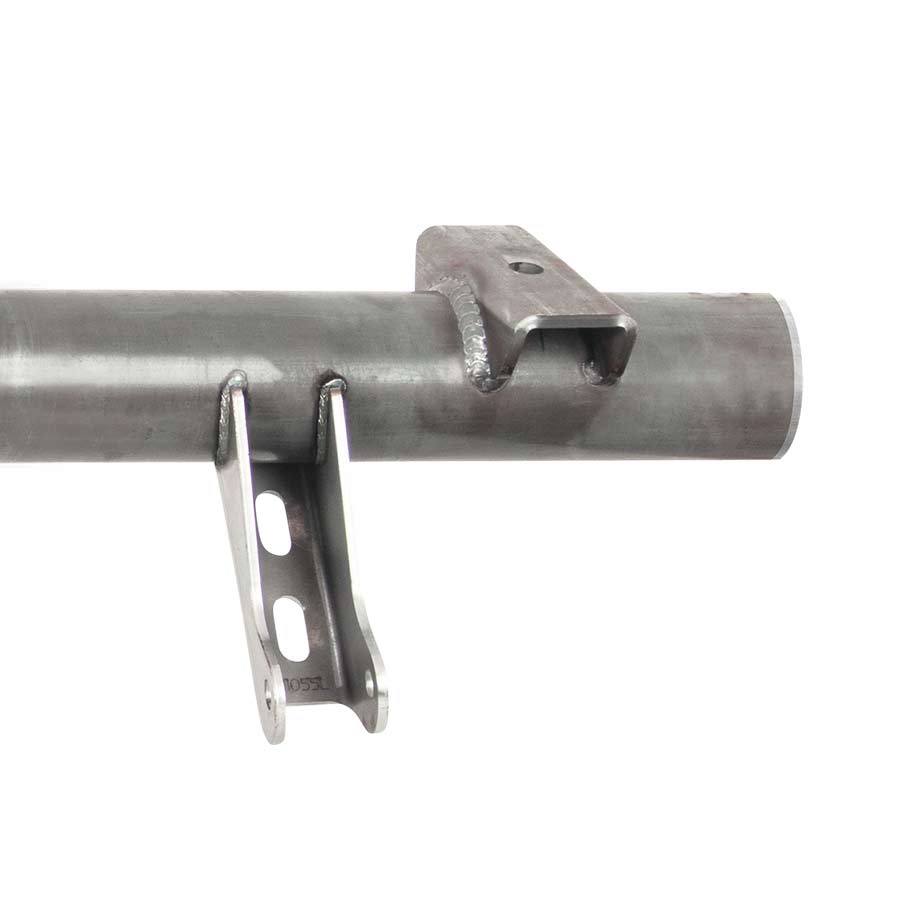

Ford F100 Mounts
• Heavy duty leaf & shock mounts
Choice Of Housing Width
– Factory or made-to-order width
– No additional charges
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Related Components
Adjuster nut wrench………………… H1109D
Steel cover……………………………. D3505
Strange aluminum cover……………. D3517
LPW HD aluminum cover……….. D3508 / D3508F
Gear install kit……………………….. D3512
Pro Touring floater kit………………. F5010
