S60 GM G-Body Housing With Mounts - No Housing Ends

$995.00

Part Number: H60GGM

Application – GM G-Body Vehicles

Description
S60 G-Body housing
Includes G-Body coil spring seats & lower control arm mounts – No housing ends

Use
Perfect base for creating Pro Touring floater housing

Information Required
Tube to tube width

Features

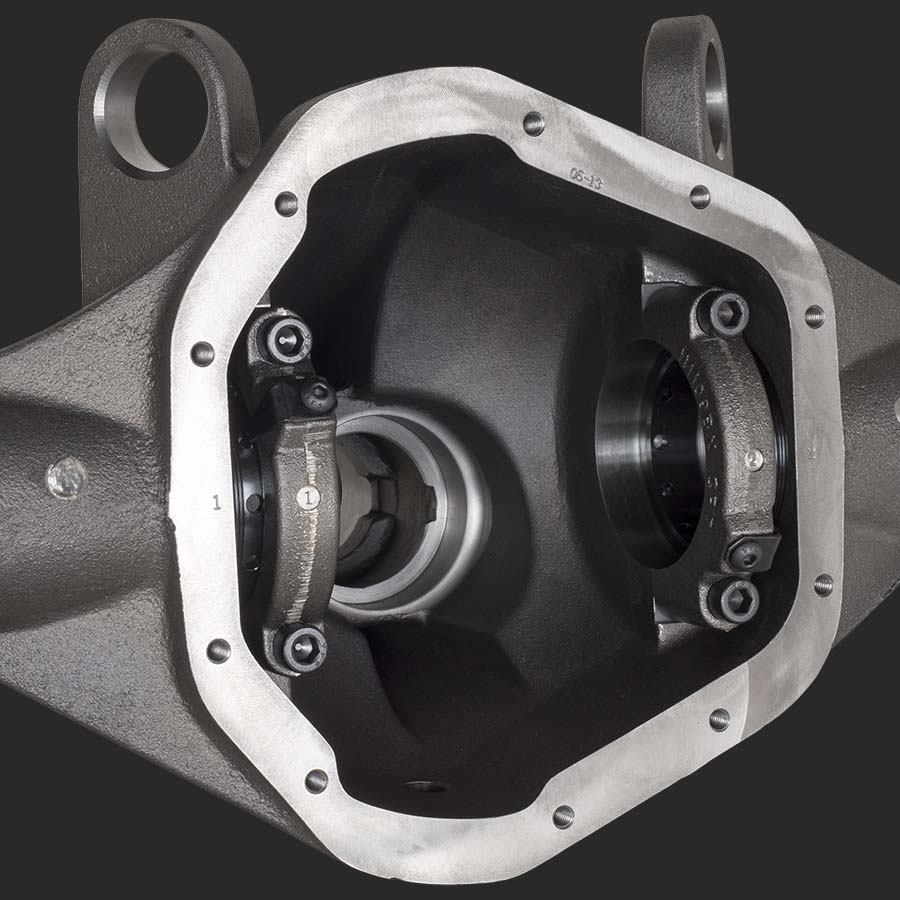

Nodular Iron Center – H1108A
– G-Body upper control arm mounts
– Raised 3/8″ to improve traction
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *

* Uses different side bearing races

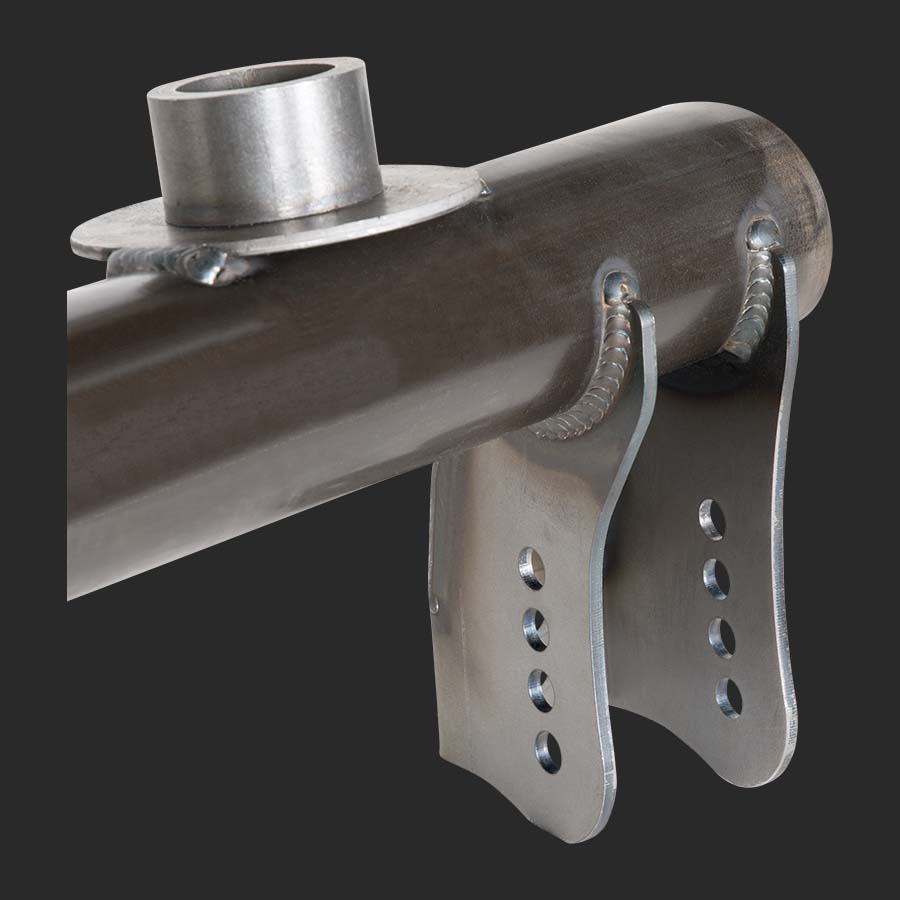

Coil Spring & Lower Control Arm Mounts
– Strange heavy duty
– Multiple lower control arm mounting holes
– Provides wide range of traction adjustment

3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

Choice Of Tube To Tube Width
– Factory or custom width
– No additional charge

Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues

Related Components
Adjuster nut wrench…………….. H1109D
Steel cover…………………………….. D3505
Strange aluminum cover……….. D3517
LPW HD aluminum cover………. D3509
Cover gasket…………………… D3508 / D3508F
Gear install kit……………………….. D3512
Pro Touring Floater kit…………… F5010

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

S60 GM G-Body housing / with mounts (no ends)
