Application – GM G-Body housing fabrication
Description
S60 G-Body housing
Tubed – No mounts or housing ends
Information Required – Tube to tube width
Features
Nodular Iron Center – H1108A
– G- Body upper control arm mounts
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races

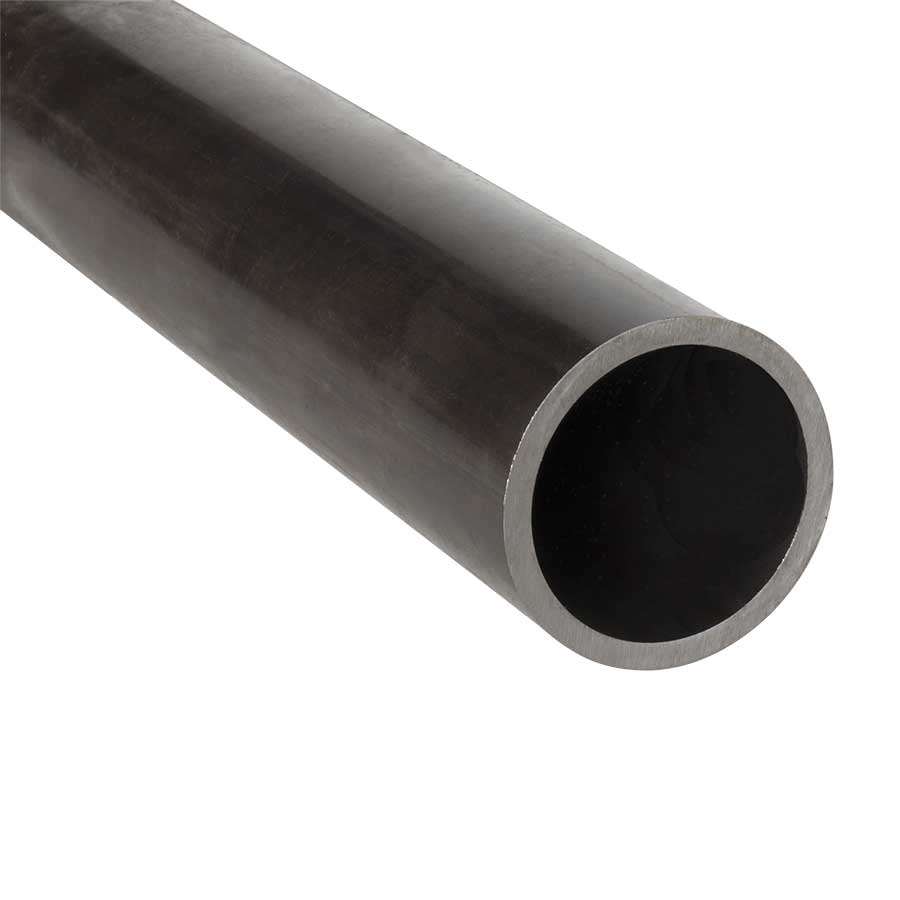

3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Choice Of Tube To Tube Width
– Factory or custom width
– No additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Related Components
Adjuster nut wrench…………….. H1109D
Steel cover…………………………….. D3505
Strange aluminum cover……….. D3517
LPW HD aluminum cover………. D3509
Cover gasket…………………… D3508 / D3508F
Gear install kit……………………….. D3512
