Application – 1982-2002 Camaro / Trans Am
Description

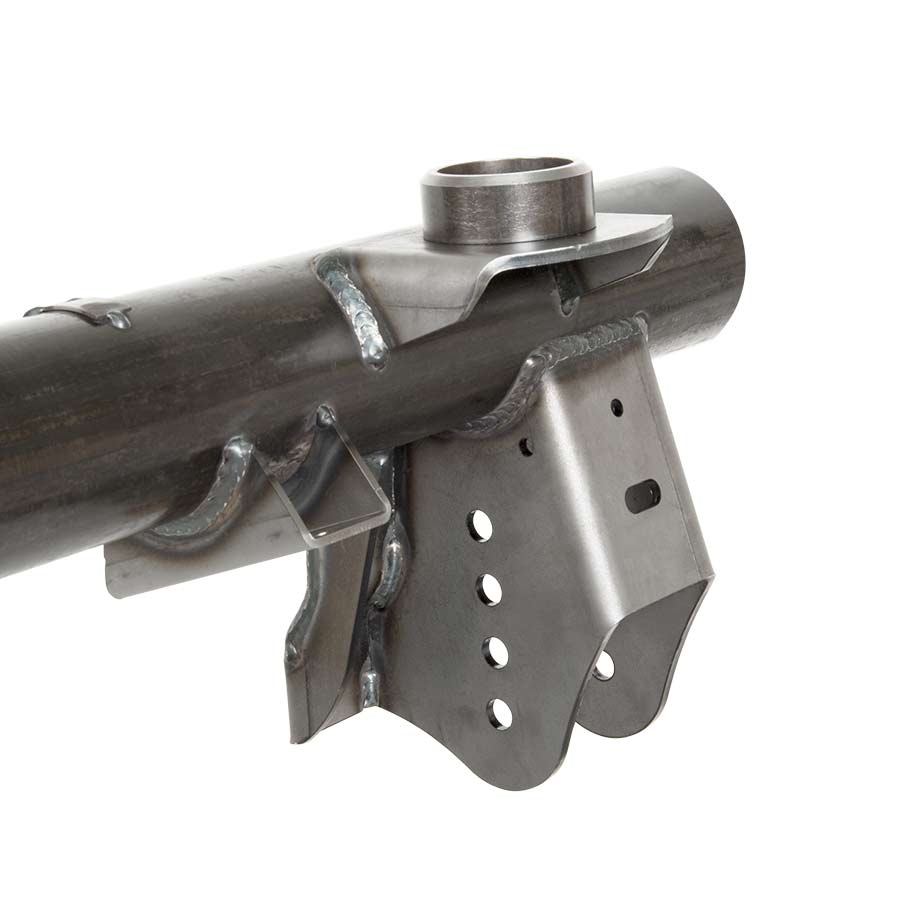

Strange S60 F-Body housing
Includes tubes & F-Body mounts – No ends
Use
Perfect base for creating Pro Touring floater housing
Information Required – Tube to tube width
Features
Nodular Iron Center – H1105A
– Integral torque arm provision
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Three channel sensor hole
– Accepts Dana 60 internal components *
* Uses different side bearing races
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel
Coil Spring & Lower Control Arm Mounts
– Strange heavy duty
– Multiple lower control arm mounting holes
– Provides wide range of traction adjustment
Choice Of Tube To Tube Width
– Factory width
– Custom width at no additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Notes
Specify if using 3 channel, 4 channel, or no ABS
3 channel ABS utilizes OEM sensor
Rear End Covers
Aluminum covers will not fit due to limited vehicle clearances
Related Components
Adjuster nut wrench…………… H1109D
Steel cover…………………………… D3505
Cover gasket…………………. D3508 / D3508F
Gear install kit……………………… D3512
Pro Touring floater kit………….. F5010
