Application – GM A-Body Vehicles
Description
S60 A-Body housing
Tubed with choice of housing ends – No mounts
Note
Ordering a housing in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed
Information Required
Housing ends
Housing width
Features
Nodular Iron Center – H1107A
– A-Body upper control arm mounts
– Raised 15/16″ to improve traction
– Nodular iron main caps
– Adjuster nuts eliminate side bearing shims
– Greatly simplifies gear changes
– Accepts Dana 60 internal components *
* Uses different side bearing races
3″ x .250″ Wall Tubes – H1139
– Seamless DOM mild steel

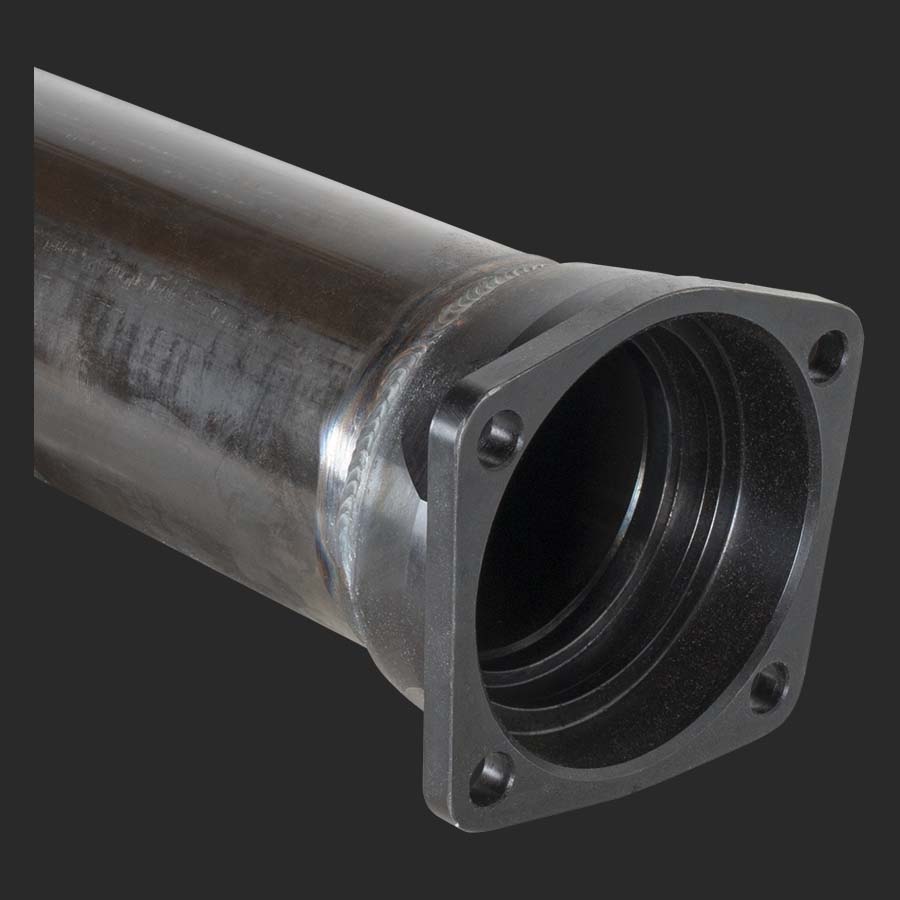

Choice Of Housing Ends – H1143 / H1132 / H1137
– Forged chrome moly
– Accepts 3.150″ tapered or ball style bearings
– Other Strange housing ends are also available
Choice Of Housing Width
– Factory or custom width
– No additional charge
Professionally Welded
– Jig welded to ensure proper alignment
– Tubes plug & 360° welded to casting
– Eliminates tube rotation issues
Related Components
Adjuster nut wrench………………. H1109D
Steel cover………………………………. D3505
Strange aluminum cover…………. D3517
LPW HD aluminum cover………… D3509
Cover gasket…………………….. D3508 / D3508F
Gear install kit…………………………. D3512
Alloy Axle Packages
35 spline………………………….. P3504 / P350458
35 spline with spool……….. P3504S / P350458S
Pro Race Packages
35 spline with spool…………. P2005 / P200558
40 spline with spool…………. P2017 / P2015
