Strange S-Trac Differential Fits 8.8 Ford With 35 Spline Axles Includes Special Side Bearings , Races, & Shims

$1,429.00

Part Number: N1882

Application – Ford 8.8″ with 35 spline axles

Description

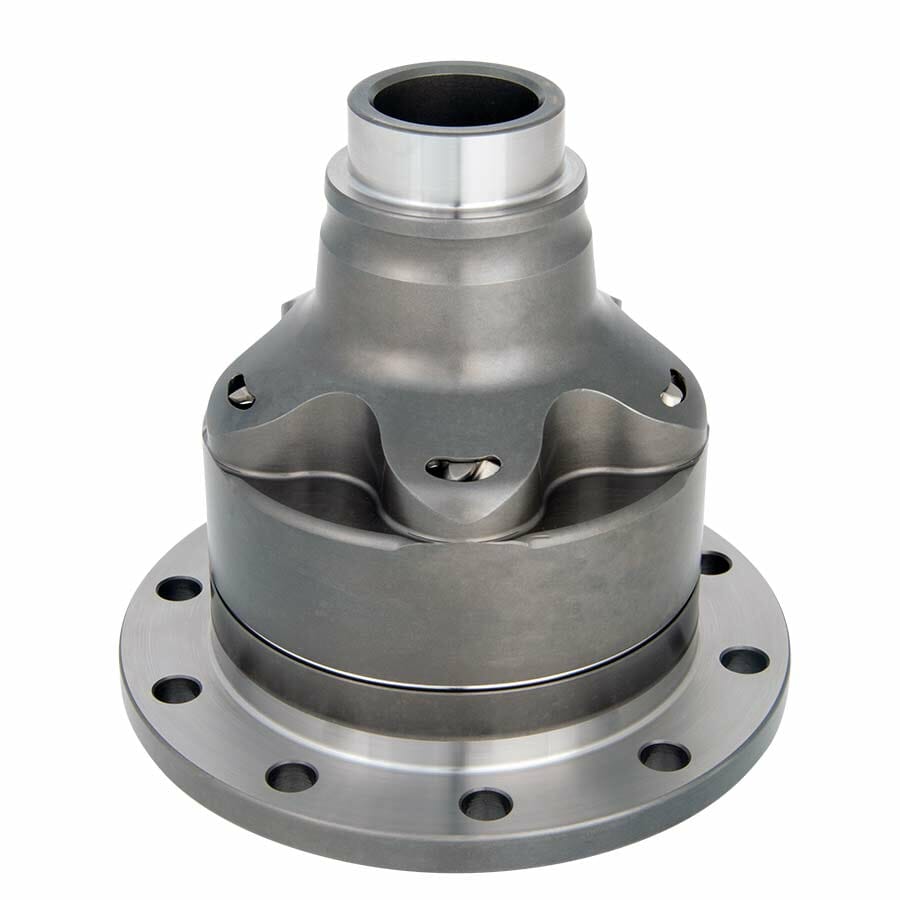

Strange 35 Spline S-Trac
This helical gear differential offers smooth and progressive power transfer
Superior design and quality make it ideal for the most abusive Street/Track applications

Features
Torque Biased, Mechanical & Clutchless
• Maximizes traction and acceleration
• Dependable and maintenance free
• Quiet operation

Forged Steel Case Halves
• Heat treated
• Fully machined
• Provides a light, durable, and rigid unit

Internal Gear Pocket Geometry
• Minimizes stress risers
• Increases service life

Dry Film Solid Lubricant Coating
• Applied to thrust surfaces
• Minimizes component wear

9310 Steel Pinion Gears
• Chrome moly material
• Provides the ultimate in torque carrying capacity

Aggressive Gear Helix Angle
• Promotes superior torque bias
• Excels in situations of unequal traction

All Internal Gears Made from 9310 Steel
• Vacuum heat treated for superior strength
• Additionally cold treated to optimize fatigue life and reduce wear

Proven Quality
• Designed, machined, & assembled by Strange
• Materials made in the USA

Gear Lube
DO NOT USE SYNTHETIC GEAR OIL
Will adversely affect unit operation and void warranty

Use Only Petroleum Based 85W-140 Gear Oil

Related Components
Mustang Alloy Axle Packages With Eliminator Kit
1986-1993…………………. P3509F86 / P3509F8658
1994-2004…………………. P3509F94 / P3509F9458
2005-2014…………………. P3509F05 / P3509F0558

Ford 8.8 Housings With Weld-on 3.150″ Ends
With retaining plates……….. P3504 / P350458
Without retaining plates….. P3502 / P350258

Description

The same proven technology that created the Strange S-Trac for Ford 9 inch rear ends, is available for Ford 8.8 inch rear ends.

There is little question that the Ford 8.8 inch rear end housing is capable of handling large amounts of horsepower when assembled with the correct parts. Strange Engineering is taking things to the next level with the introduction of the S-Trac 35 spline 8.8 differential. The torque biasing S-Trac is purely mechanical which eliminates the need for clutches. It provides quiet operation while maximizing tire traction and vehicle acceleration.

Helical Gear Differential

The foundation of the S-Trac is the heat treated forged 8620 case that creates a light, durable, and rigid unit. The helical cut gears are manufactured from 9310 steel, heat treated and coated with a dry film solid lubricant providing exceptional strength and minimizes wear. The seamless operation of the Strange S-Trac makes it ideal for street, strip, road racing and autocross. This premium unit includes Timken carrier bearings with races, side shims, and a lifetime replacement warranty to the original purchaser.

Parts List and Installation Guide pdf File

You may also like…

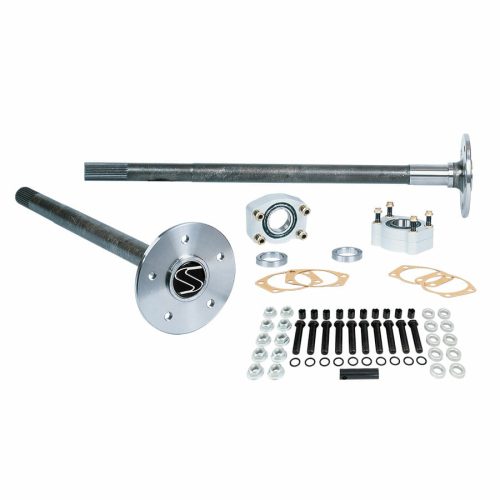

  • P3509F86-Strange Alloy Axle Package  For 1986-1993 Mustang 8.8 Rear End  35 Spline Alloy Axles, C-Clip Eliminator Kit, & Wheel Studs

    Strange Alloy Axle Package For 1986-1993 Mustang 8.8 Rear End 35 Spline Alloy Axles, C-Clip Eliminator Kit, & Wheel Studs

    PN : P3509F86
    $545.00
    Select options

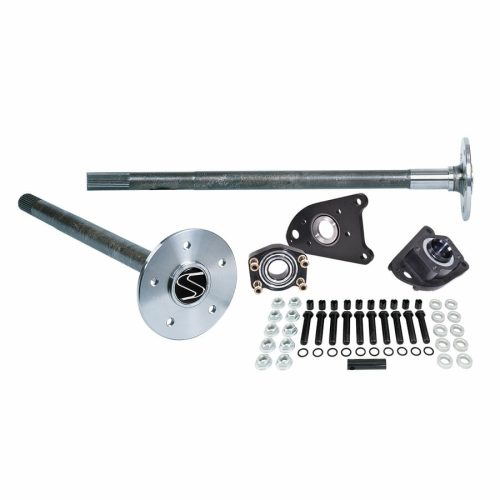

  • P3509F9458-Strange Alloy Axle Package  For 1994-2004 Mustang 8.8 Rear End  35 Spline Alloy Axles, C-Clip Eliminator Kit, & 5/8" Stud Kit

    Strange Alloy Axle Package For 1994-2004 Mustang 8.8 Rear End 35 Spline Alloy Axles, C-Clip Eliminator Kit, & 5/8″ Stud Kit

    PN : P3509F9458
    $735.00
    Select options
  • P3509F05-Strange Alloy Axle Package  For 2005-2014 Mustang 8.8 Rear End  35 Spline Alloy Axles, C-Clip Eliminator Kit, & Wheel Studs

    2005-2014 Mustang 8.8 Alloy Axle Package 35 Spline Axles, Eliminator Kit, & Wheel Studs

    PN : P3509F05
    $779.00
    Select options

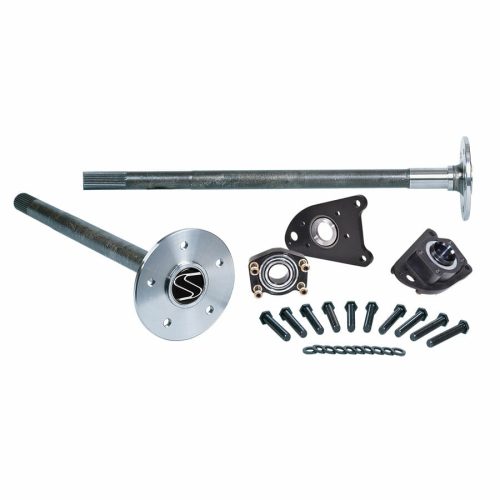

  • P3509F94-Strange Alloy Axle Package  For 1994-2004 Mustang 8.8 Rear End  35 Spline Alloy Axles, C-Clip Eliminator Kit, & Wheel Studs
