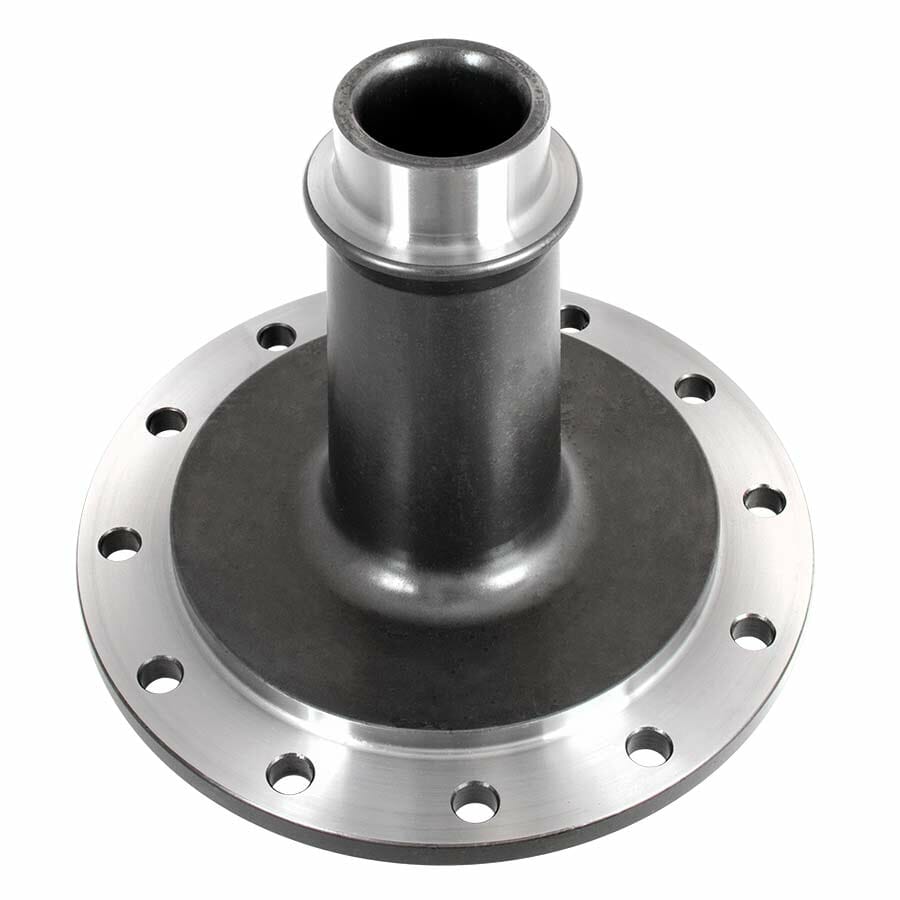

Strange S-Series Steel Spool For Chevy 12 Bolt Car with 30 Spline Axles

$179.00

Part Number: D1526

Application – Chevy 12 Bolt Passenger Car

Description
S-Series Spool
For 30 spline axles

Requirements
Gear set designed for 4 series carrier
C-clip Eliminator kit or aftermarket housing ends

Features
• Manufactured from 8620 forged steel
• Broached for 30 spline axles
• Same spline locations as OEM differential
• Final turn operation after heat treat to ensure accuracy
• Designed & machined by Strange Engineering
• Forged in the USA

Weighs 10.85 lbs

Related Components
Spool bearings……………………… D1582
Installation kit……………………….. R5211

C-clip eliminator kit………………. A1033
Billet aluminum main caps…… H1121

Covers
Chrome…………………………………. R5199
LPW aluminum……………….. R5206 / R5207

Axle & Spool Packages
Axles, c-clip eliminator kit, studs, & spool
Hybrid………………………………… P2000GOT
Pro race……………………………… P2000GDR

Axles, bearings, studs, & spool
With 1/2″ studs………………………. P1007
With 5/8″ studs…………………….. P100758

Description

S/T spool -Steel 30 spline GM 12 blt. GM car
