Application – Dana 60
Description

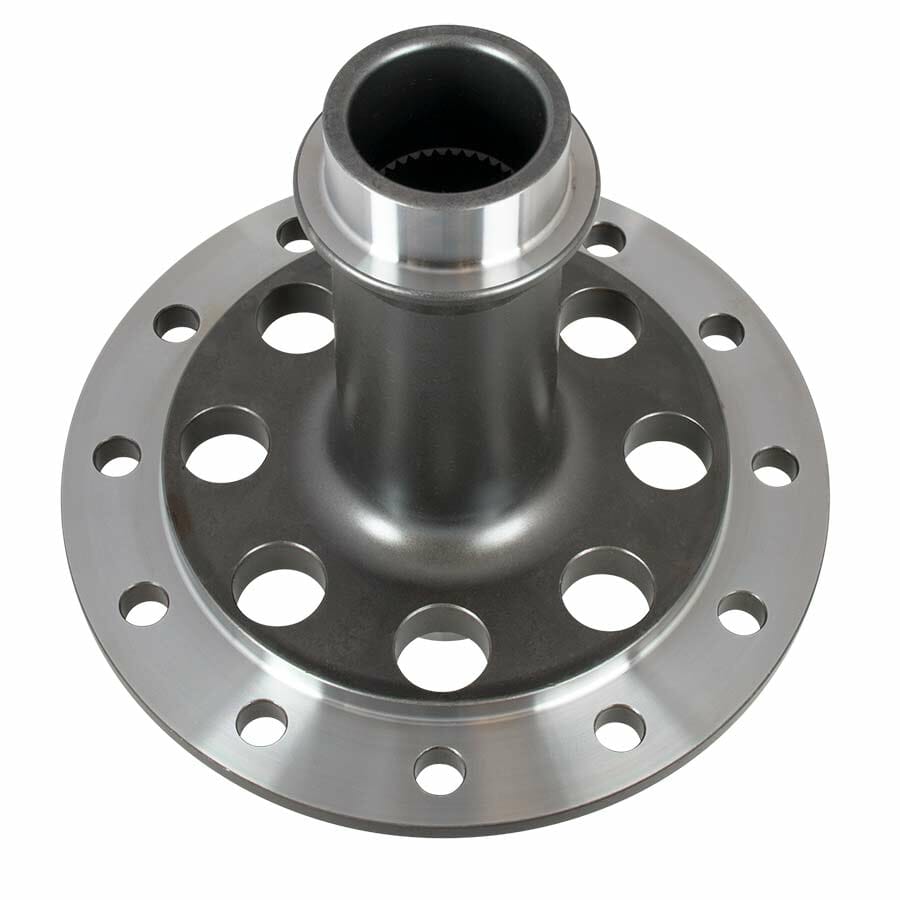

Pro Series Spool
For 35 spline axles
Fits OEM Dana 60 & Strange S60
Requirements
Gear set designed for 5 series carrier
Non-adjustable axle bearings
Features
• Machined from 8620 forged steel
• Lightened to reduce rotating weight
• Broached 35 spline with 30° pressure angle
• Same spline locations as OEM differential
• Critical dimensions left oversize prior to heat treatment
• Heat treated for further gains in strength
• Finish machining after heat treat to bring surfaces within specifications
• Designed and machined by Strange Engineering
• Forged in the USA
Weighs 13.30 lbs
Lightweight Pro Series Steel Spools Carry A Limited Lifetime Warranty
Related Components
Spool Bearings
For OEM Dana 60……………………. D1580
For Strange S60………………………. D1592
Non-Adjustable Axle Bearings
Snap ring style…………………………. A1022
Peened plate type…………………. A1022OB
Installation Kits
For OEM Dana 60…………………….. D3513
For Strange S60……………………….. D3512
Alternate Spools
3 series spool………………………….. D1547
40 spline spool…………… D1544 / D1545 / D1546
Alloy Axle & Spool Package
With 1/2″ studs………………………… P3504S
With 5/8″ studs………………………… P350458S
Pro Race Axle & Spool Package
With 1/2″ studs………………………… P2005
With 5/8″ studs………………………… P200558
