Designed Specifically For Drag Racing
Application
Strange Axle Package P1020

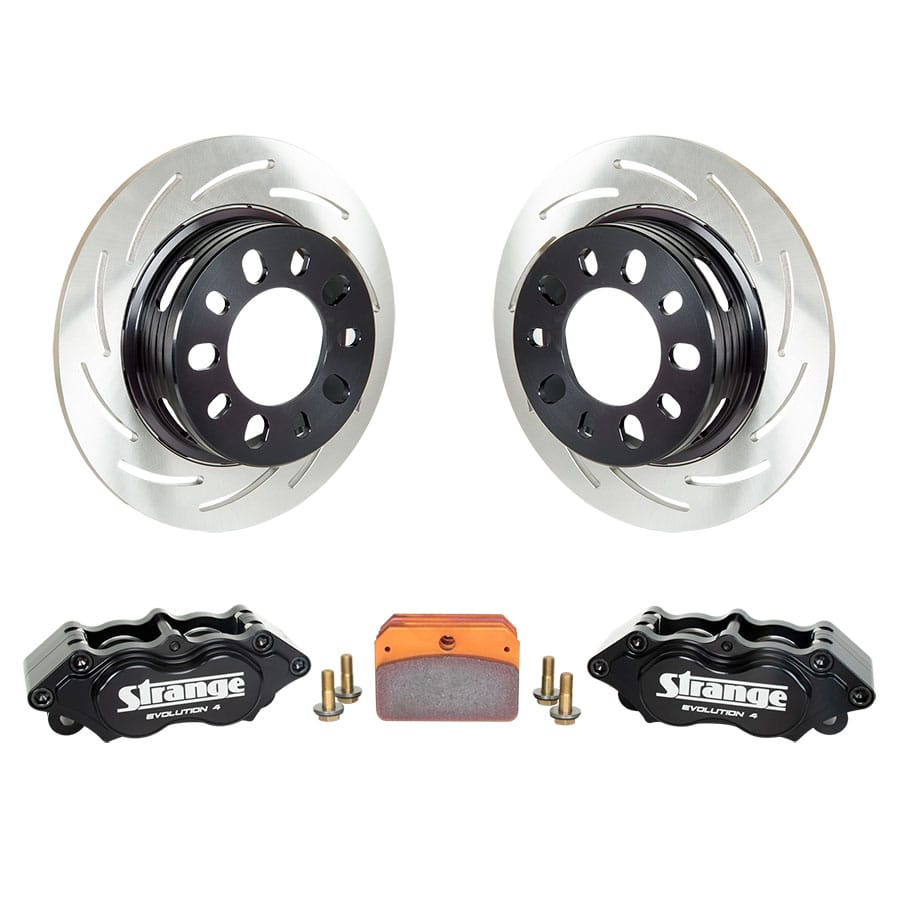

Pro II Stainless Steel DDM Brake Completion Kit
Supplies remainder of brake components

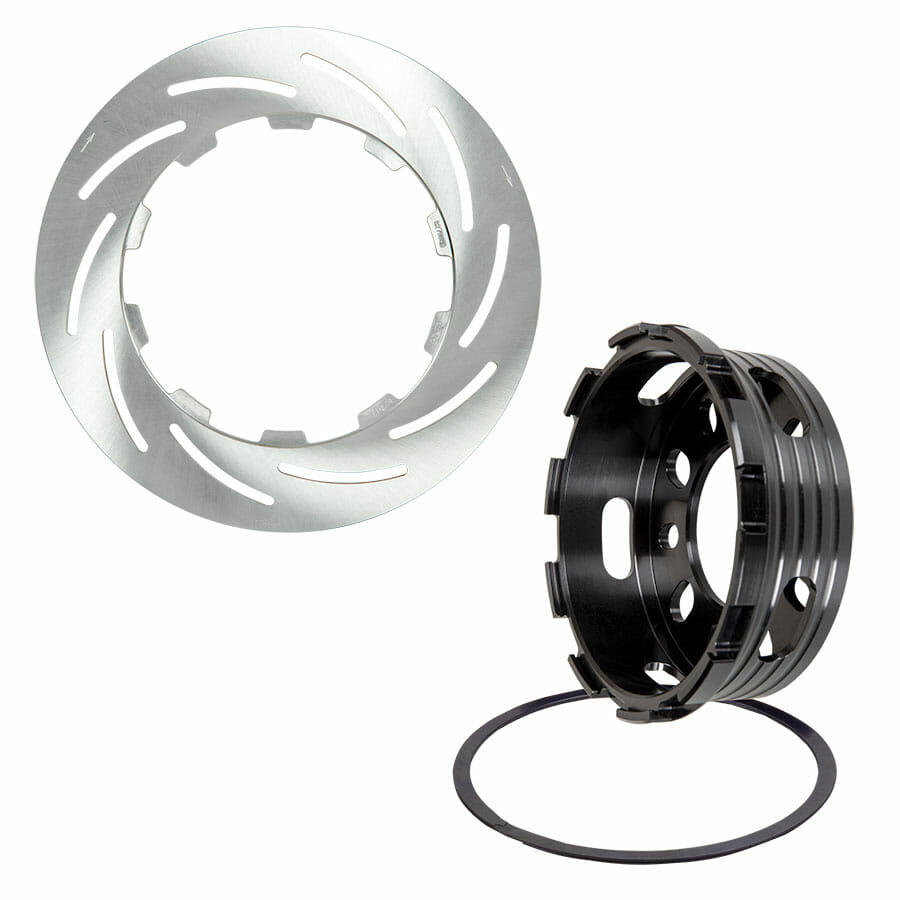

Pro Series 2S Dynamic Drive Mount (DDM) Stainless Steel Rotors – B2794LS / B2794RS
• Pro 2S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retention designs
• DDM system design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Pro Series 2S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Pro Series 2S rotors are highly resistant to heat and corrosion
• Directional Slots reduce rotating weight, increase air flow and promotes even heat dissipation.
• 11.250″ OD / .355″ thickness
Four Piston Billet Evolution 4 Calipers – B1900
• Computer finite element analysis (FEA) optimized and field-tested caliper
• Evolution 4 design improves piston retraction, pedal feel, and stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Results in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• All 1.750″ pistons provide maximum clamping force
• Two bleeder screws ensure complete air evacuation
• Type II Black anodized finish resists corrosion, heat & brake fluid
DRM-35 Metallic Brake Pads
• Provides high resistance to brake fade
• Recommended for vehicles going over 150 MPH in the 1/4 mile
• Maintains decent starting-line cold holding capabilities
• May leave pad residue on rotors when not using parachute
• While common, it’s recommended to remove when installing new pads
Evolution 4 Low Profile Caliper Option – OPRB12
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
