Application
’57-’64 Olds Housing Ends
H1132 or equivalent
For axles with 2.832″ brake offset
The Ultimate in Drag Race Braking Performance
• Maximum rotational weight reduction
• Impervious to brake fade
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel
Includes
• 11″ carbon rotors – C1790
• Ultra Lite billet aluminum rotor hats *
• Aluminum retaining rings with FHSCS screws
• Billet aluminum 4 piston carbon brake calipers – B5042
• Carbon brake pads – L4050H1 / L4050H2

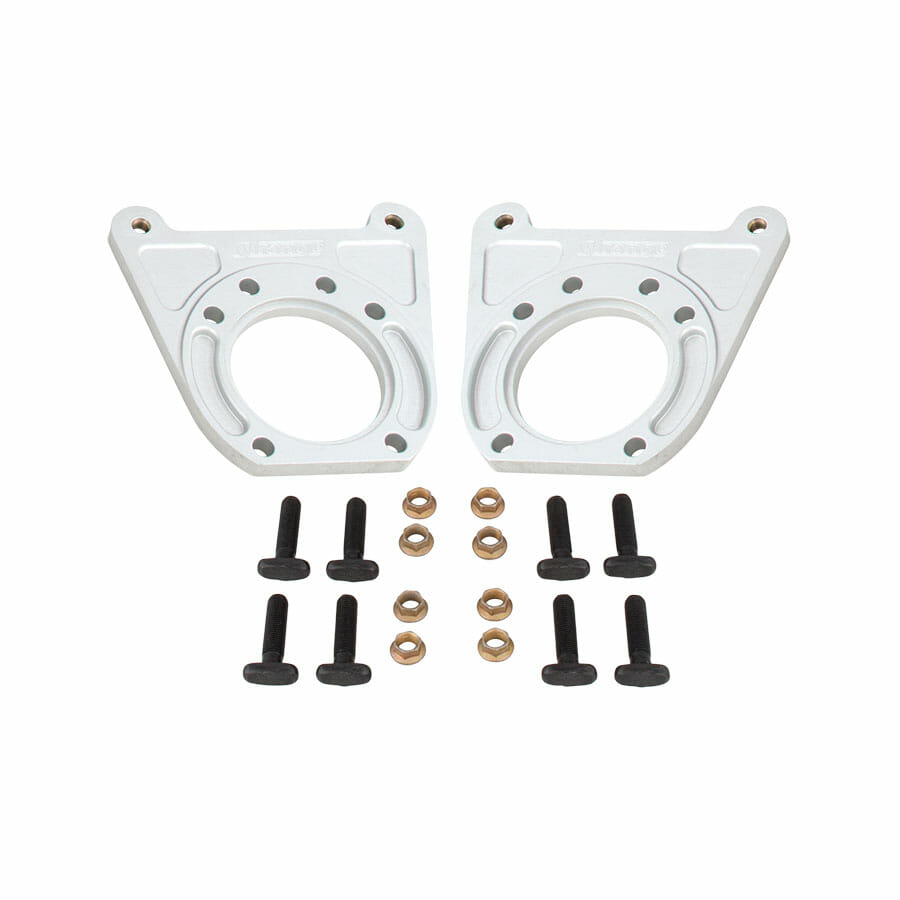

• One piece billet aluminum caliper mounts
• Caliper mounting bolts, washers & alignment shims
• Housing end tee bolts, washers and flanged locking nuts
* Ultra Lite milling has been redesigned to remove additional weight
Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
