Designed Specifically For Drag Racing
Application
Strange 2 Piece Pro Stock Axle Kit – P1020
Equipped With Carbon Brakes

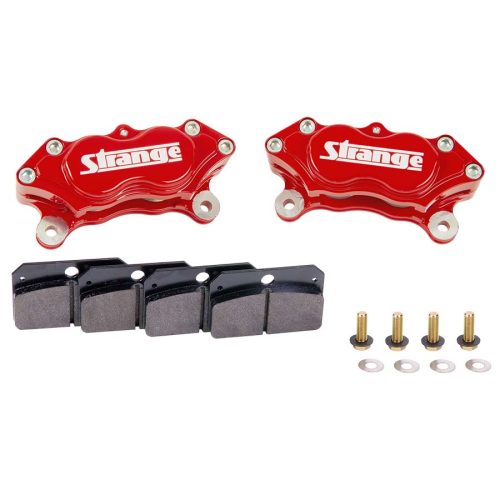

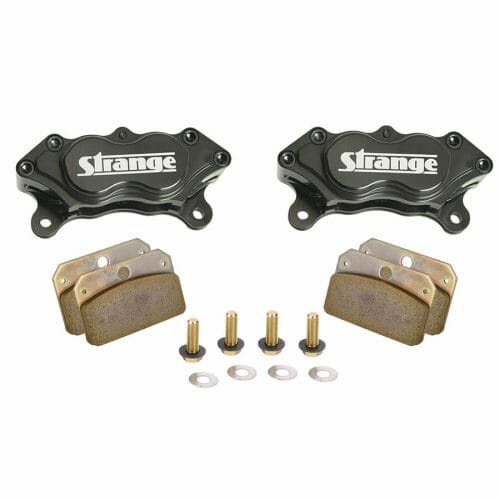

Four Piston Ultra Calipers – B5042
• Extremely rigid billet aluminum calipers
• Two piece air gap piston design limits heat transfer
• Inner piston machined from billet stainless steel
• More resistant to deflection than stamped stainless steel
• Outer piston composed of hard anodized aluminum
• Provides exceptional wear characteristics
• Insulates brake fluid from extreme temperatures
• Eliminates heat shields & shims
• 1 3/4″ diameter pistons ensure proper clamping force
• Provides consistent braking with a firm pedal feel
Mounting Bolts
• Four 3/8″-24 x 1.127″ NAS bolts
• Ensures mounting integrity
Carbon Pads – L4050H1 / L4050H2
• Designed for Strange carbon rotors
• Slots vent dust & decrease effective response time
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque to 25 ft lbs
