B3325-Brake Pad Soft Metallic For Wilwood and JFZ Four Piston Calipers

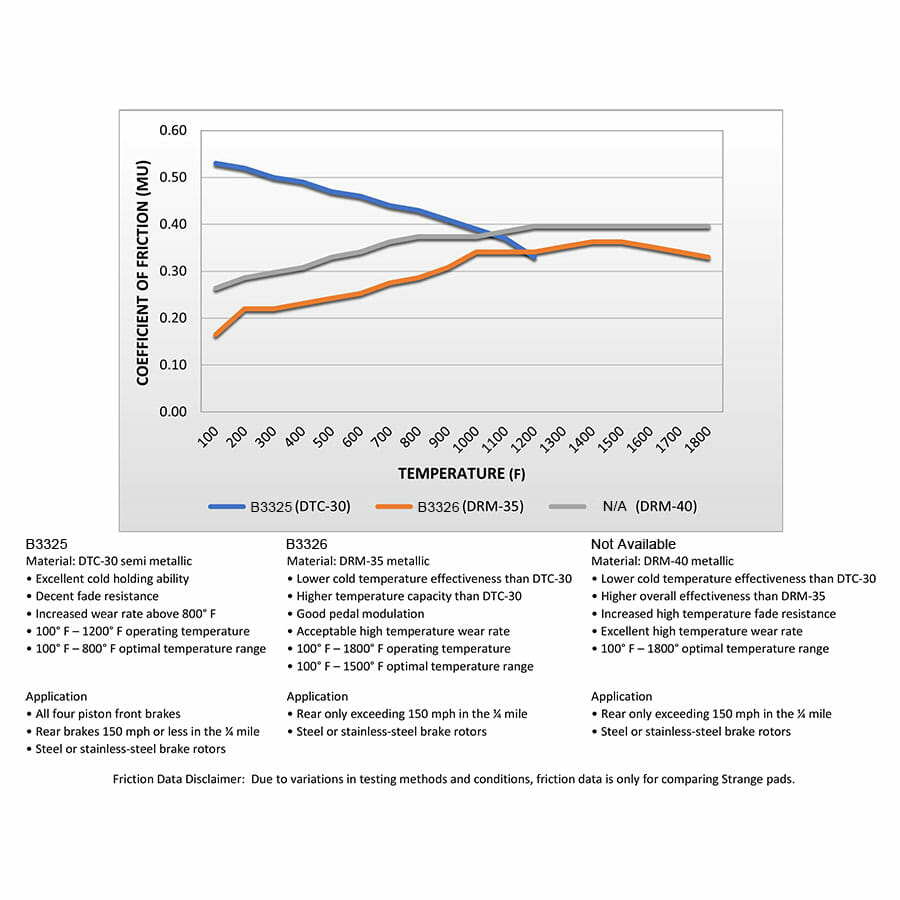

B3325-B3326-Graph

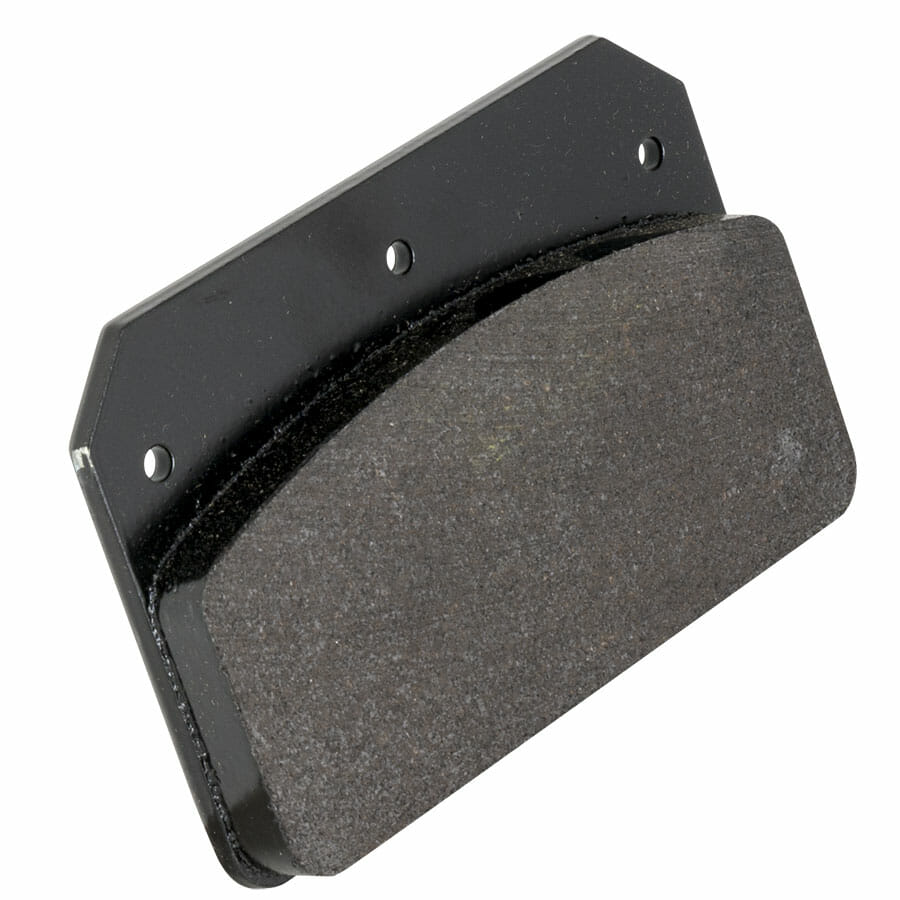

Wilwood / JFZ 4 Piston Caliper Brake Pad
DTC-30 Semi Metallic

$25.00

Part Number: B3325

Designed Specifically For Drag Racing

Wilwood Four Piston Caliper
Utilizing cotter pin to retain brake pads

JFZ Four Piston Caliper
No longer in business
Used cotter pin to retain brake pads

DTC-30 Semi Metallic Brake Pad
• Provides the best starting-line cold holding power
• Only material suitable for use in front steel applications
• Rear application in vehicles going 150 MPH or less in the 1/4 mile

Material Suitable For Front or Rear Applications

Sold as Each
Four pads required per caliper

Specifications
New – .480″
Discard – .200″

Alternate Pad
DRM-35 metallic – B3326

Description

Pad for Wilwood or JFZ caliper / DTC-30 Semi Metallic – ea
