Designed Specifically For Drag Racing

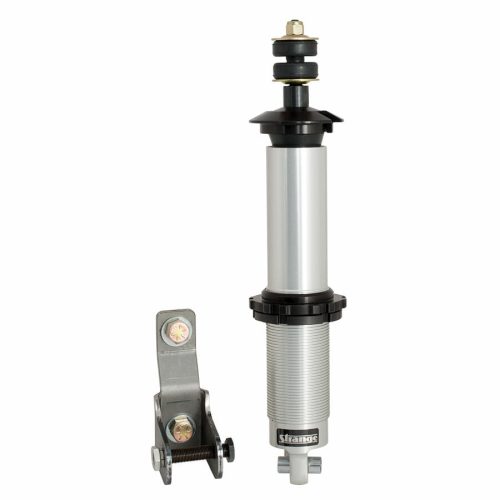

Double Adjustable Coil-Over Shock
• Lightweight aluminum body
• 12 extension & compression settings
• Provides a wide range of control
• Independent external adjustments
• Coil-over design simplifies changes to ride height
• 2.1875″ bumper height
• .500″ wide spherical rod ends
• Accepts 14″ x 2.5″ I.D. spring – Sold Separately
Sold as Each
Eye to Eye – Without Bumper
• 19.50″ entended
• 12.50″ compressed
• 7.00″ stroke
Eye to Eye – With Bumper
• 19.50″ extended
• 14.6875″ compressed
• 4.8125″ stroke
Compression Adjustment
Screw driver adjustable at bottom
Twelve possible positions
Rotating clockwise stiffens valving
Extension Adjustment
Upper eye slot for pin
Twelve possible sweeps
Rotating from left to right stiffens valving
Related
Spring seat bearing kit – S1409
14″ Hyperco Springs
85 lbs – SP14085
100 lbs – SP14100
110 lbs – SP14110
125 lbs – SP14125
138 lbs – SP14138
150 lbs – SP14150
160 lbs – SP14160
175 lbs – SP14175
185 lbs – SP14185
200 lbs – SP14200
