Application – Strange Drag Race Floater Kits
Description

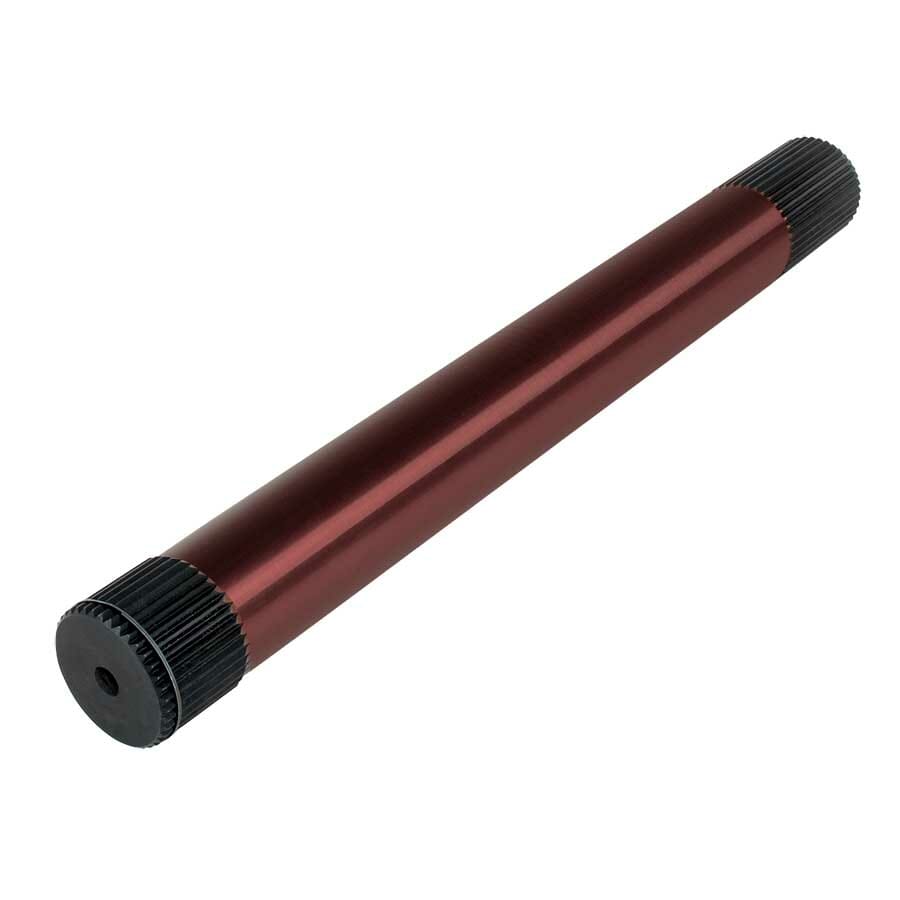

Drag Race floater axle – 32 1/8″ up to 36″
Machined from solid Hy-Tuf material
Solid axles have 9% more torsional strength than gun drilled
Hy-Tuf
A low carbon, high manganese, high nickel, and high molybdenum steel
This is a premium material that is suitable for most applications
It offers a higher degree of ductility in comparison to 300M
Note
Strange 300M axles should be used in heavy cars with 3,000 or more horsepower
These vehicles are common in classes such as Radial vs. The World
It provides an additional 18% increase in impact and torsional strength over Hy-Tuf
Floater Axles Are Sold As Each
Features
• Hy-Tuf material
• Hobbed 40 spline with 45° pressure angle on both ends
• Involuted splines provide full surface contact area
• Major machining performed before heat treat
• Ensures consistent hardness & ductility
• Thru hardening maximizes material’s torsional strength
• Shaft finished machined after heat treat to eliminate runout
• Spirolox® prevents axle from shifting
• Black oxide finish to resist corrosion
• Material made in the USA
• Designed and machined by Strange Engineering
Other Solid Floater Axles
Hy-Tuf
24″ or less………….. A2140H24
24 1/8″ to 28″……… A2140H28
28 1/8″ to 32″……… A2140H32
300M
20″ or less…………….. A2140M
20 1/8″ to 24″……… A2140M24
24 1/8″ to 28″……… A2140M28
28 1/8″ to 32″……… A2140M32
32 1/8″ to 36″……… A2140M36
Gun Drilled Floater Axles
Hy-Tuf
24″ or less………….. A2040H24
24 1/8″ to 28″……… A2040H28
28 1/8″ to 32″……… A2040H32
32 1/8″ to 36″……… A2040H36
300M
20″ or less…………….. A2040M
20 1/8″ to 24″……… A2040M24
24 1/8″ to 28″……… A2040M28
28 1/8″ to 32″……… A2040M32
32 1/8″ to 36″……… A2040M36
Floater Kits
Carbon
4 3/4″ bolt circle….. F22064WC
5″ bolt circle………… F22065WC
5 1/2″ bolt circle……. F2206WC
Steel
4 3/4″ bolt circle…….. F22064
5″ bolt circle…………… F22065
5 1/2″ bolt circle……… F2206
Pro Touring……………. F5010
