Designed Specifically For Drag Racing

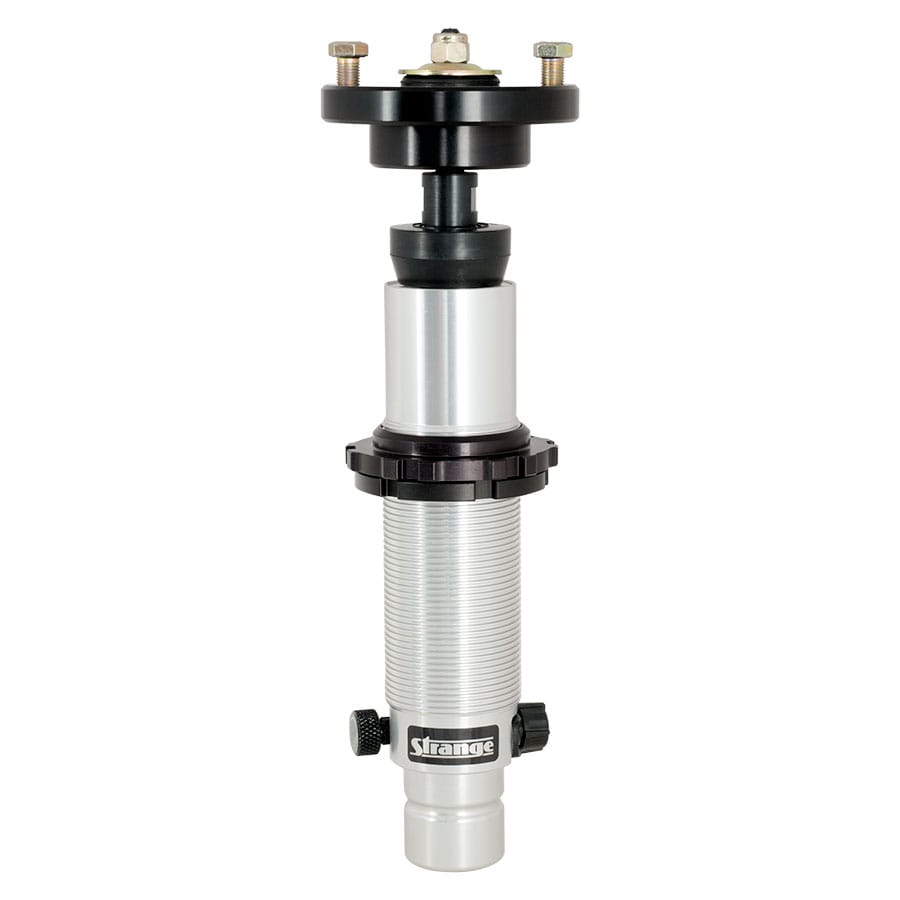

Double Adjustable Front Coil-Over Shock
For 1989-1991 CRX / 1989-2001 Civic
Sold as Each
Features
• Lightweight aluminum body
• Billet aluminum upper mount
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick adjustments for varying conditions
• Rotating knobs clockwise stiffens valving
• Coil-over design simplifies changes to ride height
• .563″ bumper height
• Ability to be rebuilt or revalved
• Accepts 10″ x 2.50″ I.D. spring

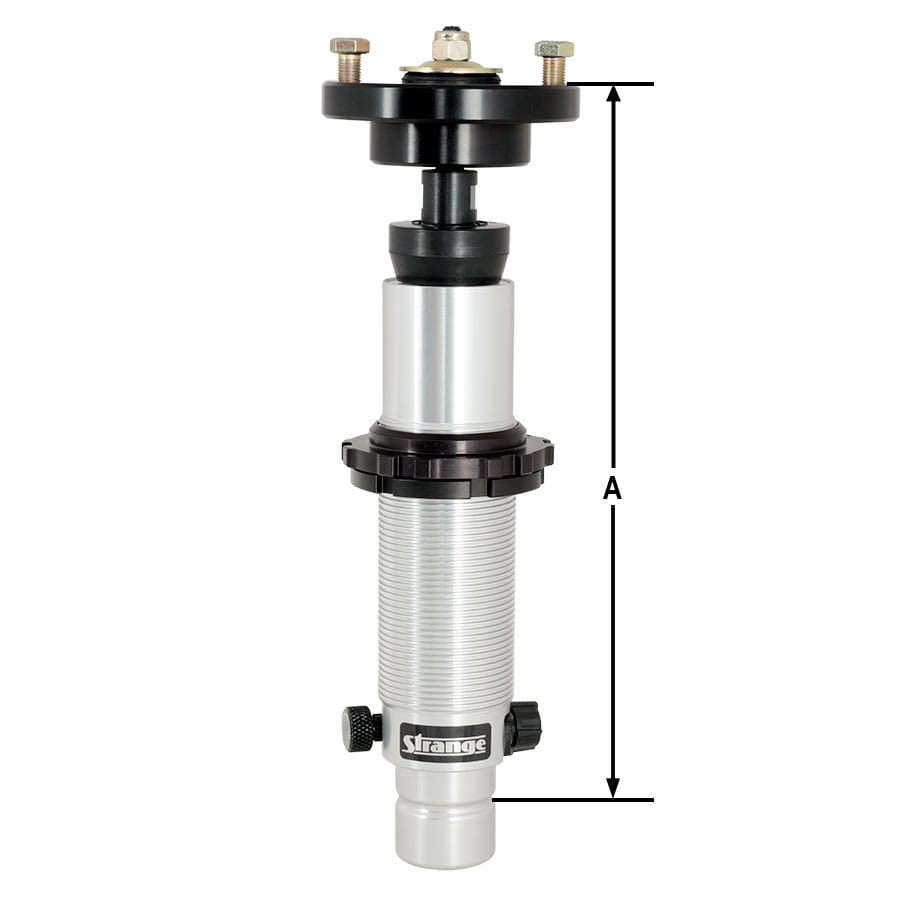

Dimension A
Without bumper
• 14.584″ extended
• 10.734″ compressed
• 3.850″ stroke
Dimension A
With bumper installed
• 14.584″ extended
• 11.297″ compressed
• 3.287″ stroke
Recommended Spring Rate
• 450-550 lbs
• Consult your chassis builder
Adjustments
Softer extension allows more weight transfer to the rear tires
Stiffer extension reduces weight transfer to the rear tires
Compression alters reaction to bumps in the track
