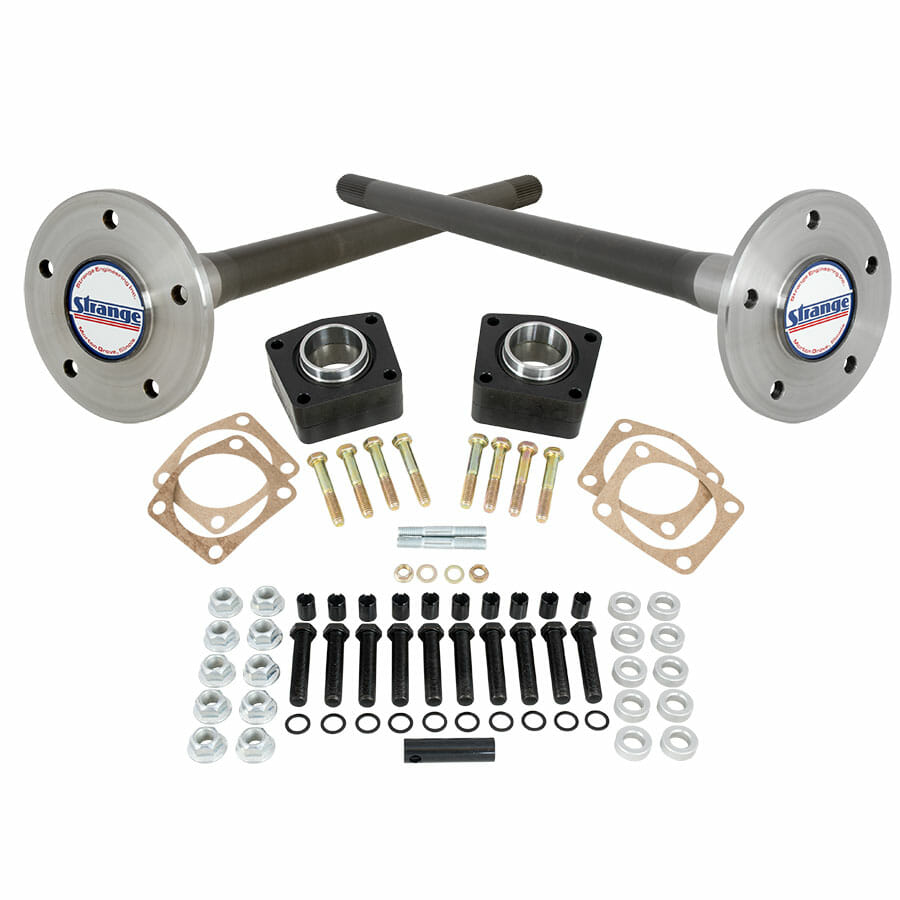

GM 10 & 12 Bolt Hybrid Axle Package With Special Eliminator kit & 5/8" Stud Kit

$699.00

Part Number: P1011GOT58

Originally designed for Oval track racing to eliminate axle and bearing failure
This allows for an axle & bearing combination not possible with any other housing end
Providing Drag Race axle torsional strength, while capable of handling heavy side loads

This is the ultimate package for multiple use vehicles
Street / Strip / Oval track

For Chevrolet applications using Small GM OEM housing ends and drum brakes
Or aftermarket disc brakes specifically designed for use with an eliminator kit

Application                 Available
8.2 10 bolt car        28 or 33 spline
8.5 10 bolt car        28, 30, or 33 spline
8.8 12 bolt car        30, 33, or 35 spline

33 Spline Fits Only Yukon Posi Units & Strange Spools
35 Spline Will Not Fit Mark Williams Spools

Package Includes
Modified Hy-Tuf Ultra Strength Axles – A1000 (Custom)
• Thicker axle flange with larger radii in all critical areas
• Bearing area increased to 1.7735″
• Tapered axle shaft resists bending loads
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material’s torsional strength
• Finish machined after heat treat to ensure accuracy
• Choice of 28, 30, 33, or 35 spline based on application
• Custom lengths available at no additional charge
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator Kit – A1100
• Billet aluminum inner and outer halves
• Timken® tapered 1.772″ ID unit bearings
• Locking collars
• Inner & outer seals
• Gaskets, & grade 8 bolts
• Two studs with locking nuts & washers- Maybe required to clear shock mounts

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Options
Install eliminator kit………………… A1008C
Install eliminator kit & studs….. A1008SC
Lightening holes in flange………… A1003

Other Packages
Hybrid
With 1/2″ studs…………………….. P1011GOT
With spool…………………… P2000GOT P2000GOT58

Pro Race
28, 30, 33, & 35 spline…………. P1011GDR58
With spool………………….. P2000GDR / P2000GDR58

  • Total

Description

GM 8.2, 8.5, & 12 blt Hybrid axles, special eliminator kit, & 5/8″ stud kit
