Application
GM G-Body Vehicles
Custom widths available at no additional charge

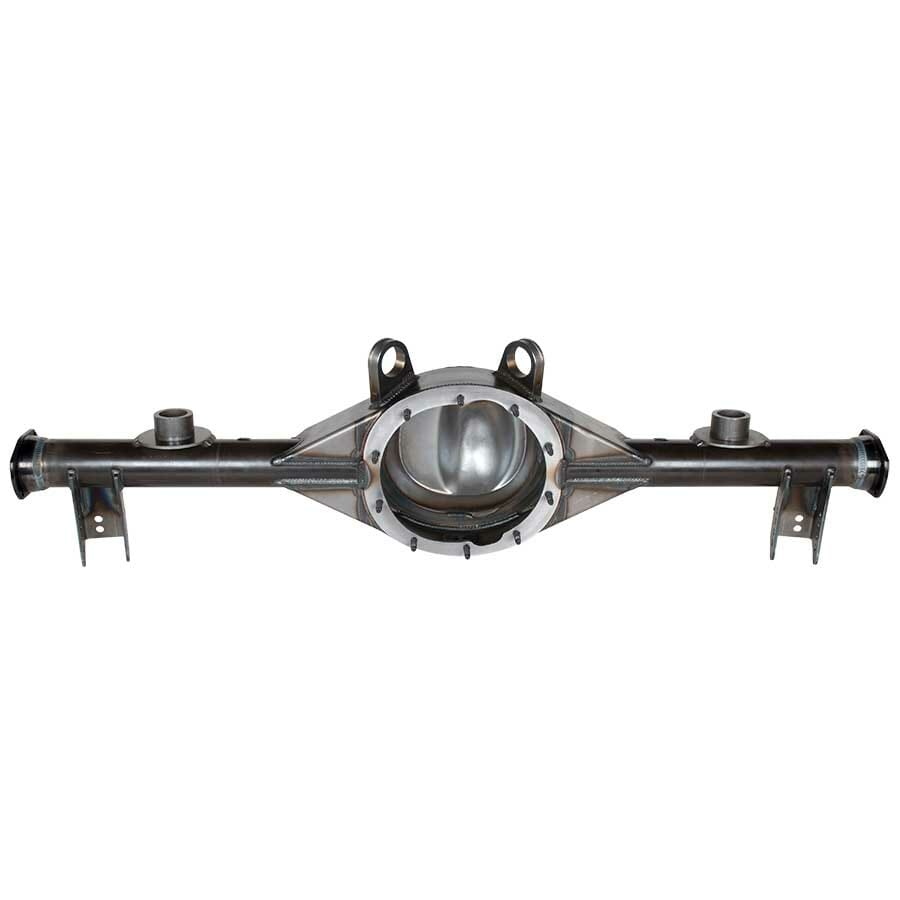

Center Housing – H1110
Constructed from .141″ mild steel
Heavy duty .282″ thick face plate
Internal gussets provide rigidity and support axle tubes
Slots allow exceptional weld contact of housing to tubes
Fill & Drain plugs – H1116 / H1117D
Facilitate fluid changes
Tubing – H1139
3″ OD .250″ wall mild steel tubing
Vent – H1112B
Prevents build-up of internal pressure
Ensures sealing integrity
Upper Control Arm Mounts
• Billet one piece heavy duty steel construction
• Will not flex like two piece plate type
Lower Control Arm Mounts & Spring Cups
• Multiple mounting hole locations provide adjustability
Housing Ends
• Forged steel
• Choice of Strange end
Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality
Related Components
Lube Locker® gasket… H1111S
Axle Packages
Alloy………. P3102 / P3104
Pro Race… P1007 / P1008
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
