Designed Specifically For Drag Racing
Pro II Front Brake Kit
1994-2004 Mustang with factory disc brake spindles
Reuses factory wheel hubs
Requires One Caliper Mounting Ear To Be Cut Off Each Spindle
Two Piece Floating Slotted Steel Rotors – B2794L / B2794R
• Isolates rotor from hat section
• Eliminates pulling forces that can result in cupped rotors
• Slots improve air flow, assist in warpage prevention and reduce weight

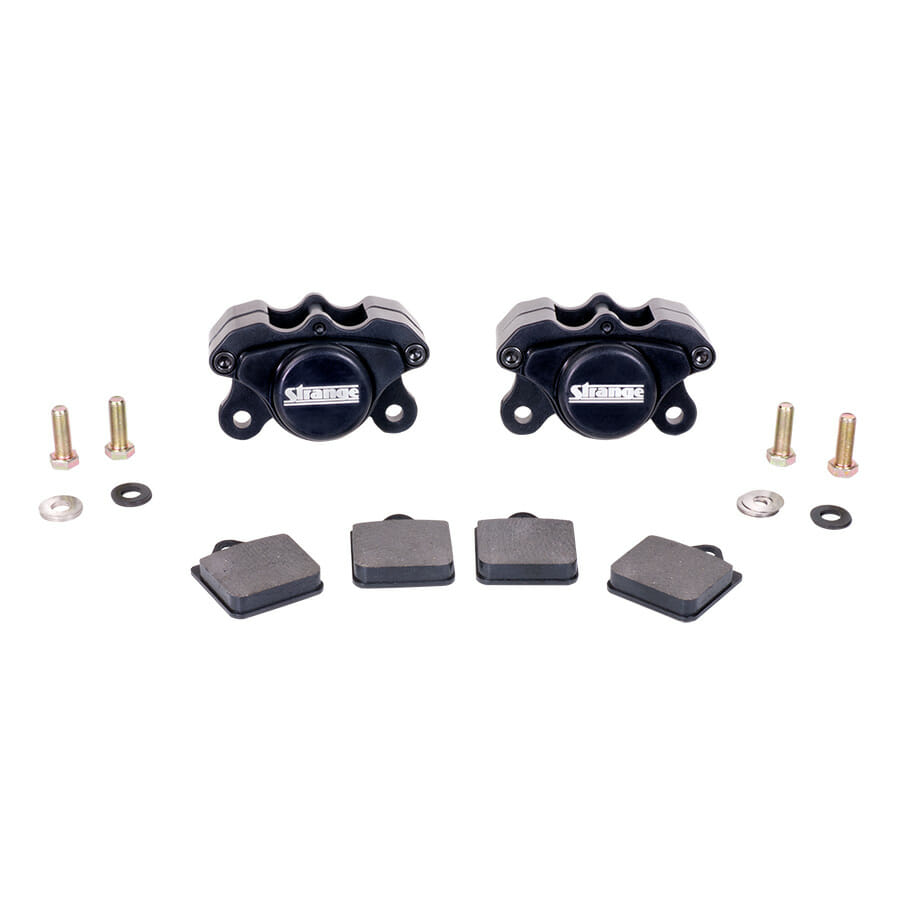

Two Piston Billet Caliper – B2560
• Rigid aluminum body reduces spread and flex
• Opposing pistons eliminate slider assemblies
• 1 3/4″ stainless steel pistons resist corrosion
Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance
DTC-30 Semi Metallic Brake Pads – B2510
• Best compound suited for front application
• Excellent cold holding capabilities
All Necessary Mounting Hardware
Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
