Alloy Axle Packages Are Optimized For Street & Track Use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

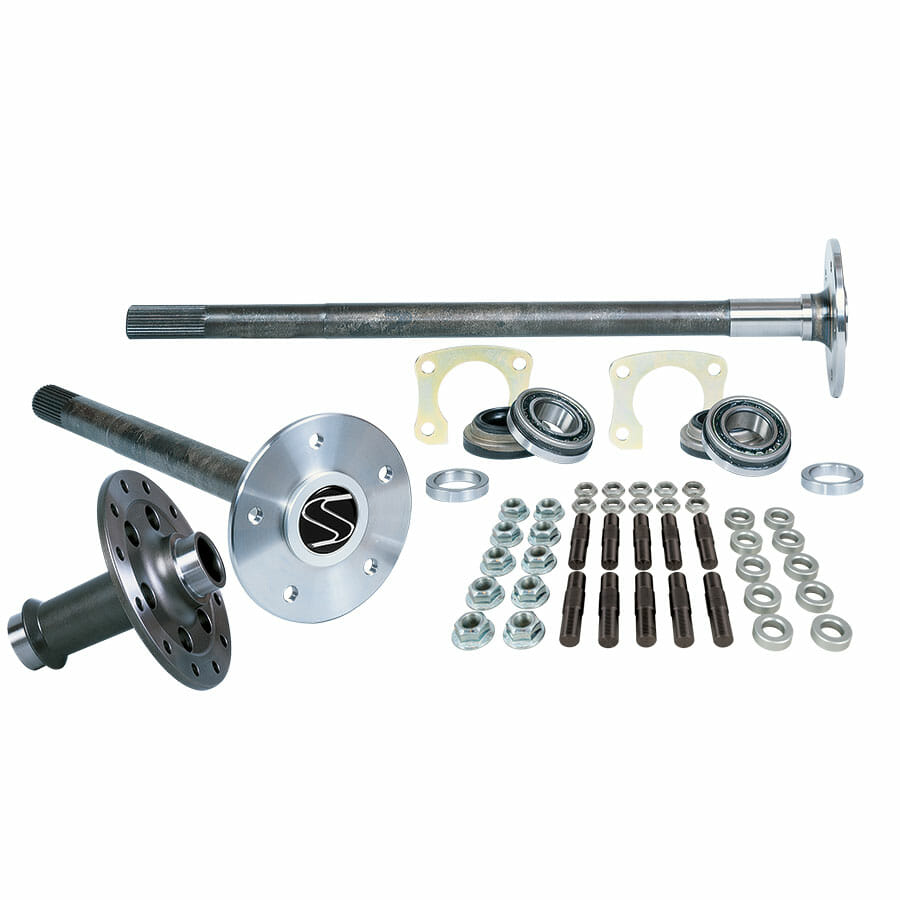

Alloy Axle & Spool Combinations
Chevy 8.5 10 bolt – 28 / 30
Chevy 12 bolt car – 30 / 35 *
Dana 60 – 35 *
Ford 8.8 – 31 / 35 *
Ford 9″ – 28 / 31 / 35 *
Mopar 8 3/4 – 30 / 35 *
57-64 Olds/Pontiac – 35 *
* 35 spline Alloy package – P350458S
All Chevy & Ford 8.8 Applications Require Replacement 3.150″ Housing Ends
Packages with C-clip Eliminator kit for OEM housing ends are shown near the bottom
Alloy Axles
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• Choice of 28 up to 31 spline
• Lengths up to 34 1/2″
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering
Choice of Axle Bearings Might Be Limited To Housing End Type
Mopar 2.875″ I.D. & Small Ford housing ends can only use sealed ball bearings
Timken® Tapered Unit Bearings – A1013
• Designed for use with 3.150″ housing end
• Best for side loading and high mileage
• Includes outer seals and locking collars
• May require new retainer plates if originally use a ball style bearing
Sealed Ball Bearings – A1021 / A1023 * / A1022 * / A1022OB *
• Low friction bearing
• Life reduced during prolonged use
• O.D. grooved for o-ring to eliminate inner axle seal
• Includes o-rings and locking collars
* These bearings include retainer plates
Retainer Plates – A1016 / A1018 / A1114 / H1147B
• For A1013 or A1021 bearings
• New plates ensure proper axle retention
Choice of 5/8″-18 Stud Kit
Bolt Style – A1027 / A1027L / A1027S
• 5/8″-18 x 3″ Grade 8 fully threaded bolts
• Length is measured from underneath the hex of the stud
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts
Shank Style – A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
• 5/8″-18 chrome moly stud available in six different shank lengths
• Width choice of anti-marring/spacer washers
• Includes thin head self locking inner nuts & flanged lug nuts
Lightweight Steel Spool
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering
See Rear End Application For More Spool Information
Options
Install axle bearings – A1008R
Access hole or extra bolt circle – A1004
Street / Track Axle & Spool Packages With C-Clip Eliminator Kit
OEM Chevy 8.2 car in 33 spline – P2000GOT58
OEM Chevy 8.5 car in 28, 30 or 33 spline – P2000GOT58
OEM Chevy 12 Bolt car in 30, 33 or 35 spline – P2000GOT58
OEM Mustang 8.8 in 35 spline – P3509F8658S / P3509F9458S / P3509F0558S
Pro Race Axle & Spool Packages
With bearings, retainer plates & studs – P200558
