Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing
Alloy Applications With Spline & Spool Available
Chevy 8.2 10 bolt…… 33 *
Chevy 8.5 10 bolt…… 28 / 30 / 33 *
Chevy 12 bolt car…… 30 / 33 * / 35 **
Dana 60…………………. 35 **
Ford 8.8…………………. 31 / 33 * / 35 **
Ford 9″…………………… 28 / 31 / 35 **
Mopar 8 3/4…………… 30 / 35 **
57-64 Olds/Pontiac… 35 **
* 33 spline Alloy packages… See P3304S
** 35 spline Alloy packages… See P3504S
Notes For This Axle Package
All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

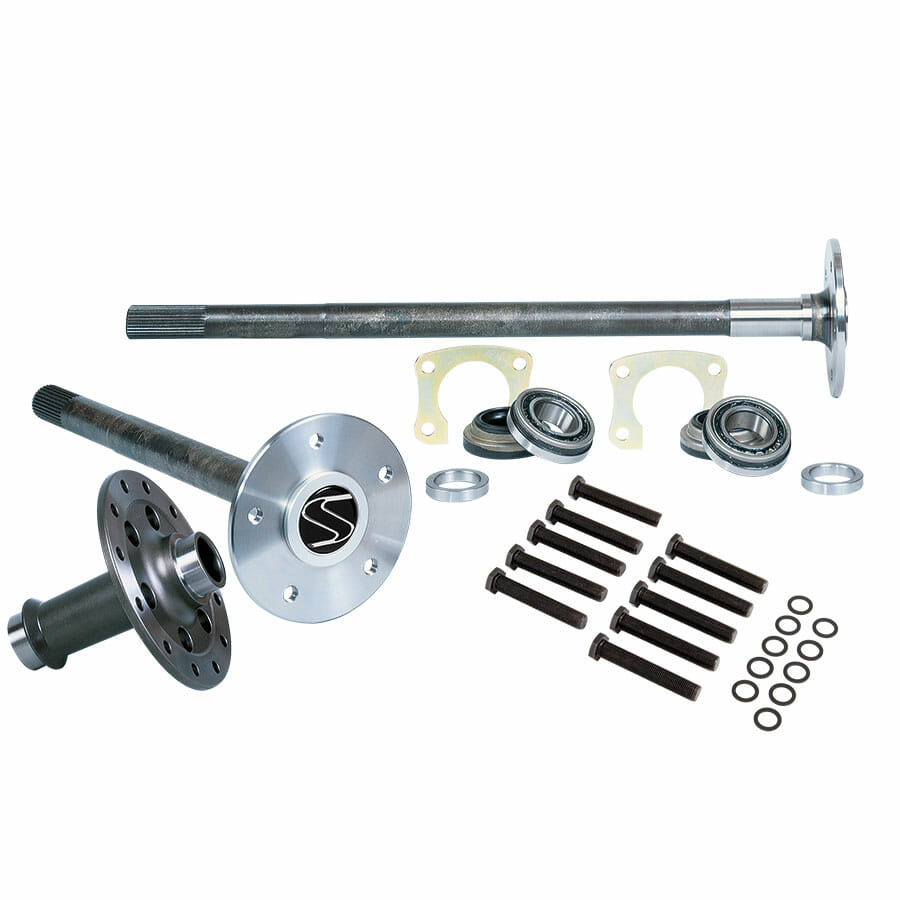

This Axle Package Includes:
Alloy Axles – A3100
– Forged from modified 1550 premium steel
– Majority of machining performed before heat treat to provide consistent hardness
– Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
– Finish machined after heat treat to ensure accuracy
– Choice of 28 up to 31 spline
– Lengths up to 34 1/2″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering
Choice of Axle Bearings (Maybe limited to housing end type)
Timken® Tapered Unit Bearings – A1013
– Designed for use with 3.150″ housing end
– Best for side loading and high mileage
– Includes outer seals and locking collars
Note- May require new retainer plates if originally use a ball style bearing
Sealed Ball Bearings – A1021 / A1023 * / A1022 * / A1022OB *
– Low friction bearing
– Life reduced during prolonged use
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars
* These bearings include retainer plates
Retainer Plates – A1016 / A1018 / A1114 / H1147B
– For A1013 or A1021 bearings
– New plates ensure proper axle retention
Choice of Press-in or Screw-in Wheel Studs
– Press-in 7/16″-20 or 1/2″-20 OEM style factory length studs – A3130 / A3121 / A3151
– Screw-in 1/2″-20 chrome moly studs in 2″ or 3″ long – A1025 / A1026
– Metric screw-in studs in M12-1.5 x 50mm – A1035
– Screw-in studs include .060″ hardened washers
– Length is measured from underneath the hex of the stud
Lightweight Steel Spool
– Forged from premium 8620 steel
– Surface hardened to Rc 45-48
– Lightened to maximize strength to weight
– Forged in the USA
– Designed and machined by Strange Engineering
Note- See your rear end application for more spool information
Options
Install axle bearings………………… See A1008R
Access hole or extra bolt circle… See A1004
Other 28-31 Spline Alloy Axle & Spool Packages
With 5/8″ studs……………………… See P310458S
Street / Track Axle & Spool Packages With C-Clip Eliminator Kit
OEM Chevy car ends in 30 or 33 spline………………. See P2000GOT
OEM Chevy car ends in 35 spline……………………….. See P3509G12S
OEM Ford 8.8 ends in 28 or 31 spline… See P3109F86S / P3109F94S / P3109F05S
OEM Ford 8.8 ends in 35 spline…………. See P3509F86S / P3509F94S / P3509F05S
Pro Race Axle & Spool Packages
With bearings, retainer plates & studs… See P2008
