Application
Construction of Ford 9″ Leaf Spring Rear End
Description
Strange HD Ford 9″ housing
Includes tubes & choice of leaf spring mounts – No housing ends
Use
Perfect base for creating Pro Touring floater housing
Information Required
Tube to tube width
Pinion offset
Leaf spring mounts

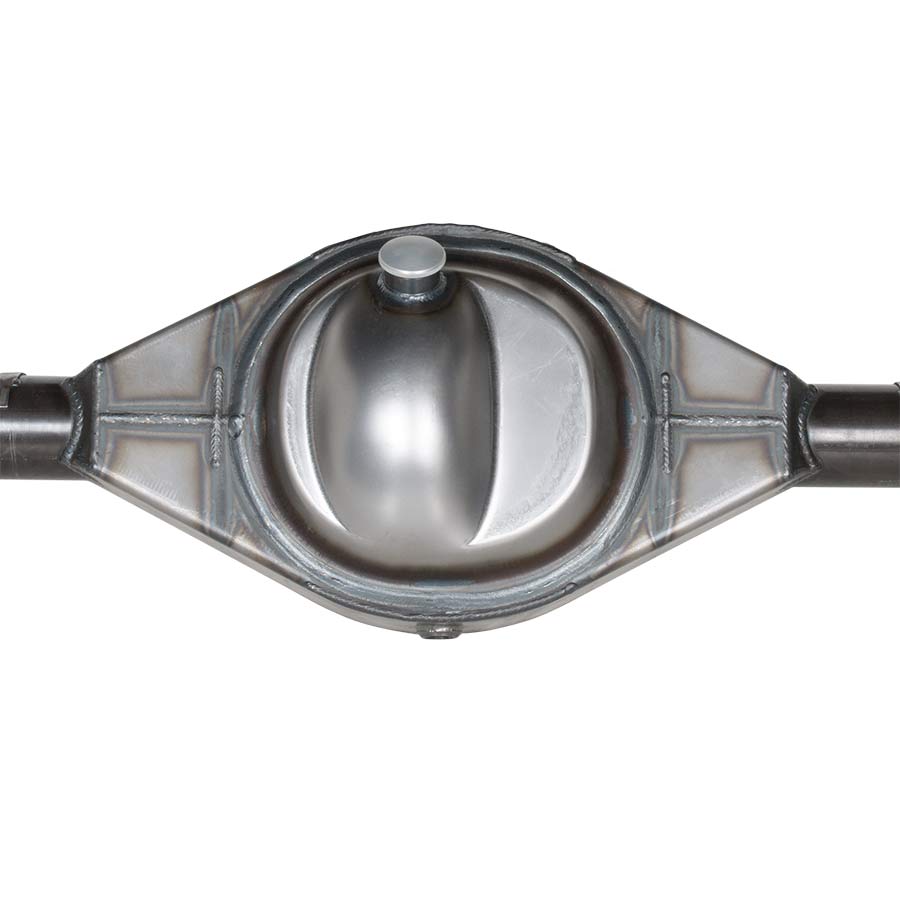

Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets
Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear
Housing Tubing – H1139
• DOM 1026 steel
• 3″ OD x .250″ wall thickness
Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

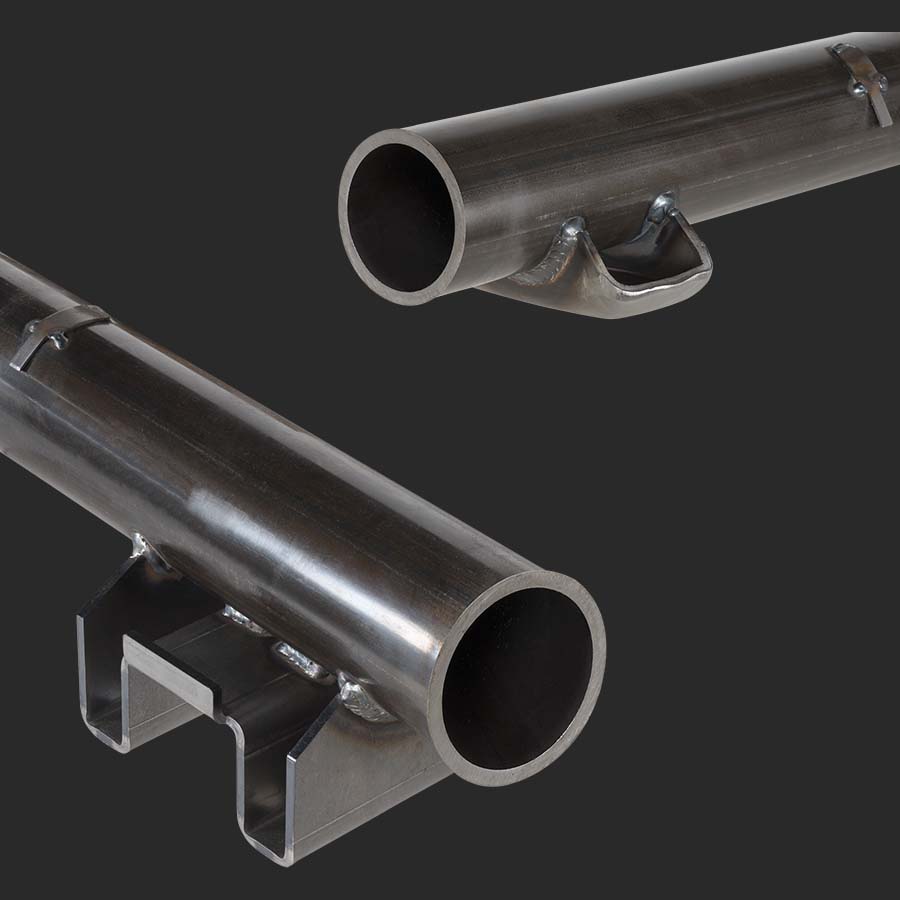

Choice Of Leaf Spring Mounts
• Single leaf, Multi-leaf, Early Chevy, & Mopar / Universal
• Same price for OEM or custom locations
Note
Mopar / Universal mounts can be “boxed” for an additional charge
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity
Related Components
Lube Locker® gasket……. H1111S
Pro Touring Floater kit…… F5010
Axle Packages
Alloy……………………….. P3102 / P3104
Pro Race…………………. P1007 / P1008
