Application
2005-2014 Mustang housing fabrication
Perfect base for Pro Touring rear end
Description

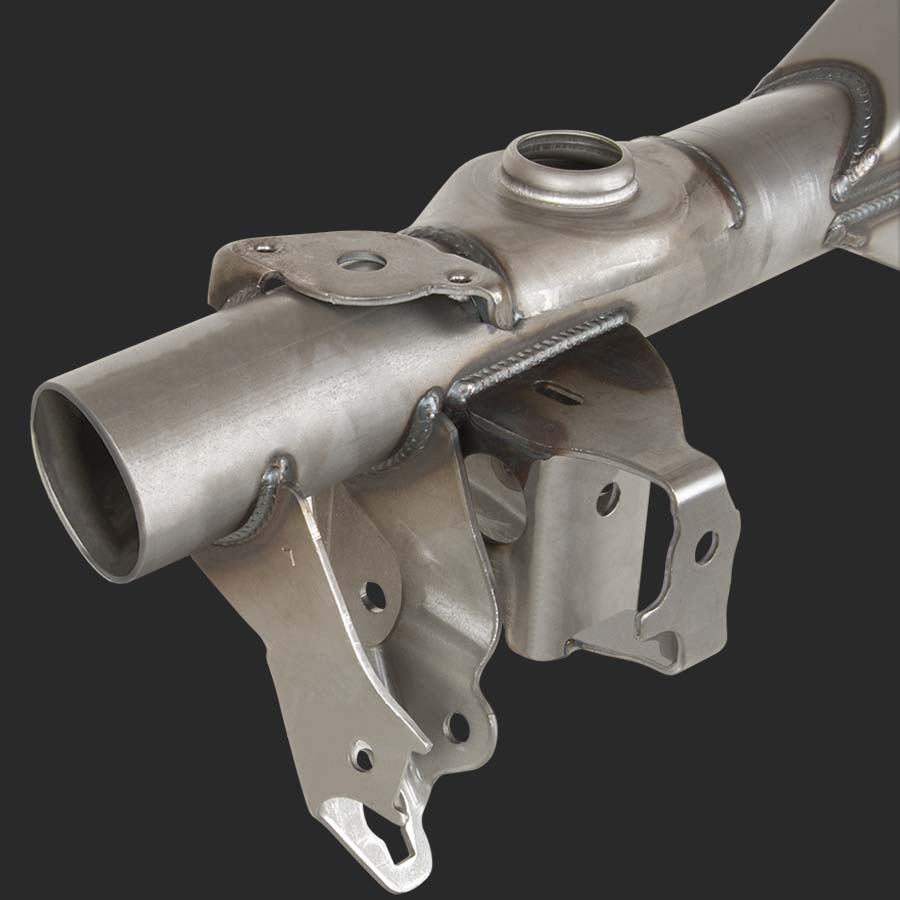

Strange HD Ford 9″ housing
With upper & lower control arm mounts – No housing ends
Custom widths available at no additional charge
Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used
Pinion offset is .125″ to passenger side
Information Required
Tube to tube width
Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets
* Modified for this application
Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear
Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness
2005-2014 Mustang Mounts
• Strange HD upper control arm mount
• Lower control arm mounts
• Spring mounts
• Shock mounts
• Panhard bar mount
• Bump stop mounts
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity
Related Components
Floater Kit
Pro Touring………… F5010
Housing Ends
05 Mustang……….. H1148
Late Big Ford……… H1137
Gasket
Lube Locker………. H1111S
