Application
Construction of 2005-2014 Mustang housing
Description
Strange HD Ford 9″ housing
Tubed with upper control arm mount & ends
Lower control arm mounts are not included
Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used
Ordering a housing in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed
Pinion offset is .125″ to passenger side
Information Required
Housing width
Type of housing ends
Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets
* Modified for this application
Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear
Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity
Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness
2005-2014 Upper Control Arm Mount
• Strange Heavy Duty

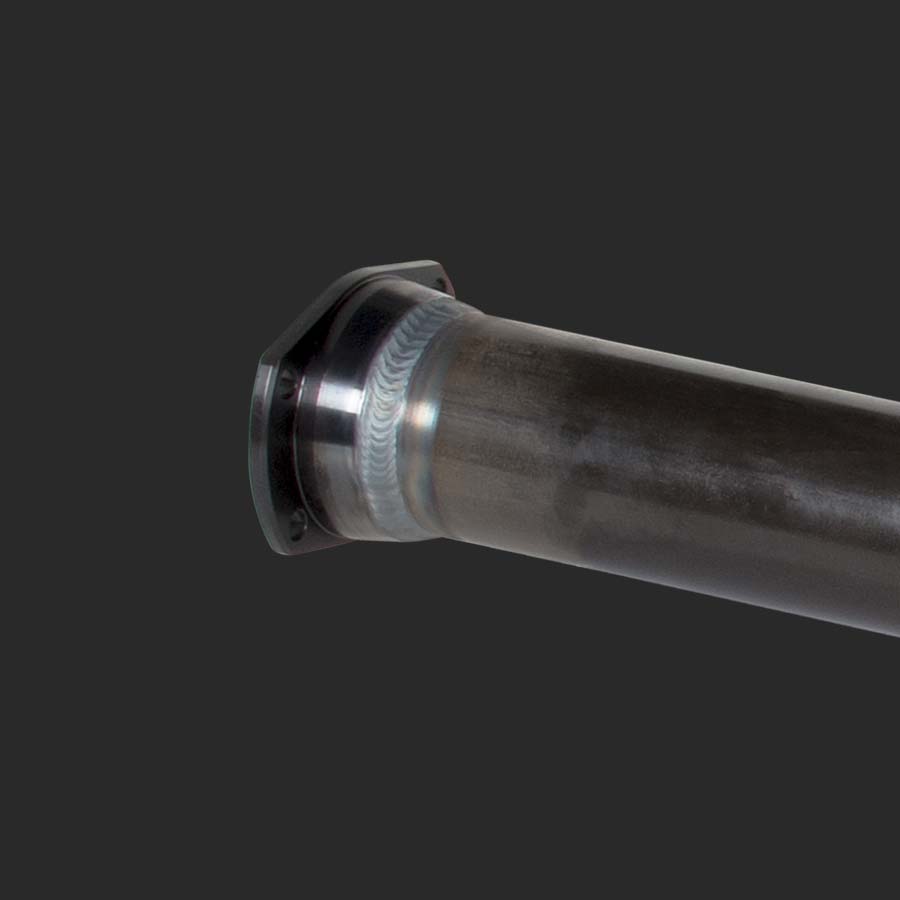

Choice of Housing Ends – H1148 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange housing ends are also available
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity
Related Components
Gasket
Lube Locker………. H1111S
Axle Packages
Alloy 35………… P3502 / P350258
Pro Race 35….. P1007 / P100758
Pro Race 40….. P1016 / P1014
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
