Application
Construction of 2005-2014 Mustang housing
Description
Strange HD Ford 9″ housing
Tubed with upper control arm mount
No lower control arm mounts or housing ends
Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used
Pinion offset is .125″ to passenger side
Information Required
Tube to tube width
Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets
* Modified for this application
Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear

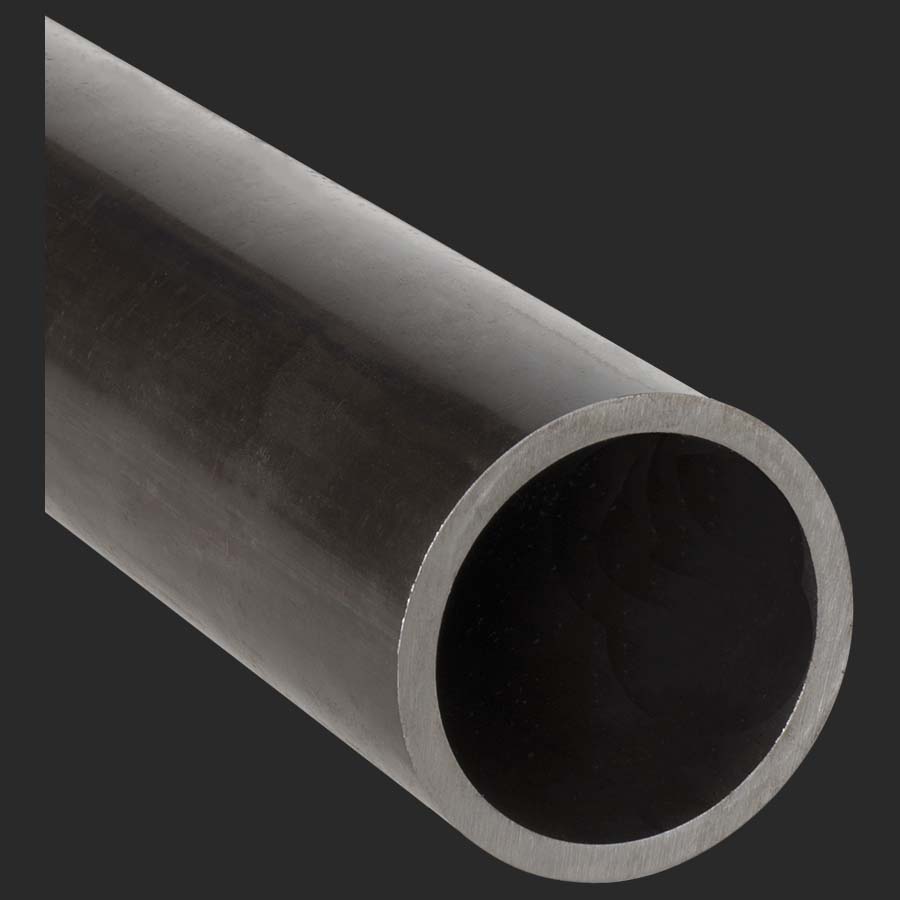

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness
Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity
Related Components
Housing Ends
Late Big Ford……… H1137
Big Ford……………… H1135
Mustang 8.8………. H1138
Gasket
Lube Locker………. H1111S
See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
