Application
Vehicles with front and rear manual disc brakes
Manual drum brakes if used with 10 lbs residual valves
Overview
Pressure is delivered equally out of both ports
Volume is greater from the port closest to the push rod
An adjustable proportioning valve is highly recommended

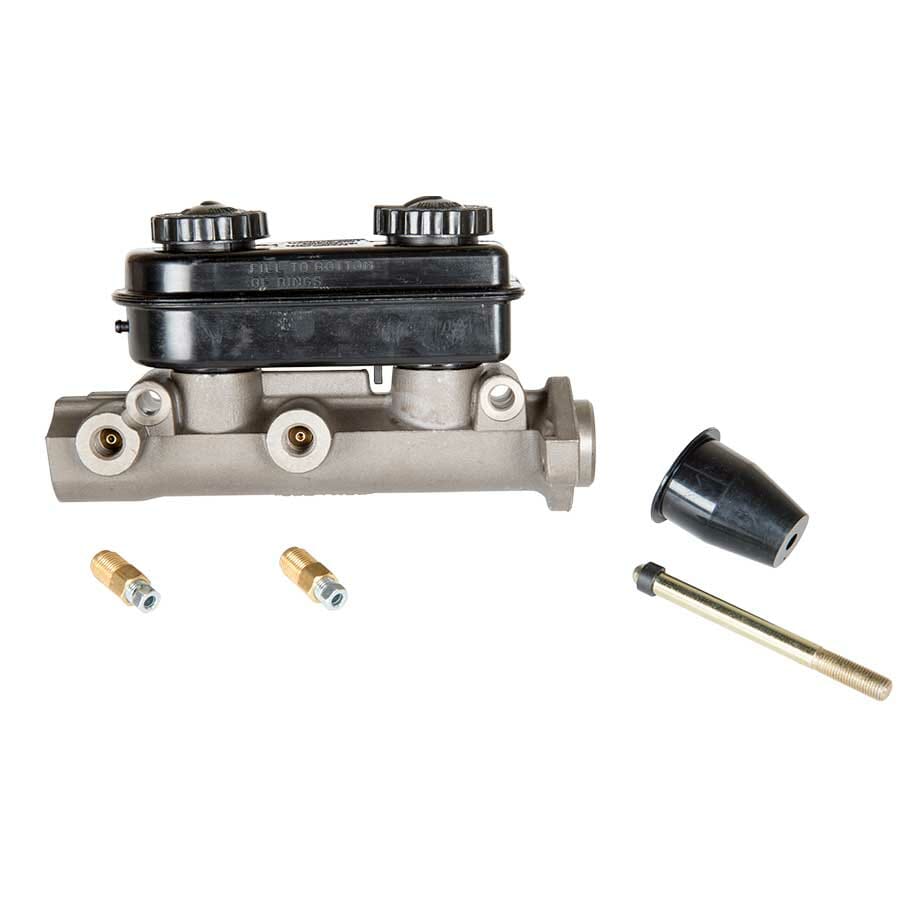

Aluminum Master Cylinder With Plastic Reservoir
• 1.032″ bore size
• Cast aluminum body anodized for corrosion resistance
• Flange for firewall mounting – 21/64″ holes on 3.187″ centers
• Provisions for side mounting – .390″ holes on 5 1/2″ centers
• 1/2″-20 brake line holes with brass inverted flare seats
• 3/8″-24 x 4.200″ long push-rod
• Push-rod locking grommet
• Dust boot to protect piston bore
• 1/2″-20 brass inverted flare adapters for 3/6″ brake line
• 3/16″ brake line nuts
Recommended Pedal Ratio
• 5.5 to 1
Check Front & Rear Brake Pressure Before Using Vehicle
Silicone brake fluid is not recommended
Street – Factory Front Disc with Rear Drum
• Plumb the calipers to the outlet closest to the push rod
• Plumb the wheel cylinders to the outlet furthest from the push rod
• The drum brake line will require a 10 lbs residual valve
Street – Factory Front and Rear Disc Brakes
• Plumb the front calipers to the outlet closest to the push rod
• Plumb the rear calipers to the outlet furthest from the push rod
Street – Aftermarket Disc Brakes
• Consult the manufacturer for their recommendations
Drag Racing – Strange One or Two Piston Front and Four Piston Rear
• Plumb the front calipers to the outlet furthest from the push rod
• Plumb the rear calipers to the outlet closest to the push rod
• Mounting below caliper level requires 2 lbs residual pressure valves
Drag Racing – Strange Four Piston Front and Four Piston Rear
• Requires larger bore master cylinder – B3359TA
Drag Racing – Other Manufacturers
• Consult the manufacturer for their recommendations
