Applications
Buick – Rear L/H Side
1971-1973 Centurion
1973-1981 Century
1971-1984 Electra
1982-1987 Grand National
1971-1985 Lesabre
1973-1987 Regal
1971-1978 Riviera
1964-1972 Skylark (Except Sport Wagon)
1964-1972 Special (Except Estate Wagon)
Chevrolet – Rear L/H Side
1971-1996 Caprice
1964-1983 Chevelle / Malibu
1968-1985 El Camino
1970-1988 Monte Carlo
Pontiac – Rear L/H Side
1971-1986 Pontiac Bonneville
1971-1981 Catalina
1973-1980 Grand Am
1963-1964 Grand Prix
1969-1987 Grand Prix
1964-1973 GTO
1964-1979 Lemans / Tempest
1982-1983 Lemans / Tempest
Fits Stock OEM Housings
Note
For Strange 2011 & Newer Bolt-In Housings – See S5080L / S5080R
Description

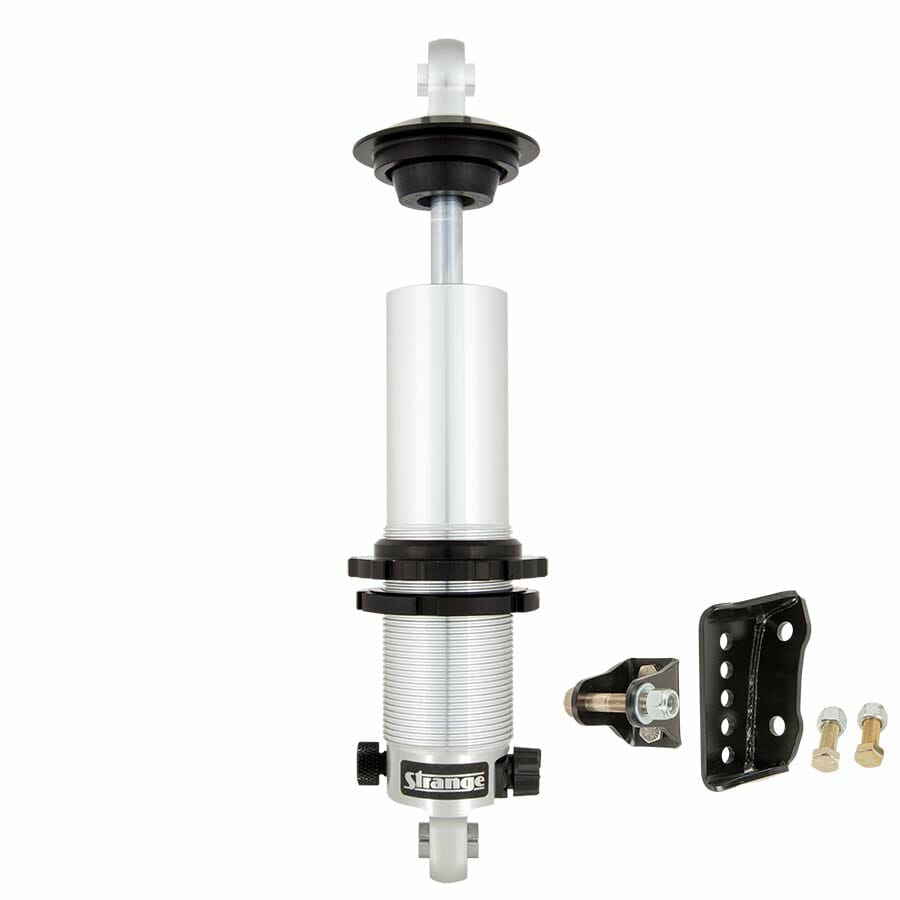

Rear Double Adjustable Coil-Over Shock
Left hand side
For Right Hand Side – See S5080RS
Coil-Over Benefits
• Compact & lightweight
• Allows adjustments to ride height
• Wide range of spring rates available
Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height
Performance Street / Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Rotating Knobs Clockwise Stiffens Valving
Dimension A
20.53″ Extended / 13.32 Compressed
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible external adjustment knob
• Allows quick changes for varying conditions
• Custom valving available upon request
• Ability to be rebuilt or revalved
Adjustable Lower Mount
• 6 positions provide 1.875″ of adjustment
• Allows ride height adjustment without altering spring seat position
• Change location of bump & rebound in relation to ride height
Includes
– Upper & lower spring seats
– Lower seat jam nut
– Upper t-bar with spherical bearing
– Lower spherical ball bearing
– Adjustable lower mounting bracket – Drilling required
– Mounting hardware
Spring – Sold Separately
Recommendation
14″ x 2.5″ ID spring
125 lbs
Consult your chassis builder for their suggestion
Related Components
Single adjustable……. S5280LS / S5280RS
Springs
14″ 125 lbs……………………… SP14125
Spring seat bearing kit…………… S1409
Adjuster wrench………………….. S1413
